Toyota Lexus RX300
1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States
Discontinued model
Data version 2003-10

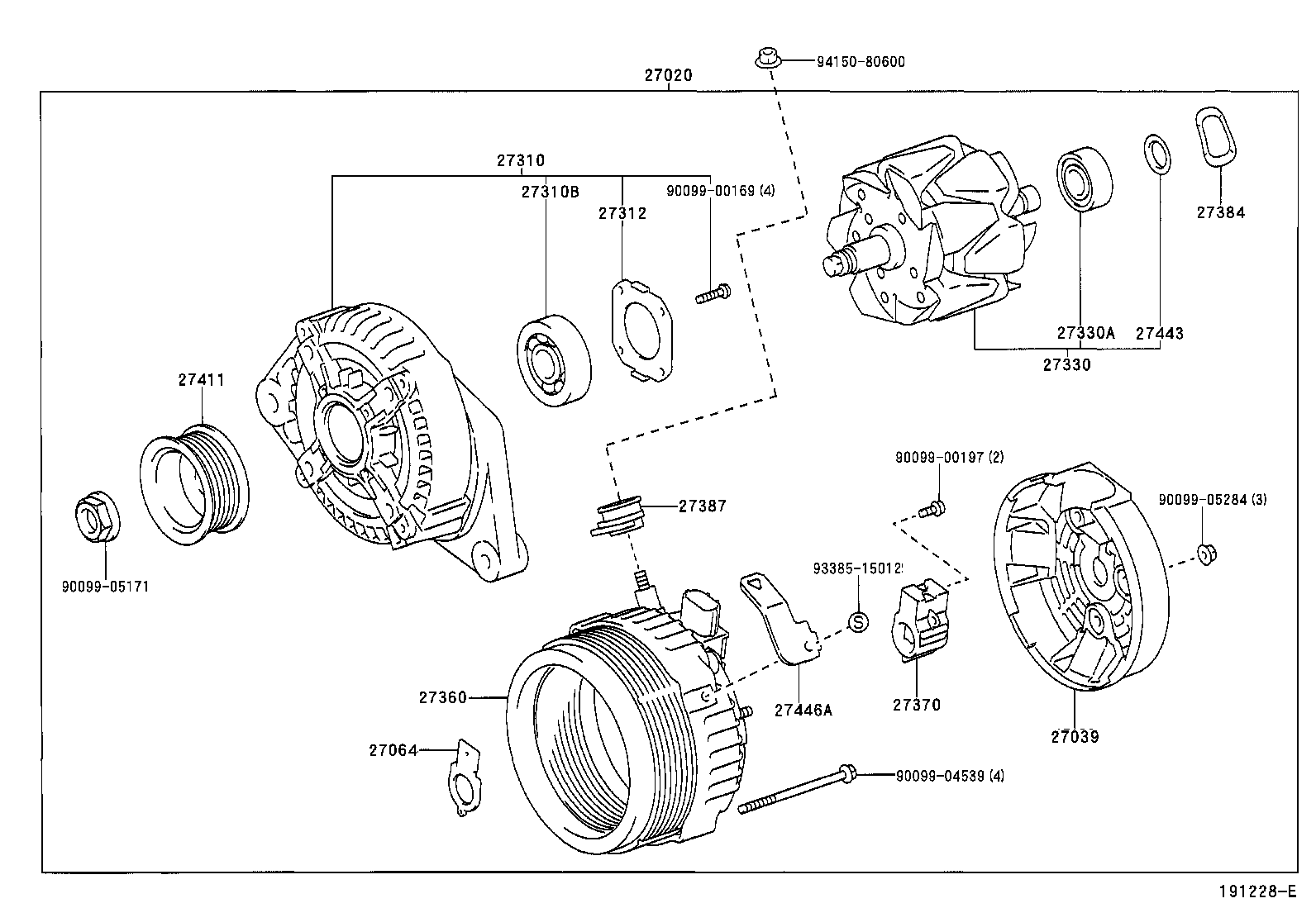

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 27020 — Alternator Assy | ||||
| 27060-20110 note |
Alternator Assy
1998-01 → 1998-07
ended
|
1MZFE MCU1# | — | |
| 27060-20140 note |
Alternator Assy
1998-07 → —
|
1MZFE MCU1# | — | |
| 27060-20190 note |
Alternator Assy
2000-07 → —
|
1MZFE MCU1# | — | |
| 27039 — Cover, Alternator Rear End | ||||
| 27039-20060 note |
Cover, Alternator Rear End
1998-01 → 2001-04
ended
|
1MZFE MCU1# | — | |
| 27039-20130 note |
Cover, Alternator Rear End
2000-07 → —
|
1MZFE MCU1# | — | |
| 27039-20160 note |
Cover, Alternator Rear End
2001-04 → —
|
1MZFE MCU1# | — | |
| 27064 — Seal, Alternator Plate | ||||
| 27064-42010 |
Seal, Alternator Plate
1998-01 → —
|
1MZFE MCU1# | — | |
| 27310 — Frame Assy, Drive End, Alternator | ||||
| 27310-20080 note |
Frame Assy, Drive End, Alternator
1998-01 → —
|
1MZFE MCU1# | — | |
| 27310-20130 note |
Frame Assy, Drive End, Alternator
2000-07 → —
|
1MZFE MCU1# | — | |
| 27310B — Bearing(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10142 note |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
2000-07 → —
|
1MZFE MCU1# | — | |
| 90099-10192 note |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
1998-01 → —
|
1MZFE MCU1# | — | |
| 27312 — Plate, Retainer | ||||
| 27312-42010 note |
Plate, Retainer
1998-01 → —
|
1MZFE MCU1# | — | |
| 27312-72100 note |
Plate, Retainer
2000-07 → —
|
1MZFE MCU1# | — | |
| 27330 — Rotor Assy, Alternator | ||||
| 27330-20070 note |
Rotor Assy, Alternator
1998-01 → —
|
1MZFE MCU1# | — | |
| 27330-20130 note |
Rotor Assy, Alternator
2000-07 → —
|
1MZFE MCU1# | — | |
| 27330A — Bearing(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
Bearing(FOR ALTERNATOR ROTOR)
1998-01 → —
|
1MZFE MCU1# | — | |
| 27360 — Coil Assy, Alternator | ||||
| 27360-20150 |
Coil Assy, Alternator
2000-07 → —
|
1MZFE MCU1# | — | |
| 27370 — Holder Assy, Alternator Brush | ||||
| 27370-20130 note |
Holder Assy, Alternator Brush
2000-07 → —
|
1MZFE MCU1# | — | |
| 27370-75060 note |
Holder Assy, Alternator Brush
1998-01 → —
|
1MZFE MCU1# | — | |
| 27384 — Washer | ||||
| 27384-50030 |
Washer
1998-01 → —
|
1MZFE MCU1# | — | |
| 27387 — Insulator, Terminal | ||||
| 27387-20130 note |
Insulator, Terminal
2000-07 → —
|
1MZFE MCU1# | — | |
| 27387-42021 note |
Insulator, Terminal
1998-01 → —
|
1MZFE MCU1# | — | |
| 27411 — Pulley, Alternator | ||||
| 27411-20020 |
Pulley, Alternator
1998-01 → 1998-07
ended
|
1MZFE MCU1# | — | |
| 27411-46080 |
Pulley, Alternator
1998-07 → —
|
1MZFE MCU1# | — | |
| 27443 — Cover, Alternator Bearing | ||||
| 27443-63020 |
Cover, Alternator Bearing
1998-01 → —
|
1MZFE MCU1# | — | |
| 27446A — Clamp | ||||
| 27446-20150 |
Clamp
2000-07 → —
|
1MZFE MCU1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
