Toyota Lexus RX300
1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States
Discontinued model
Data version 2003-10
Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.

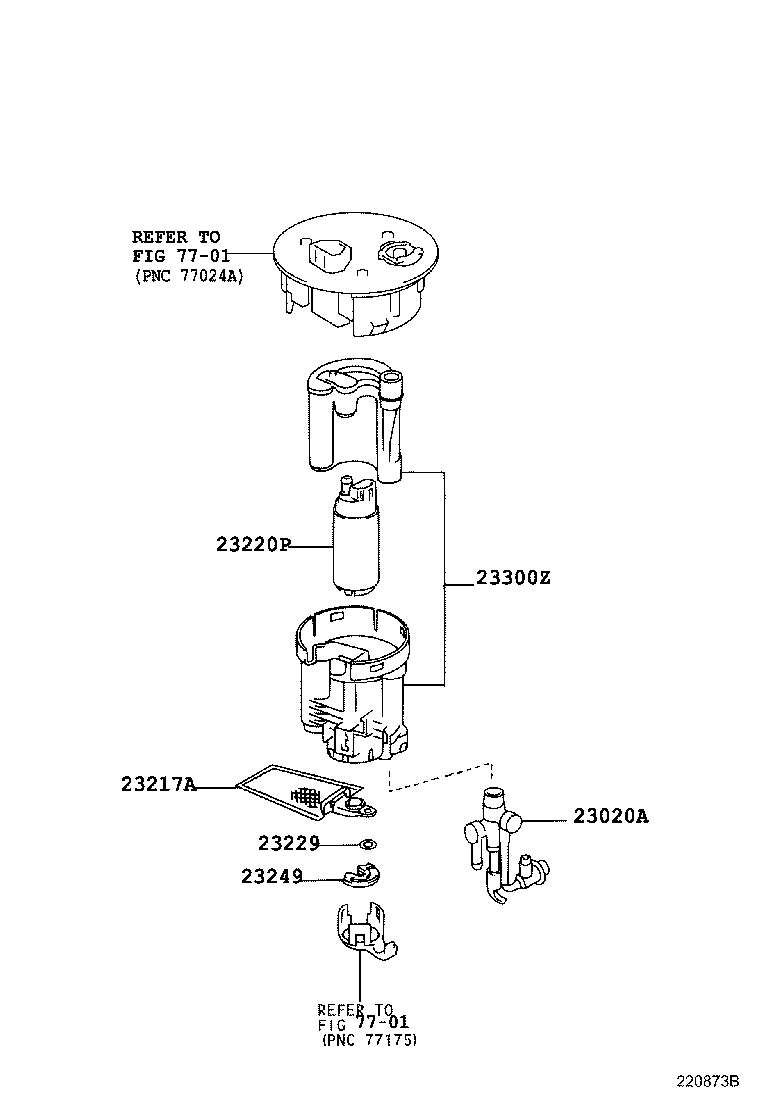

| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 23020A — Regulator Assy, Fuel Pressure W/Jet Pump | ||||
| 23020-70010 |
Regulator Assy, Fuel Pressure W/Jet Pump
2000-05 → —
|
1MZFE MCU1# | — | |
| 23020-74010 |
Regulator Assy, Fuel Pressure W/Jet Pump
1998-01 → 2000-05
ended
|
1MZFE MCU1# | — | |
| 23217A — Filter, Fuel Pump | ||||
| 23217-76040 |
Filter, Fuel Pump
1998-01 → —
|
1MZFE MCU1# | — | |
| 23220P — Pump Assy, Fuel | ||||
| 23221-20030 |
Pump Assy, Fuel
2000-05 → —
|
1MZFE MCU1# | — | |
| 23221-74090 |
Pump Assy, Fuel
1998-01 → 2000-05
ended
|
1MZFE MCU1# | — | |
| 23229 — Clip(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
Clip(FOR FUEL PUMP FILTER)
1998-01 → —
|
1MZFE MCU1# | — | |
| 23249 — Rubber, Cushion(FOR FUEL PUMP) | ||||
| 23249-46180 |
Rubber, Cushion(FOR FUEL PUMP)
2000-05 → —
|
1MZFE MCU1# | — | |
| 23249-74610 |
Rubber, Cushion(FOR FUEL PUMP)
1998-01 → 2000-05
ended
|
1MZFE MCU1# | — | |
| 23300Z — Filter, Fuel(FOR FUEL TANK) | ||||
| 23300-21010 |
Filter, Fuel(FOR FUEL TANK)
2000-05 → —
|
1MZFE MCU1# | — | |
| 23300-74330 |
Filter, Fuel(FOR FUEL TANK)
1998-01 → 2000-05
ended
|
1MZFE MCU1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
