Toyota Lexus RX300
1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States
Discontinued model
Data version 2003-10

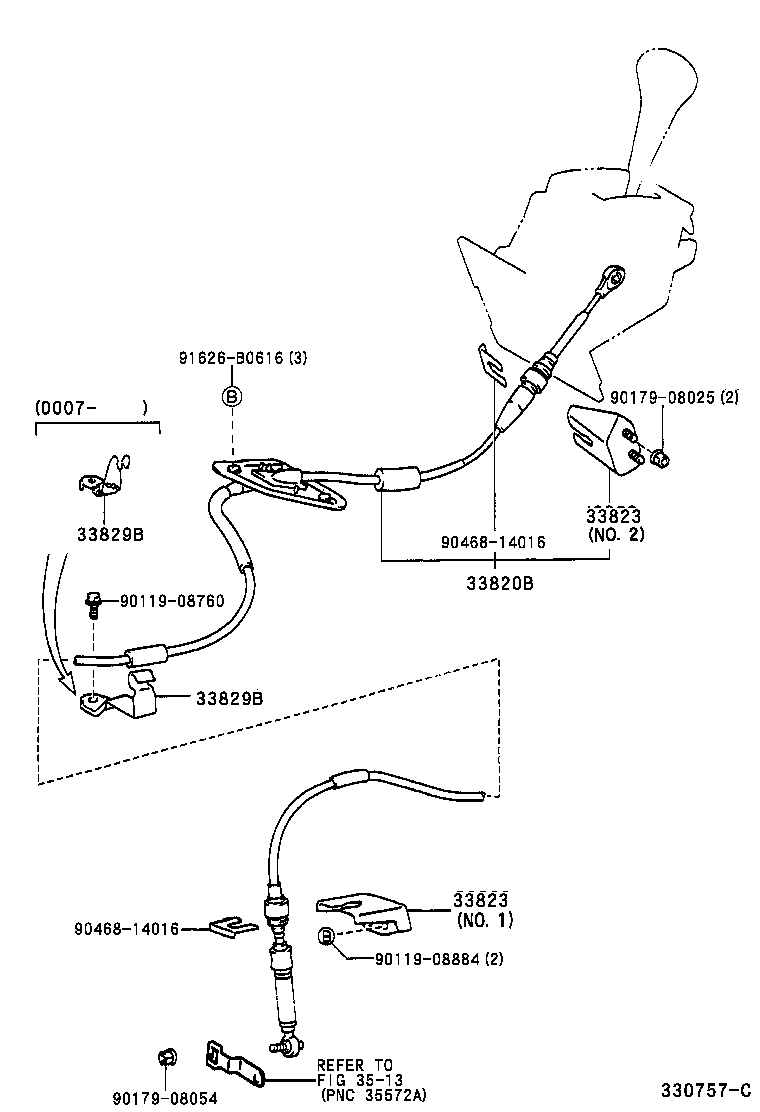

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 33820B — Cable Assy, Transmission Control | ||||
| 33820-48030 |
Cable Assy, Transmission Control
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 33820-48060 |
Cable Assy, Transmission Control
2000-07 → —
|
MCU1# | — | |
| 33823 — Bracket, Transmission Control Cable, NO.1 | ||||
| 33823-48010 note |
Bracket, Transmission Control Cable, NO.1
1998-01 → 2000-12
ended
|
MCU1# | — | |
| 33823-48020 note |
Bracket, Transmission Control Cable, NO.1
1998-01 → —
|
MCU1# | — | |
| 33823-48040 note |
Bracket, Transmission Control Cable, NO.1
2000-12 → —
|
MCU1# | — | |
| 33829B — Clamp, Transmission Control Cable | ||||
| 33826-48020 |
Clamp, Transmission Control Cable
2000-07 → —
|
MCU1# | — | |
| 33829-48020 |
Clamp, Transmission Control Cable
1998-01 → 2000-07
ended
|
MCU1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
