Toyota Lexus RX300
1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States
Discontinued model
Data version 2003-10

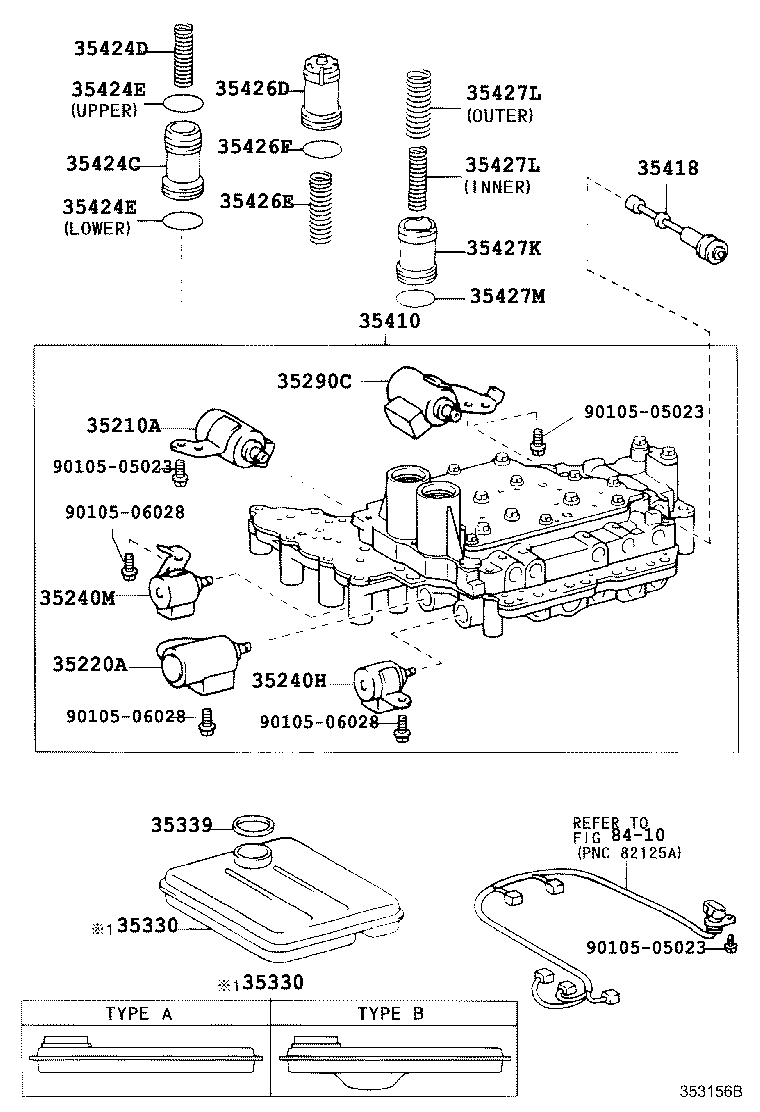

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 35210A — Valve, Solenoid(SL1) | ||||
| 35210-21010 |
Valve, Solenoid(SL1)
1998-01 → —
|
MCU1# | — | |
| 35220A — Valve, Solenoid(SL2) | ||||
| 35220-21010 |
Valve, Solenoid(SL2)
1998-01 → —
|
MCU1# | — | |
| 35240H — Valve, Solenoid(S4) | ||||
| 35230-21010 |
Valve, Solenoid(S4)
1998-01 → —
|
MCU1# | — | |
| 35240M — Valve, Solenoid(DSL) | ||||
| 35240-21010 |
Valve, Solenoid(DSL)
1998-01 → —
|
MCU1# | — | |
| 35290C — Valve, Solenoid(SLT) | ||||
| 35290-21010 |
Valve, Solenoid(SLT)
1998-01 → —
|
MCU1# | — | |
| 35330 — Strainer Assy, Valve Body Oil | ||||
| 35330-06010 note |
Strainer Assy, Valve Body Oil
2000-11 → —
|
MCU1# | — | |
| 35330-0W010 note |
Strainer Assy, Valve Body Oil
1998-10 → 2000-07
ended
|
MCU15 | — | |
| 35330-21011 note |
Strainer Assy, Valve Body Oil
1998-01 → 1998-04
ended
|
MCU1# | — | |
| 35330-21020 note |
Strainer Assy, Valve Body Oil
1998-04 → 1998-10
ended
|
MCU1# | — | |
| 35330-21020 note |
Strainer Assy, Valve Body Oil
1998-10 → 2000-11
ended
|
MCU10 | — | |
| 35339 — Gasket, Oil Strainer | ||||
| 90301-32010 |
Gasket, Oil Strainer
1998-01 → —
|
MCU1# | — | |
| 35410 — Body Assy, Transmission Valve | ||||
| 35410-48010 |
Body Assy, Transmission Valve
1998-01 → 1998-05
ended
|
MCU1# | — | |
| 35410-48011 |
Body Assy, Transmission Valve
1998-05 → —
|
MCU1# | — | |
| 35418 — Valve, Manual | ||||
| 35418-21010 |
Valve, Manual
1998-01 → 1998-04
ended
|
MCU1# | — | |
| 35418-21011 |
Valve, Manual
1998-04 → —
|
MCU1# | — | |
| 35424C — Piston, C-1 Accumulator | ||||
| 35424-21010 |
Piston, C-1 Accumulator
1998-01 → —
|
MCU1# | — | |
| 35424D — Spring, Compression (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-20151 |
Spring, Compression (FOR C-1 ACCUMULATOR PISTON)
1998-01 → —
|
MCU1# | — | |
| 35424E — Ring, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-27008 note |
Ring, O (FOR C-1 ACCUMULATOR PISTON)
1998-01 → —
|
MCU1# | — | |
| 90301-30007 note |
Ring, O (FOR C-1 ACCUMULATOR PISTON)
1998-01 → —
|
MCU1# | — | |
| 35426D — Piston, C-3 Accumulator | ||||
| 35406-21010 |
Piston, C-3 Accumulator
1998-01 → —
|
MCU1# | — | |
| 35426E — Spring, Compression (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90905-01035 |
Spring, Compression (FOR C-3 ACCUMULATOR PISTON)
1998-01 → —
|
MCU1# | — | |
| 35426F — Ring, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-30007 |
Ring, O (FOR C-3 ACCUMULATOR PISTON)
1998-01 → —
|
MCU1# | — | |
| 35427K — Piston, B-3 Accumulator | ||||
| 35427-21010 |
Piston, B-3 Accumulator
1998-01 → —
|
MCU1# | — | |
| 35427L — Spring, Compression (FOR B-3 ACCUMULATOR PISTON) | ||||
| 90501-22041 note |
Spring, Compression (FOR B-3 ACCUMULATOR PISTON)
1998-01 → —
|
MCU1# | — | |
| 90501-25053 note |
Spring, Compression (FOR B-3 ACCUMULATOR PISTON)
1998-01 → —
|
MCU1# | — | |
| 35427M — Ring, O (FOR B-3 ACCUMULATOR PISTON) | ||||
| 90301-28008 |
Ring, O (FOR B-3 ACCUMULATOR PISTON)
1998-01 → —
|
MCU1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
