Toyota Lexus RX300
1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States
Discontinued model
Data version 2003-10

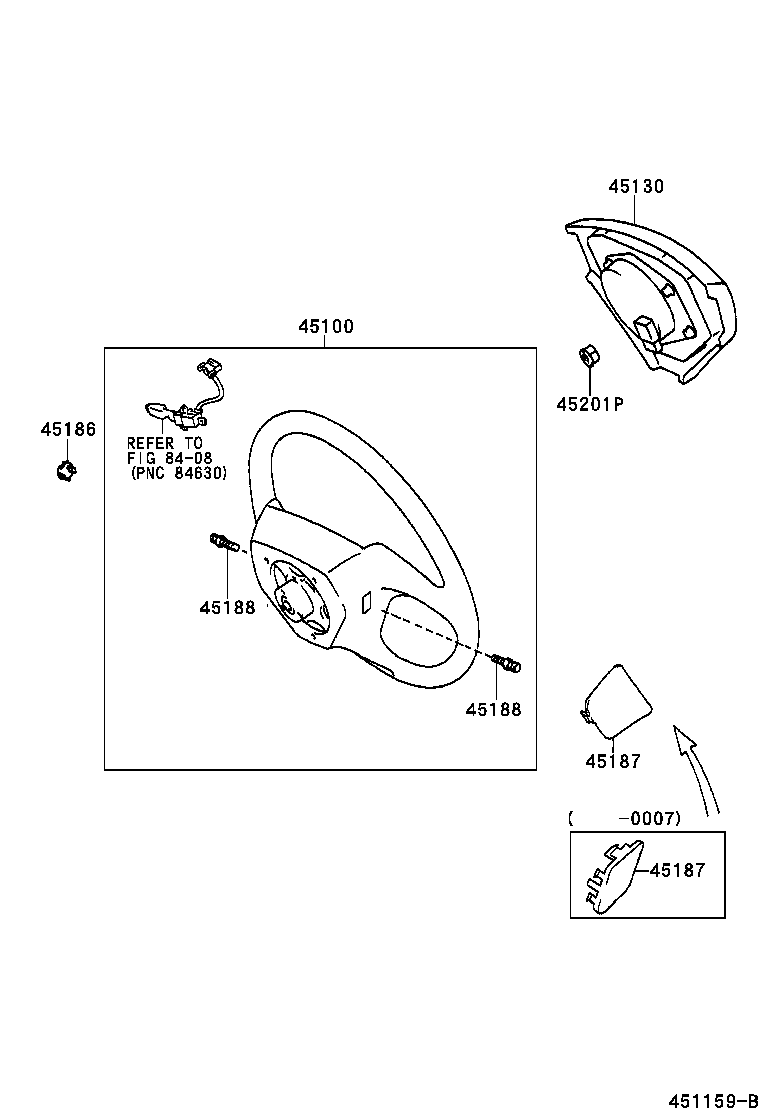

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 45100 — Wheel Assy, Steering | ||||
| 45100-48030-B0 note |
Wheel Assy, Steering
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 45100-48030-E0 note |
Wheel Assy, Steering
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 45100-48070-C0 note |
Wheel Assy, Steering
2000-07 → —
|
MCU1# | — | |
| 45100-48070-E0 note |
Wheel Assy, Steering
2000-07 → —
|
MCU1# | — | |
| 45100-48110-C0 note |
Wheel Assy, Steering
2000-07 → 2000-12
ended
|
MCU1# | — | |
| 45100-48110-E0 note |
Wheel Assy, Steering
2000-07 → 2000-12
ended
|
MCU1# | — | |
| 45100-48111-C0 note |
Wheel Assy, Steering
2000-12 → 2002-10
ended
|
MCU1# | — | |
| 45100-48111-E0 note |
Wheel Assy, Steering
2000-12 → 2002-10
ended
|
MCU1# | — | |
| 45100-48112-C0 note |
Wheel Assy, Steering
2002-10 → —
|
MCU1# | — | |
| 45100-48112-E0 note |
Wheel Assy, Steering
2002-10 → —
|
MCU1# | — | |
| 45100-48230-C0 note |
Wheel Assy, Steering
2001-03 → 2001-06
ended
|
MCU1# | — | |
| 45100-48260-E0 note |
Wheel Assy, Steering
2002-03 → 2002-07
ended
|
MCU1# | — | |
| 45100-48260-E0 note |
Wheel Assy, Steering
2002-07 → 2002-09
ended
|
MCU1# | — | |
| 45130 — Button Assy, Horn | ||||
| 45130-48020-B0 note |
Button Assy, Horn
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 45130-48020-E0 note |
Button Assy, Horn
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 45130-48040-C0 note |
Button Assy, Horn
2000-07 → —
|
MCU1# | — | |
| 45130-48040-E0 note |
Button Assy, Horn
2000-07 → —
|
MCU1# | — | |
| 45186 — Cover, Steering Wheel, Lower NO.2 | ||||
| 45186-44010-B2 note |
Cover, Steering Wheel, Lower NO.2
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 45186-44010-C0 note |
Cover, Steering Wheel, Lower NO.2
2000-07 → —
|
MCU1# | — | |
| 45186-44010-E4 note |
Cover, Steering Wheel, Lower NO.2
1998-01 → —
|
MCU1# | — | |
| 45187 — Cover, Steering Wheel, Lower NO.3 | ||||
| 45187-30060-B2 note |
Cover, Steering Wheel, Lower NO.3
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 45187-30060-E1 note |
Cover, Steering Wheel, Lower NO.3
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 45187-48010-C0 note |
Cover, Steering Wheel, Lower NO.3
2000-07 → —
|
MCU1# | — | |
| 45187-48010-E0 note |
Cover, Steering Wheel, Lower NO.3
2000-07 → —
|
MCU1# | — | |
| 45188 — Screw, Steering Wheel Pad Attaching | ||||
| 90148-60007 note |
Screw, Steering Wheel Pad Attaching
1998-01 → —
|
MCU1# | — | |
| 45201P — Nut, Steering Wheel Set | ||||
| 90179-12071 |
Nut, Steering Wheel Set
1998-01 → —
|
MCU1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
