Toyota Lexus RX300
1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States
Discontinued model
Data version 2003-10

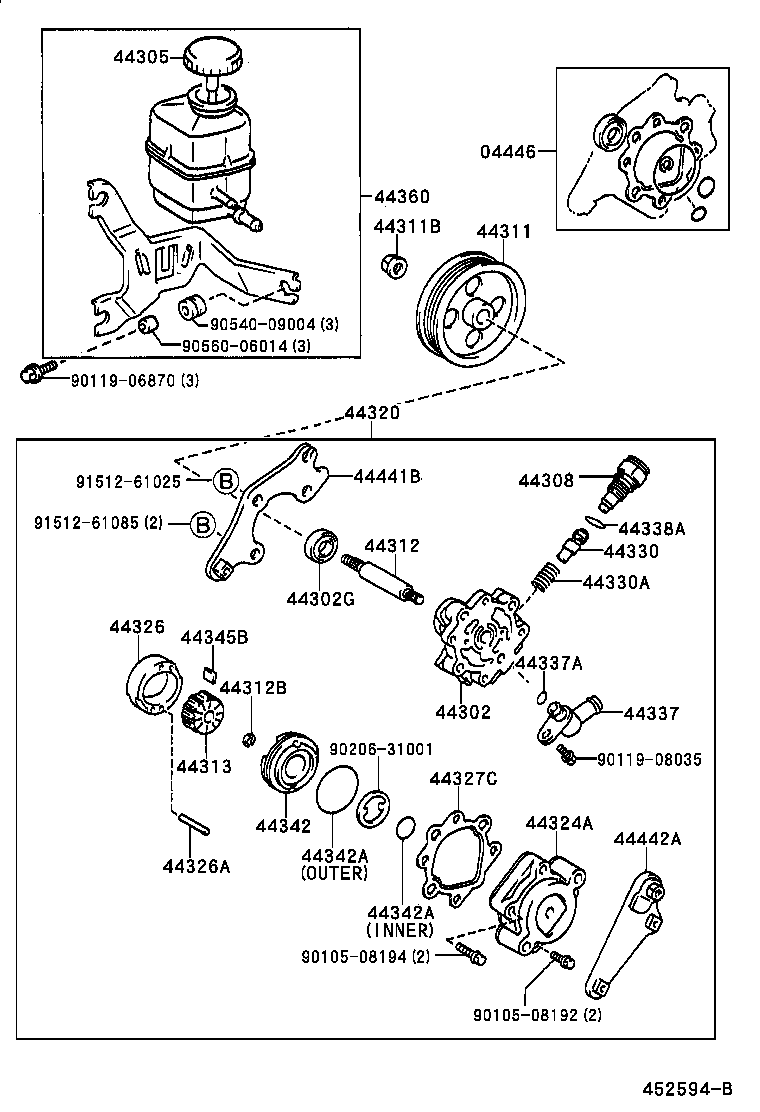

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04446 — Gasket Kit, Power Steering Pump | ||||
| 04446-34010 |
Gasket Kit, Power Steering Pump
1998-01 → —
|
MCU1# | — | |
| 44302 — Housing Sub-assy, Vane Pump, Front | ||||
| 44302-33020 |
Housing Sub-assy, Vane Pump, Front
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 44302G — Seal, Oil, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-18015 |
Seal, Oil, NO.2(FOR VANE PUMP HOUSING)
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 44305 — Cap Sub-assy, Vane Pump Oil Reservoir | ||||
| 44305-32020 |
Cap Sub-assy, Vane Pump Oil Reservoir
1998-01 → 2003-02
ended
|
MCU1# | — | |
| 44308 — Union Sub-assy, Pressure Port | ||||
| 44308-48010 |
Union Sub-assy, Pressure Port
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 44311 — Pulley, Vane Pump | ||||
| 44311-28110 |
Pulley, Vane Pump
2001-08 → —
|
MCU1# | — | |
| 44311-33020 |
Pulley, Vane Pump
1998-01 → 2001-08
ended
|
MCU1# | — | |
| 44311B — Nut(FOR VANE PUMP PULLEY) | ||||
| 90178-12003 |
Nut(FOR VANE PUMP PULLEY)
1998-05 → —
|
MCU1# | — | |
| 90179-12022 |
Nut(FOR VANE PUMP PULLEY)
1998-01 → 1998-05
ended
|
MCU1# | — | |
| 44312 — Shaft, Vane Pump | ||||
| 44312-32020 |
Shaft, Vane Pump
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 44312B — Ring, Snap, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
Ring, Snap, NO.1(FOR VANE PUMP SHAFT)
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 44313 — Rotor, Vane Pump | ||||
| 44313-26060 note |
Rotor, Vane Pump
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 44313-26070 note |
Rotor, Vane Pump
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 44313-26080 note |
Rotor, Vane Pump
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 44313-26090 note |
Rotor, Vane Pump
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 44313-26100 note |
Rotor, Vane Pump
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 44320 — Pump Assy, Vane | ||||
| 44320-48020 |
Pump Assy, Vane
1998-01 → —
|
MCU1# | — | |
| 44324A — Housing, Pump, Rear | ||||
| 44324-33030 |
Housing, Pump, Rear
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 44326 — Ring, Cam(FOR VANE PUMP) | ||||
| 44325-12270 note |
Ring, Cam(FOR VANE PUMP)
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 44325-12280 note |
Ring, Cam(FOR VANE PUMP)
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 44325-12290 note |
Ring, Cam(FOR VANE PUMP)
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 44325-12300 note |
Ring, Cam(FOR VANE PUMP)
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 44325-12310 note |
Ring, Cam(FOR VANE PUMP)
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 44326A — Pin, Straight(FOR VANE PUMP CAM RING) | ||||
| 90250-04071 note |
Pin, Straight(FOR VANE PUMP CAM RING)
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 44327C — Gasket, Vane Pump Housing | ||||
| 44327-26010 |
Gasket, Vane Pump Housing
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 44330 — Valve Assy, Flow Control | ||||
| 44330-26071 note |
Valve Assy, Flow Control
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 44330-26081 note |
Valve Assy, Flow Control
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 44330-26091 note |
Valve Assy, Flow Control
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 44330-26101 note |
Valve Assy, Flow Control
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 44330-26111 note |
Valve Assy, Flow Control
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 44330-26121 note |
Valve Assy, Flow Control
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 44330A — Spring, Compression(FOR FLOW CONTROL VALVE) | ||||
| 90501-13034 |
Spring, Compression(FOR FLOW CONTROL VALVE)
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 44337 — Union, Power Steering Suction Port | ||||
| 44337-33030 |
Union, Power Steering Suction Port
1998-01 → —
|
MCU1# | — | |
| 44337A — Ring, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-11016 |
Ring, O(FOR POWER STEERING SUCTION PORT)
1998-01 → —
|
MCU1# | — | |
| 44338A — Ring, O(FOR PRESSURE PORT UNION) | ||||
| 90301-19013 note |
Ring, O(FOR PRESSURE PORT UNION)
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 44342 — Plate, Vane Pump Side, Rear | ||||
| 44342-26020 |
Plate, Vane Pump Side, Rear
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 44342A — Ring, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-18007 note |
Ring, O(FOR VANE PUMP SIDE PLATE REAR)
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 90301-47001 note |
Ring, O(FOR VANE PUMP SIDE PLATE REAR)
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 44345B — Plate, Vane Pump | ||||
| 44345-26010 note |
Plate, Vane Pump
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 44345-26020 note |
Plate, Vane Pump
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 44345-26030 note |
Plate, Vane Pump
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 44345-26040 note |
Plate, Vane Pump
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 44345-26050 note |
Plate, Vane Pump
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 44360 — Reservoir Assy, Vane Pump Oil | ||||
| 44360-48010 |
Reservoir Assy, Vane Pump Oil
1998-01 → 2003-02
ended
|
MCU1# | — | |
| 44441B — Bracket, Pump, Front | ||||
| 44441-33022 |
Bracket, Pump, Front
1998-01 → —
|
MCU1# | — | |
| 44442A — Bracket, Vane Pump, Rear | ||||
| 44442-33021 |
Bracket, Vane Pump, Rear
1998-01 → —
|
MCU1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
