Toyota Lexus RX300
1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States
Discontinued model
Data version 2003-10

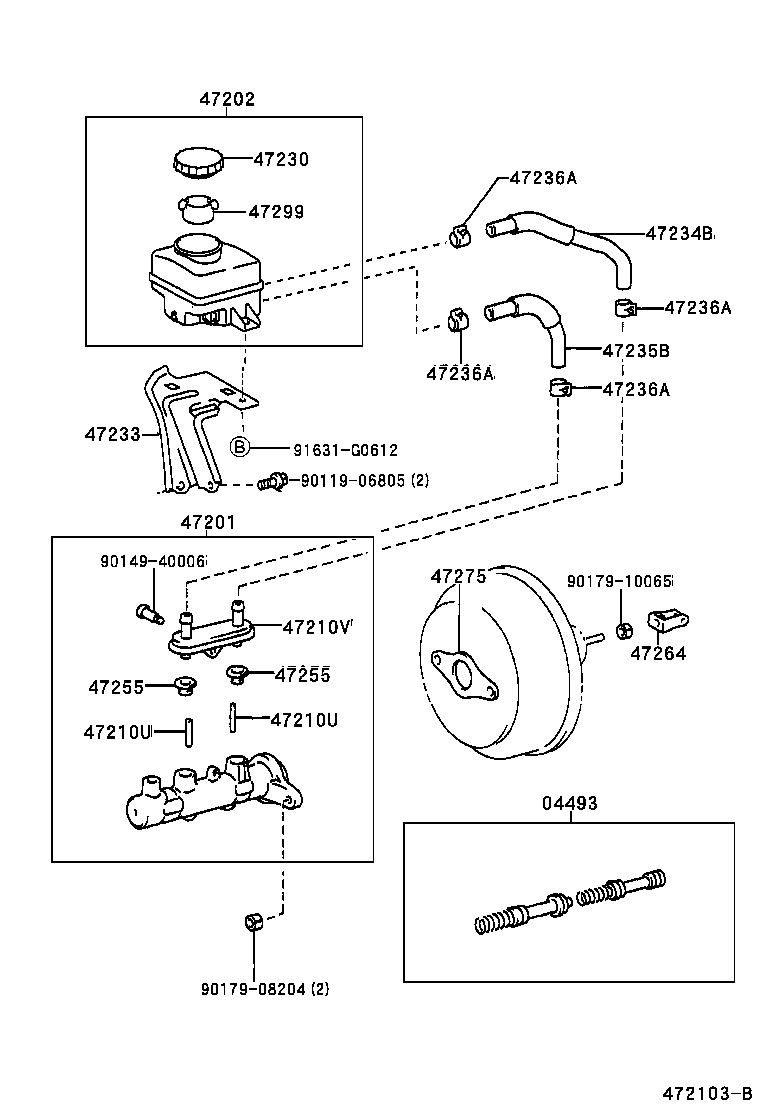

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04493 — Cylinder Kit, Brake Master | ||||
| 04493-33060 |
Cylinder Kit, Brake Master
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 04493-33070 note |
Cylinder Kit, Brake Master
1998-01 → 2000-07
ended
|
MCU10 | — | |
| 04493-48020 |
Cylinder Kit, Brake Master
2000-07 → 2002-08
ended
|
MCU1# | — | |
| 04493-48030 |
Cylinder Kit, Brake Master
2002-08 → —
|
MCU1# | — | |
| 47201 — Cylinder Sub-assy, Brake Master | ||||
| 47201-48030 |
Cylinder Sub-assy, Brake Master
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 47201-48040 note |
Cylinder Sub-assy, Brake Master
1998-01 → 2000-07
ended
|
MCU10 | — | |
| 47201-48070 |
Cylinder Sub-assy, Brake Master
2000-07 → 2002-08
ended
|
MCU1# | — | |
| 47201-48090 |
Cylinder Sub-assy, Brake Master
2002-08 → —
|
MCU1# | — | |
| 47202 — Reservoir Sub-assy, Brake Master Cylinder | ||||
| 47220-48010 |
Reservoir Sub-assy, Brake Master Cylinder
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 47220-48060 |
Reservoir Sub-assy, Brake Master Cylinder
2000-07 → —
|
MCU1# | — | |
| 47210U — Pin, Straight(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-14204 |
Pin, Straight(FOR BRAKE MASTER CYLINDER)
1998-01 → 2000-07
ended
|
MCU10 | — | |
| 90029-14204 |
Pin, Straight(FOR BRAKE MASTER CYLINDER)
2000-07 → —
|
MCU1# | — | |
| 47210V — Union(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-40011 |
Union(FOR BRAKE MASTER CYLINDER)
1998-01 → 2002-08
ended
|
MCU1# | — | |
| 90029-40407 |
Union(FOR BRAKE MASTER CYLINDER)
2002-08 → —
|
MCU1# | — | |
| 47230 — Cap Assy, Brake Master Cylinder Reservoir Filler | ||||
| 47230-24010 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2000-07 → —
|
MCU1# | — | |
| 84460-30040 |
Cap Assy, Brake Master Cylinder Reservoir Filler
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 47233 — Bracket, Reservoir | ||||
| 47233-48020 |
Bracket, Reservoir
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 47233-48040 |
Bracket, Reservoir
2000-07 → —
|
MCU1# | — | |
| 47234B — Tube, Reservoir, NO.1 | ||||
| 47234-48020 |
Tube, Reservoir, NO.1
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 47234-48040 |
Tube, Reservoir, NO.1
2000-07 → —
|
MCU1# | — | |
| 47235B — Tube, Brake Master Cyrinder Reservoir, NO.2 | ||||
| 47235-48020 |
Tube, Brake Master Cyrinder Reservoir, NO.2
1998-01 → —
|
MCU1# | — | |
| 47236A — Clip(FOR RESERVOIR TUBE) | ||||
| 90467-16003 |
Clip(FOR RESERVOIR TUBE)
1998-01 → —
|
MCU1# | — | |
| 47255 — Grommet, Master Cylinder Reservoir | ||||
| 31417-35010 |
Grommet, Master Cylinder Reservoir
2002-08 → —
|
MCU1# | — | |
| 47255-16010 |
Grommet, Master Cylinder Reservoir
1998-01 → 2002-08
ended
|
MCU1# | — | |
| 47264 — Clevis, Master Cylinder Push Rod | ||||
| 47264-30060 |
Clevis, Master Cylinder Push Rod
2002-08 → —
|
MCU1# | — | |
| 47264-48010 |
Clevis, Master Cylinder Push Rod
1998-01 → 2002-08
ended
|
MCU1# | — | |
| 47275 — Gasket, Brake Master Cylinder | ||||
| 47275-12020 |
Gasket, Brake Master Cylinder
1998-01 → 2002-08
ended
|
MCU1# | — | |
| 47299 — Strainer, Brake Master Cylinder Reservoir | ||||
| 47299-20060 |
Strainer, Brake Master Cylinder Reservoir
2000-07 → —
|
MCU1# | — | |
| 47299-32010 |
Strainer, Brake Master Cylinder Reservoir
1998-01 → 2000-07
ended
|
MCU1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
