Toyota Lexus RX300
1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States
Discontinued model
Data version 2003-10

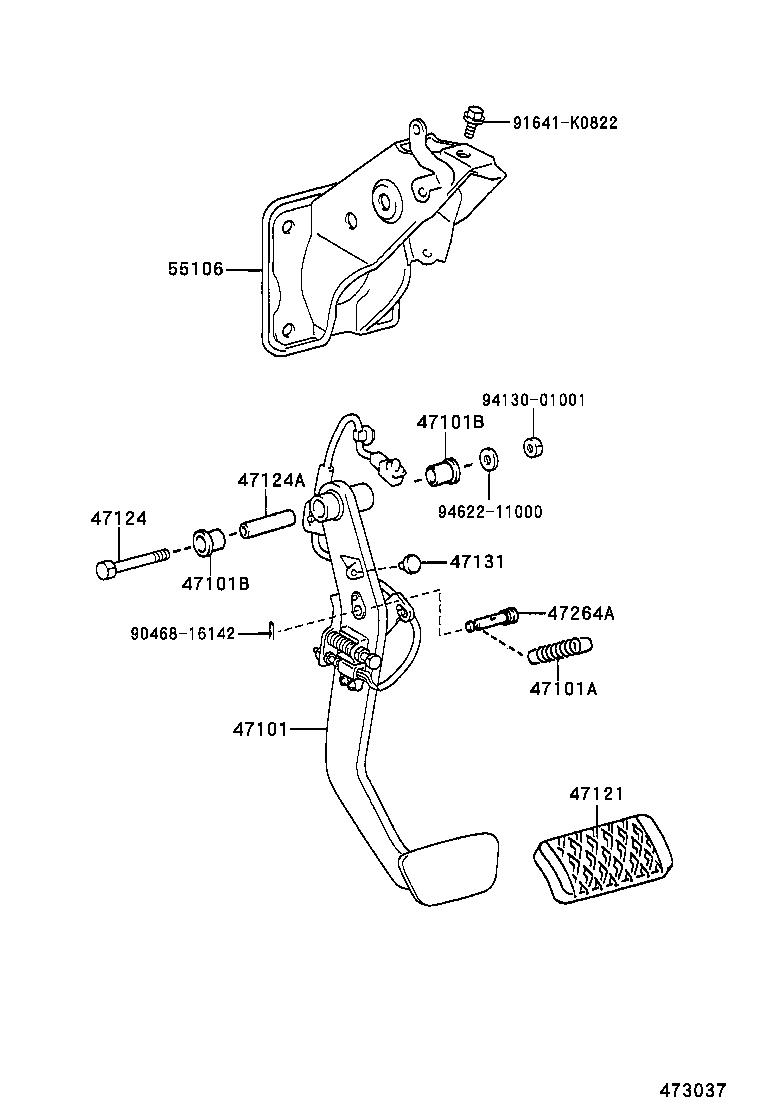

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 47101 — Pedal Sub-assy, Brake | ||||
| 47101-48020 |
Pedal Sub-assy, Brake
1998-01 → 2002-08
ended
|
MCU1# | — | |
| 47106-48030 |
Pedal Sub-assy, Brake
2002-08 → —
|
MCU1# | — | |
| 47101A — Spring(FOR BRAKE PEDAL RETURN) | ||||
| 90507-14024 |
Spring(FOR BRAKE PEDAL RETURN)
1998-01 → —
|
MCU1# | — | |
| 47101B — Bush(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
Bush(FOR BRAKE PEDAL)
1998-01 → —
|
MCU1# | — | |
| 47121 — Pad, Brake Pedal | ||||
| 47121-50010 |
Pad, Brake Pedal
1998-01 → 2000-11
ended
|
MCU1# | — | |
| 47121-50020 |
Pad, Brake Pedal
2000-11 → —
|
MCU1# | — | |
| 47124 — Shaft, Brake Pedal | ||||
| 90101-10015 |
Shaft, Brake Pedal
2000-05 → —
|
MCU1# | — | |
| 90101-10039 |
Shaft, Brake Pedal
1998-01 → 2000-05
ended
|
MCU1# | — | |
| 47124A — Collar(FOR BRAKE PEDAL SHAFT) | ||||
| 90387-10003 |
Collar(FOR BRAKE PEDAL SHAFT)
1998-01 → —
|
MCU1# | — | |
| 47131 — Cushion(FOR STOP LAMP SWITCH) | ||||
| 90541-06036 |
Cushion(FOR STOP LAMP SWITCH)
1998-01 → —
|
MCU1# | — | |
| 47264A — Pin(FOR PUSH ROD) | ||||
| 47148-33010 |
Pin(FOR PUSH ROD)
1998-01 → 2001-08
ended
|
MCU1# | — | |
| 47148-33011 |
Pin(FOR PUSH ROD)
2001-08 → 2002-08
ended
|
MCU1# | — | |
| 90249-06180 |
Pin(FOR PUSH ROD)
2002-08 → —
|
MCU1# | — | |
| 55106 — Support Sub-assy, Brake Pedal | ||||
| 55106-48020 |
Support Sub-assy, Brake Pedal
1998-01 → 2002-08
ended
|
MCU1# | — | |
| 55106-48050 |
Support Sub-assy, Brake Pedal
2002-08 → —
|
MCU1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
