Toyota Lexus RX300
1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States
Discontinued model
Data version 2003-10

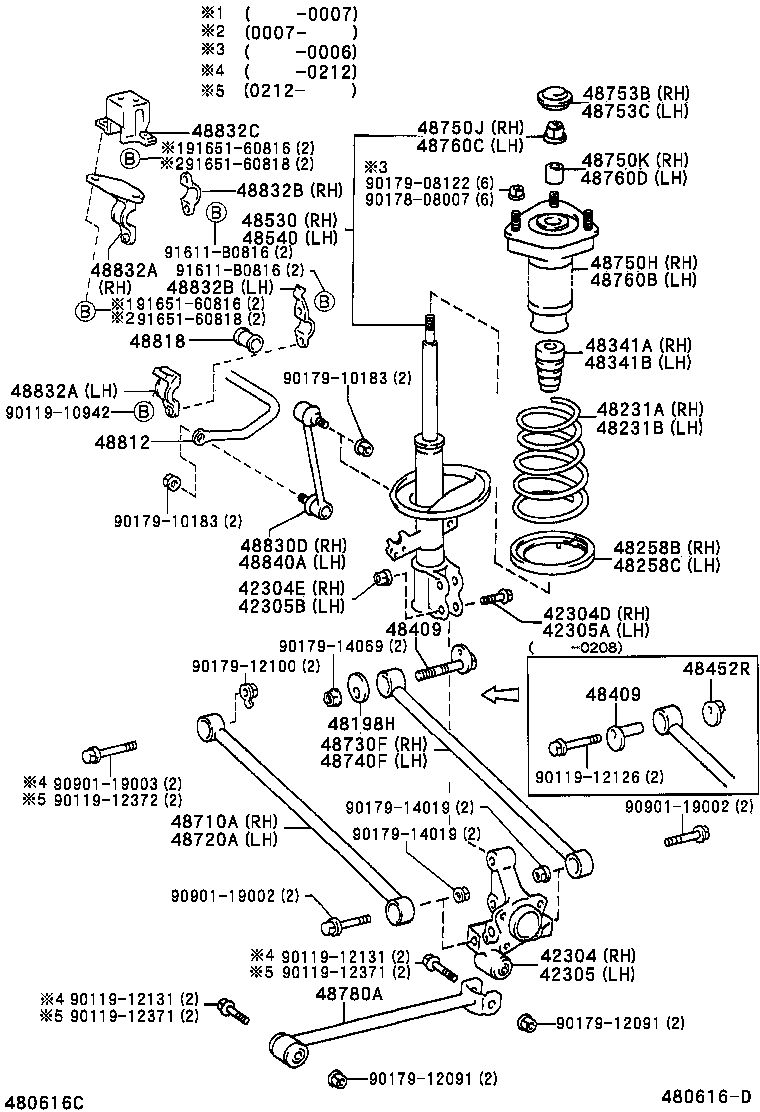

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 42304 — Carrier Sub-assy, Rear Axle, RH | ||||
| 42304-20090 |
Carrier Sub-assy, Rear Axle, RH
1998-01 → —
|
MCU10 | — | |
| 42304-33020 |
Carrier Sub-assy, Rear Axle, RH
1998-01 → —
|
MCU15 | — | |
| 42304D — Bolt (FOR REAR AXLE CARRIER RH) | ||||
| 90105-15001 |
Bolt (FOR REAR AXLE CARRIER RH)
1998-01 → —
|
MCU1# | — | |
| 42304E — Nut (FOR REAR AXLE CARRIER RH) | ||||
| 90179-15001 |
Nut (FOR REAR AXLE CARRIER RH)
1998-01 → —
|
MCU1# | — | |
| 42305 — Carrier Sub-assy, Rear Axle, LH | ||||
| 42305-20090 |
Carrier Sub-assy, Rear Axle, LH
1998-01 → —
|
MCU10 | — | |
| 42305-33020 |
Carrier Sub-assy, Rear Axle, LH
1998-01 → —
|
MCU15 | — | |
| 42305A — Bolt (FOR REAR AXLE CARRIER LH) | ||||
| 90105-15001 |
Bolt (FOR REAR AXLE CARRIER LH)
1998-01 → —
|
MCU1# | — | |
| 42305B — Nut (FOR REAR AXLE CARRIER LH) | ||||
| 90179-15001 |
Nut (FOR REAR AXLE CARRIER LH)
1998-01 → —
|
MCU1# | — | |
| 48198H — Cam, Camber Adjust, NO.2 | ||||
| 48198-48010 |
Cam, Camber Adjust, NO.2
2002-08 → —
|
MCU1# | — | |
| 48231A — Spring, Coil, Rear RH | ||||
| 48231-48010 |
Spring, Coil, Rear RH
1998-01 → 2002-04
ended
|
MCU10 | — | |
| 48231-48011 |
Spring, Coil, Rear RH
2002-04 → —
|
MCU10 | — | |
| 48231-48020 |
Spring, Coil, Rear RH
1998-01 → 2000-07
ended
|
MCU15 | — | |
| 48231-48060 note |
Spring, Coil, Rear RH
2001-03 → 2001-06
ended
|
MCU10 | — | |
| 48231-48080 |
Spring, Coil, Rear RH
2000-07 → 2002-04
ended
|
MCU15 | — | |
| 48231-48081 |
Spring, Coil, Rear RH
2002-04 → —
|
MCU15 | — | |
| 48231-48090 note |
Spring, Coil, Rear RH
2001-03 → 2001-06
ended
|
MCU15 | — | |
| 48231B — Spring, Coil, Rear LH | ||||
| 48231-48010 |
Spring, Coil, Rear LH
1998-01 → 2002-04
ended
|
MCU10 | — | |
| 48231-48011 |
Spring, Coil, Rear LH
2002-04 → —
|
MCU10 | — | |
| 48231-48020 |
Spring, Coil, Rear LH
1998-01 → 2000-07
ended
|
MCU15 | — | |
| 48231-48060 note |
Spring, Coil, Rear LH
2001-03 → 2001-06
ended
|
MCU10 | — | |
| 48231-48080 |
Spring, Coil, Rear LH
2000-07 → 2002-04
ended
|
MCU15 | — | |
| 48231-48081 |
Spring, Coil, Rear LH
2002-04 → —
|
MCU15 | — | |
| 48231-48090 note |
Spring, Coil, Rear LH
2001-03 → 2001-06
ended
|
MCU15 | — | |
| 48258B — Insulator, Rear Coil Spring, Lower RH | ||||
| 48258-32020 |
Insulator, Rear Coil Spring, Lower RH
1998-01 → —
|
MCU1# | — | |
| 48258C — Insulator, Rear Coil Spring, Lower LH | ||||
| 48258-32020 |
Insulator, Rear Coil Spring, Lower LH
1998-01 → —
|
MCU1# | — | |
| 48341A — Bumper, Rear Spring, NO.1 RH | ||||
| 48341-48010 |
Bumper, Rear Spring, NO.1 RH
1998-01 → —
|
MCU1# | — | |
| 48341B — Bumper, Rear Spring, NO.1 LH | ||||
| 48341-48010 |
Bumper, Rear Spring, NO.1 LH
1998-01 → —
|
MCU1# | — | |
| 48409 — Cam Sub-assy, Rear Suspension Toe Adjust | ||||
| 48409-32030 |
Cam Sub-assy, Rear Suspension Toe Adjust
1998-01 → 2002-08
ended
|
MCU1# | — | |
| 48409-48010 |
Cam Sub-assy, Rear Suspension Toe Adjust
2002-08 → —
|
MCU1# | — | |
| 48452R — Plate, Rear Suspension Toe Adjust, NO.2 | ||||
| 48452-32030 |
Plate, Rear Suspension Toe Adjust, NO.2
1998-01 → 2002-08
ended
|
MCU1# | — | |
| 48530 — Absorber Assy, Shock, Rear RH | ||||
| 48530-49125 |
Absorber Assy, Shock, Rear RH
1998-01 → 2000-07
ended
|
MCU15 | — | |
| 48530-49135 |
Absorber Assy, Shock, Rear RH
1998-01 → 2000-07
ended
|
MCU10 | — | |
| 48530-49155 note |
Absorber Assy, Shock, Rear RH
2000-07 → —
|
MCU10 | — | |
| 48530-49165 note |
Absorber Assy, Shock, Rear RH
2000-07 → —
|
MCU15 | — | |
| 48530-49195 note |
Absorber Assy, Shock, Rear RH
2001-03 → 2001-06
ended
|
MCU15 | — | |
| 48540 — Absorber Assy, Shock, Rear LH | ||||
| 48540-49065 |
Absorber Assy, Shock, Rear LH
1998-01 → 2000-07
ended
|
MCU15 | — | |
| 48540-49075 |
Absorber Assy, Shock, Rear LH
1998-01 → 2000-07
ended
|
MCU10 | — | |
| 48540-49095 note |
Absorber Assy, Shock, Rear LH
2000-07 → —
|
MCU10 | — | |
| 48540-49105 note |
Absorber Assy, Shock, Rear LH
2000-07 → —
|
MCU15 | — | |
| 48540-49125 note |
Absorber Assy, Shock, Rear LH
2001-03 → 2001-06
ended
|
MCU15 | — | |
| 48710A — Arm Assy, Rear Suspension, NO.1 RH | ||||
| 48710-48010 |
Arm Assy, Rear Suspension, NO.1 RH
1998-01 → —
|
MCU10 | — | |
| 48710-48020 |
Arm Assy, Rear Suspension, NO.1 RH
1998-01 → —
|
MCU15 | — | |
| 48720A — Arm Assy, Rear Suspension, NO.1 LH | ||||
| 48710-48020 |
Arm Assy, Rear Suspension, NO.1 LH
1998-01 → —
|
MCU15 | — | |
| 48720-48010 |
Arm Assy, Rear Suspension, NO.1 LH
1998-01 → —
|
MCU10 | — | |
| 48730F — Arm Assy, Rear Suspension, NO.2 RH | ||||
| 48730-48010 |
Arm Assy, Rear Suspension, NO.2 RH
1998-01 → 2000-07
ended
|
MCU10 | — | |
| 48730-48020 |
Arm Assy, Rear Suspension, NO.2 RH
1998-01 → 2000-07
ended
|
MCU15 | — | |
| 48730-48030 |
Arm Assy, Rear Suspension, NO.2 RH
2000-07 → 2002-08
ended
|
MCU10 | — | |
| 48730-48031 |
Arm Assy, Rear Suspension, NO.2 RH
2002-08 → —
|
MCU10 | — | |
| 48730-48040 note |
Arm Assy, Rear Suspension, NO.2 RH
2000-07 → 2002-08
ended
|
MCU10 | — | |
| 48730-48041 note |
Arm Assy, Rear Suspension, NO.2 RH
2002-08 → —
|
MCU10 | — | |
| 48730-48050 |
Arm Assy, Rear Suspension, NO.2 RH
2000-07 → 2002-08
ended
|
MCU15 | — | |
| 48730-48051 |
Arm Assy, Rear Suspension, NO.2 RH
2002-08 → —
|
MCU15 | — | |
| 48730-48060 note |
Arm Assy, Rear Suspension, NO.2 RH
2000-07 → 2002-08
ended
|
MCU15 | — | |
| 48730-48061 note |
Arm Assy, Rear Suspension, NO.2 RH
2002-08 → —
|
MCU15 | — | |
| 48740F — Arm Assy, Rear Suspension, NO.2 LH | ||||
| 48730-48020 |
Arm Assy, Rear Suspension, NO.2 LH
1998-01 → 2000-07
ended
|
MCU15 | — | |
| 48730-48050 |
Arm Assy, Rear Suspension, NO.2 LH
2000-07 → 2002-08
ended
|
MCU15 | — | |
| 48730-48051 |
Arm Assy, Rear Suspension, NO.2 LH
2002-08 → —
|
MCU15 | — | |
| 48740-48010 |
Arm Assy, Rear Suspension, NO.2 LH
1998-01 → 2000-07
ended
|
MCU10 | — | |
| 48740-48020 |
Arm Assy, Rear Suspension, NO.2 LH
2000-07 → 2002-08
ended
|
MCU10 | — | |
| 48740-48021 |
Arm Assy, Rear Suspension, NO.2 LH
2002-08 → —
|
MCU10 | — | |
| 48750H — Support Assy, Rear Suspension, RH | ||||
| 48750-48010 |
Support Assy, Rear Suspension, RH
1998-01 → —
|
MCU1# | — | |
| 48750J — Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 90177-14001 |
Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
1998-01 → —
|
MCU1# | — | |
| 48750K — Collar(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 90387-15027 |
Collar(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
1998-01 → —
|
MCU1# | — | |
| 48753B — Cover, Rear Suspension Supoport, NO.1 RH | ||||
| 48753-33010 |
Cover, Rear Suspension Supoport, NO.1 RH
1998-01 → —
|
MCU1# | — | |
| 48753C — Cover, Rear Suspension Supoport, NO.1 LH | ||||
| 48753-33010 |
Cover, Rear Suspension Supoport, NO.1 LH
1998-01 → —
|
MCU1# | — | |
| 48760B — Support Assy Rear Suspension, LH | ||||
| 48760-48010 |
Support Assy Rear Suspension, LH
1998-01 → —
|
MCU1# | — | |
| 48760C — Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 90177-14001 |
Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
1998-01 → —
|
MCU1# | — | |
| 48760D — Collar(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 90387-15027 |
Collar(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
1998-01 → —
|
MCU1# | — | |
| 48780A — Rod Assy, Strut, Rear | ||||
| 48780-48010 |
Rod Assy, Strut, Rear
1998-01 → —
|
MCU1# | — | |
| 48812 — Bar, Stabilizer, Rear | ||||
| 48812-33150 |
Bar, Stabilizer, Rear
1998-01 → 2000-07
ended
|
MCU15 | — | |
| 48812-48010 |
Bar, Stabilizer, Rear
1998-01 → 2000-07
ended
|
MCU10 | — | |
| 48812-48040 |
Bar, Stabilizer, Rear
2000-07 → —
|
MCU1# | — | |
| 48812-48050 note |
Bar, Stabilizer, Rear
2001-03 → 2001-06
ended
|
MCU15 | — | |
| 48818 — Bush, Stabilizer, Rear | ||||
| 48818-20290 |
Bush, Stabilizer, Rear
1998-01 → 2000-06
ended
|
MCU15 | — | |
| 48818-21020 |
Bush, Stabilizer, Rear
2000-06 → 2000-07
ended
|
MCU10 | — | |
| 48818-21050 note |
Bush, Stabilizer, Rear
2001-03 → 2001-06
ended
|
MCU15 | — | |
| 48818-21050 |
Bush, Stabilizer, Rear
2000-06 → 2000-07
ended
|
MCU15 | — | |
| 48818-32080 |
Bush, Stabilizer, Rear
1998-01 → 2000-06
ended
|
MCU10 | — | |
| 48818-48030 |
Bush, Stabilizer, Rear
2000-07 → —
|
MCU1# | — | |
| 48830D — Link Assy, Rear Stabilizer, RH | ||||
| 48830-32040 |
Link Assy, Rear Stabilizer, RH
1998-01 → —
|
MCU15 | — | |
| 48830-33010 |
Link Assy, Rear Stabilizer, RH
1998-01 → —
|
MCU10 | — | |
| 48832A — Bracket, Rear Stabilizer Bar, NO.1 | ||||
| 48832-32050 note |
Bracket, Rear Stabilizer Bar, NO.1
1998-01 → —
|
MCU1# | — | |
| 48832-32070 note |
Bracket, Rear Stabilizer Bar, NO.1
1998-01 → —
|
MCU1# | — | |
| 48832B — Bracket, Rear Stabilizer Bar, NO.2 | ||||
| 48832-32060 note |
Bracket, Rear Stabilizer Bar, NO.2
1998-01 → —
|
MCU1# | — | |
| 48832-32080 note |
Bracket, Rear Stabilizer Bar, NO.2
1998-01 → —
|
MCU1# | — | |
| 48832C — Bracket, Rear Stabilizer Bar, NO.3 | ||||
| 48832-32090 |
Bracket, Rear Stabilizer Bar, NO.3
1998-01 → —
|
MCU1# | — | |
| 48840A — Link Assy, Rear Stabilizer, LH | ||||
| 48830-32040 |
Link Assy, Rear Stabilizer, LH
1998-01 → —
|
MCU15 | — | |
| 48830-33010 |
Link Assy, Rear Stabilizer, LH
1998-01 → —
|
MCU10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
