Toyota Lexus RX300
1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States
Discontinued model
Data version 2003-10

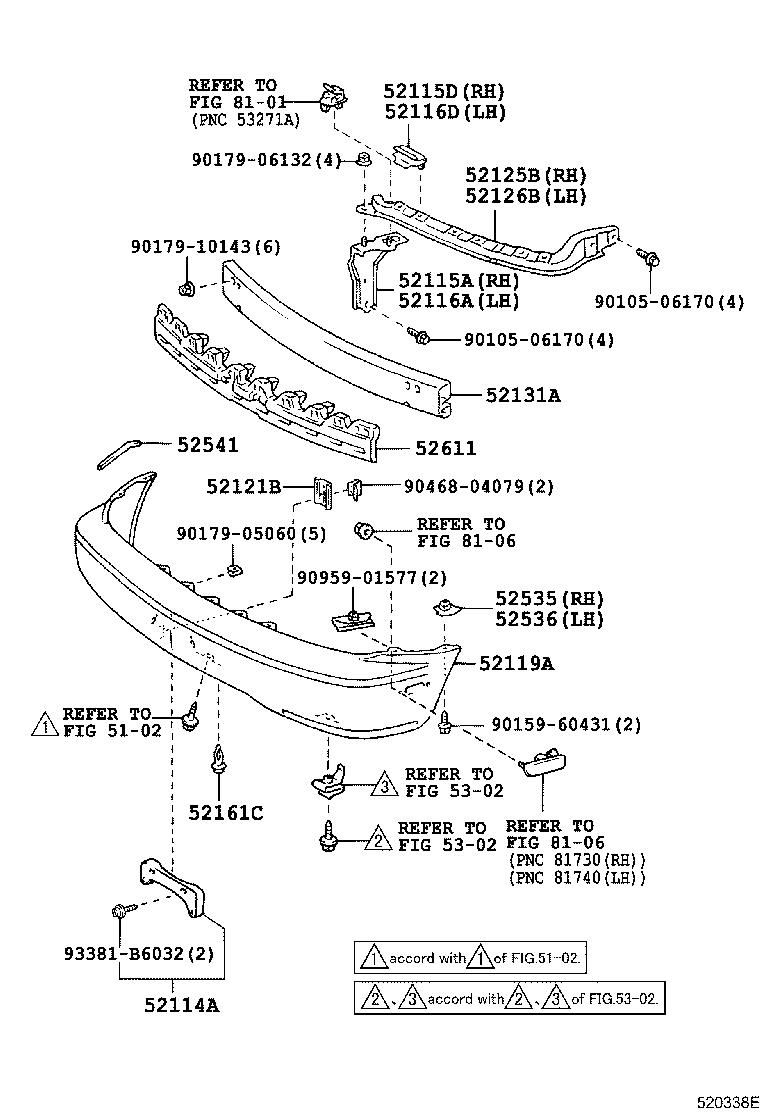

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52114A — Bracket, Front Bumper Extension Mounting | ||||
| 52114-48010 |
Bracket, Front Bumper Extension Mounting
1998-01 → —
|
MCU1# | — | |
| 52115A — Support, Front Bumper Side, RH | ||||
| 52115-48010 |
Support, Front Bumper Side, RH
1998-01 → —
|
MCU1# | — | |
| 52115D — Support, Front Bumper Side, NO.2 RH | ||||
| 52115-14130 |
Support, Front Bumper Side, NO.2 RH
1998-01 → —
|
MCU1# | — | |
| 52116A — Support, Front Bumper Side, LH | ||||
| 52116-48010 |
Support, Front Bumper Side, LH
1998-01 → —
|
MCU1# | — | |
| 52116D — Support, Front Bumper Side, NO.2 LH | ||||
| 52115-14130 |
Support, Front Bumper Side, NO.2 LH
1998-01 → —
|
MCU1# | — | |
| 52119A — Cover, Front Bumper | ||||
| 52119-48901 |
Cover, Front Bumper
1998-01 → —
|
MCU1# | — | |
| 52121B — Bracket, Front Licence Plate Mounting | ||||
| 52121-24020 |
Bracket, Front Licence Plate Mounting
1998-01 → —
|
MCU1# | — | |
| 52125B — Extension, Front Bumper Reinforcement, RH | ||||
| 52125-48010 |
Extension, Front Bumper Reinforcement, RH
1998-01 → —
|
MCU1# | — | |
| 52126B — Extension, Front Bumper Reinforcement, LH | ||||
| 52126-48010 |
Extension, Front Bumper Reinforcement, LH
1998-01 → —
|
MCU1# | — | |
| 52131A — Reinforcement, Front Bumper | ||||
| 52131-48010 |
Reinforcement, Front Bumper
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 52131-48020 |
Reinforcement, Front Bumper
2000-07 → —
|
MCU1# | — | |
| 52161C — Piece, Front Bumper | ||||
| 52161-16010 |
Piece, Front Bumper
1998-01 → —
|
MCU1# | — | |
| 52535 — Retainer, Front Bumper Side, RH | ||||
| 52535-30150 |
Retainer, Front Bumper Side, RH
1998-01 → —
|
MCU1# | — | |
| 52536 — Retainer, Front Bumper Side, LH | ||||
| 52535-30150 |
Retainer, Front Bumper Side, LH
1998-01 → —
|
MCU1# | — | |
| 52541 — Protector, Front Bumper | ||||
| 52541-48010 |
Protector, Front Bumper
1998-01 → —
|
MCU1# | — | |
| 52611 — Absorber, Front Bumper Energy | ||||
| 52611-48010 |
Absorber, Front Bumper Energy
1998-01 → —
|
MCU1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
