Toyota Lexus RX300
1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States
Discontinued model
Data version 2003-10

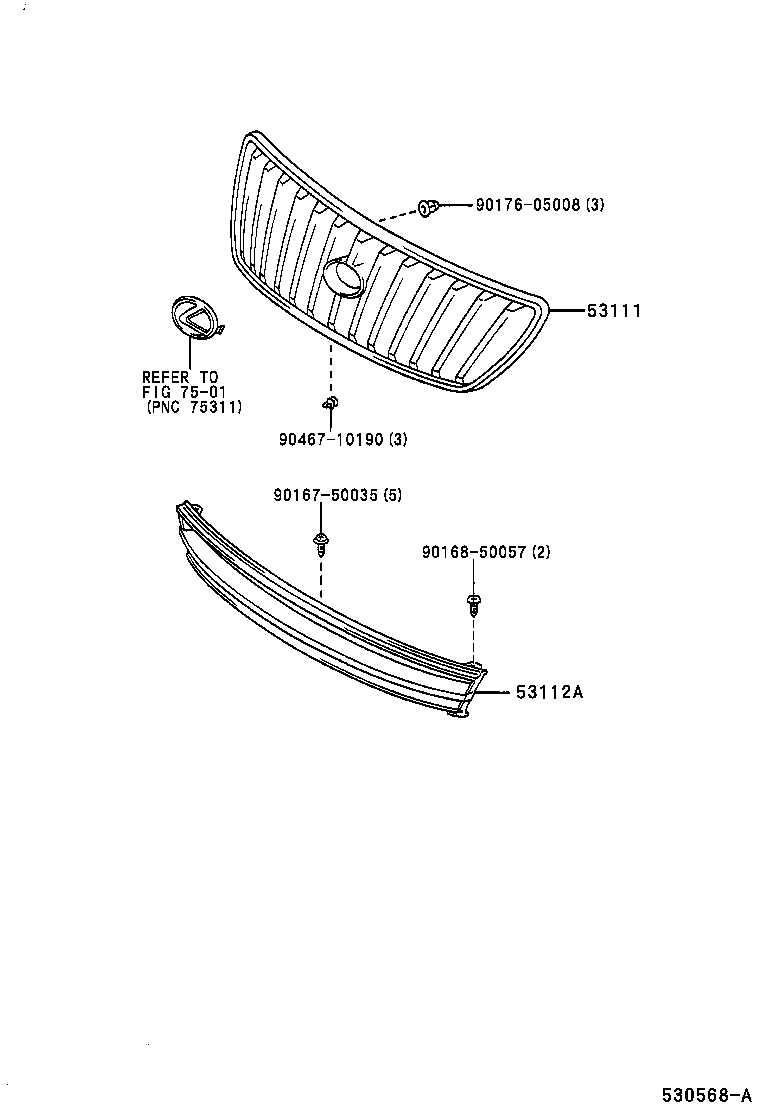

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53111 — Grille, Radiator | ||||
| 53111-48010 |
Grille, Radiator
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 53111-48020 |
Grille, Radiator
2000-07 → —
|
MCU1# | — | |
| 53112A — Grille, Radiator, Lower | ||||
| 53112-48010-A1 note |
Grille, Radiator, Lower
2000-07 → —
|
MCU1# | — | |
| 53112-48010-A3 note |
Grille, Radiator, Lower
2002-07 → 2002-09
ended
|
MCU1# | — | |
| 53112-48010-A3 note |
Grille, Radiator, Lower
2002-03 → 2002-07
ended
|
MCU1# | — | |
| 53112-48010-B0 note |
Grille, Radiator, Lower
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 53112-48010-B2 note |
Grille, Radiator, Lower
2000-07 → —
|
MCU1# | — | |
| 53112-48010-B3 note |
Grille, Radiator, Lower
2002-07 → 2002-09
ended
|
MCU1# | — | |
| 53112-48010-B3 note |
Grille, Radiator, Lower
2002-03 → 2002-07
ended
|
MCU1# | — | |
| 53112-48010-C0 note |
Grille, Radiator, Lower
2000-07 → —
|
MCU1# | — | |
| 53112-48010-D0 note |
Grille, Radiator, Lower
1998-01 → 2000-03
ended
|
MCU1# | — | |
| 53112-48010-D1 note |
Grille, Radiator, Lower
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 53112-48010-D2 note |
Grille, Radiator, Lower
2000-07 → —
|
MCU1# | — | |
| 53112-48010-D3 note |
Grille, Radiator, Lower
2000-03 → 2000-07
ended
|
MCU1# | — | |
| 53112-48010-E0 note |
Grille, Radiator, Lower
2000-07 → —
|
MCU1# | — | |
| 53112-48010-G0 note |
Grille, Radiator, Lower
1998-01 → 2000-03
ended
|
MCU1# | — | |
| 53112-48010-G1 note |
Grille, Radiator, Lower
2000-07 → —
|
MCU1# | — | |
| 53112-48010-G2 note |
Grille, Radiator, Lower
2000-07 → —
|
MCU1# | — | |
| 53112-48010-G3 note |
Grille, Radiator, Lower
2000-03 → 2000-07
ended
|
MCU1# | — | |
| 53112-48010-H0 note |
Grille, Radiator, Lower
1999-08 → 2000-03
ended
|
MCU1# | — | |
| 53112-48010-H0 note |
Grille, Radiator, Lower
1998-01 → 1999-08
ended
|
MCU1# | — | |
| 53112-48010-H1 note |
Grille, Radiator, Lower
2000-03 → 2000-07
ended
|
MCU1# | — | |
| 53112-48010-J0 note |
Grille, Radiator, Lower
1998-01 → 2000-03
ended
|
MCU1# | — | |
| 53112-48010-J1 note |
Grille, Radiator, Lower
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 53112-48010-J2 note |
Grille, Radiator, Lower
2000-07 → —
|
MCU1# | — | |
| 53112-48010-J3 note |
Grille, Radiator, Lower
2000-07 → —
|
MCU1# | — | |
| 53112-48010-J4 note |
Grille, Radiator, Lower
2000-03 → 2000-07
ended
|
MCU1# | — | |
| 53112-48010-K0 note |
Grille, Radiator, Lower
1998-01 → 1999-08
ended
|
MCU1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
