Toyota Lexus RX300
1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States
Discontinued model
Data version 2003-10

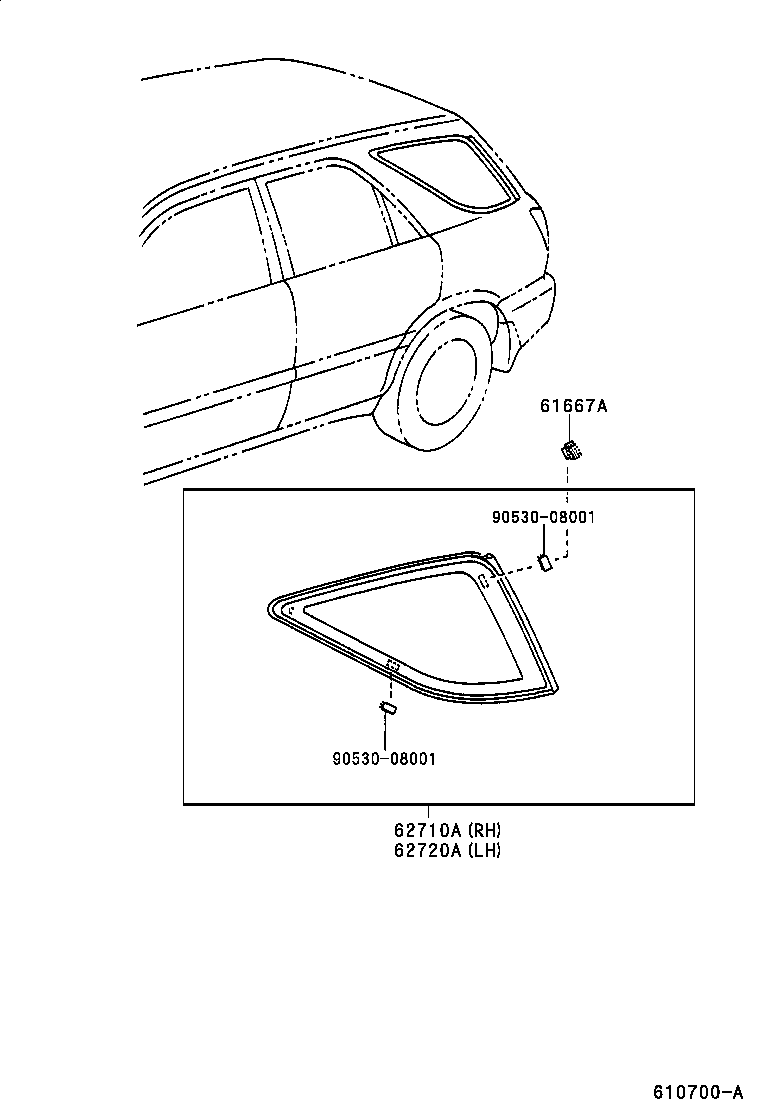

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 61667A — Spacer Quarter Panel, NO.1 | ||||
| 61667-14030 |
Spacer Quarter Panel, NO.1
1998-01 → —
|
MCU1# | — | |
| 62710A — Window Assy, Quarter, RH | ||||
| 62710-48030 note |
Window Assy, Quarter, RH
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 62710-48070 note |
Window Assy, Quarter, RH
2000-07 → —
|
MCU1# | — | |
| 62720A — Window Assy, Quarter, LH | ||||
| 62720-48050 note |
Window Assy, Quarter, LH
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 62720-48080 note |
Window Assy, Quarter, LH
2000-07 → —
|
MCU1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
