Toyota Lexus RX300
1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States
Discontinued model
Data version 2003-10

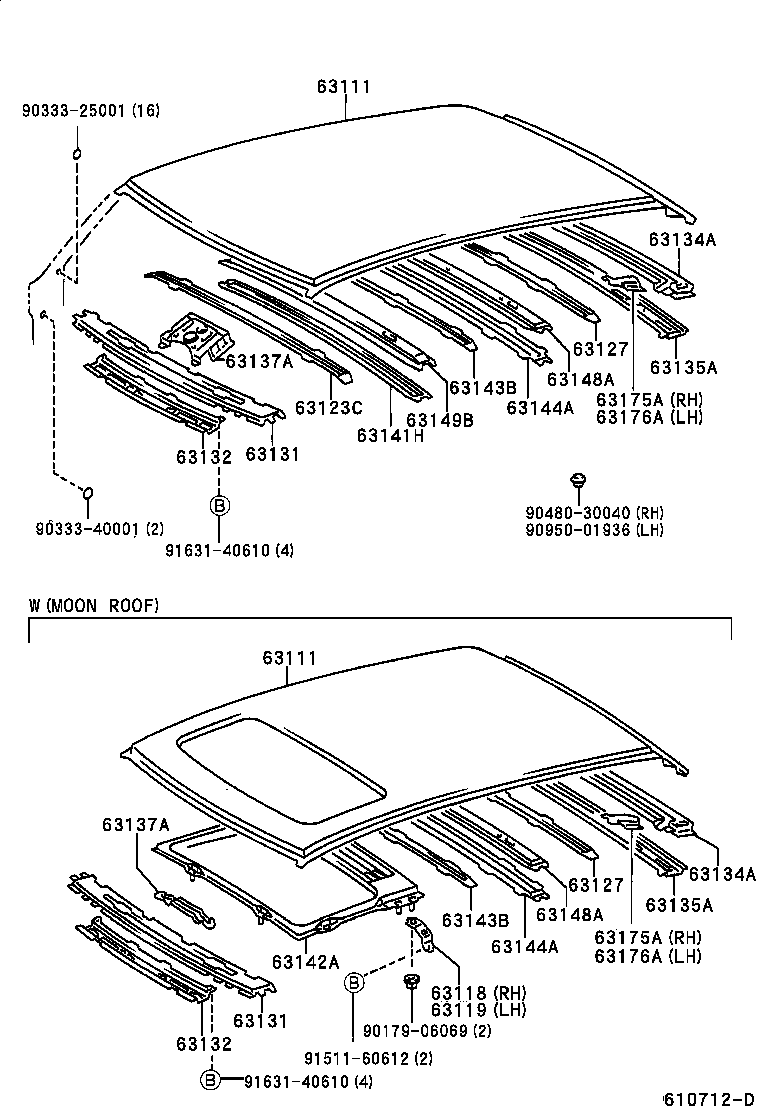

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 63111 — Panel, Roof | ||||
| 63111-48030 |
Panel, Roof
1998-01 → 2002-08
ended
|
MCU1# | — | |
| 63111-48030 |
Panel, Roof
2002-08 → —
|
MCU15 | — | |
| 63111-48040 note |
Panel, Roof
1998-01 → 2000-01
ended
|
MCU1# | — | |
| 63111-48041 note |
Panel, Roof
2000-01 → —
|
MCU1# | — | |
| 63118 — Support, Roof Panel, RH | ||||
| 63118-48010 note |
Support, Roof Panel, RH
1998-01 → 1999-12
ended
|
MCU1# | — | |
| 63118-48020 note |
Support, Roof Panel, RH
1998-01 → 1999-12
ended
|
MCU1# | — | |
| 63118-48030 note |
Support, Roof Panel, RH
1998-01 → 1999-12
ended
|
MCU1# | — | |
| 63118-48030 note |
Support, Roof Panel, RH
1999-12 → —
|
MCU1# | — | |
| 63119 — Support, Roof Panel, LH | ||||
| 63118-48010 note |
Support, Roof Panel, LH
1998-01 → 1999-12
ended
|
MCU1# | — | |
| 63118-48020 note |
Support, Roof Panel, LH
1998-01 → 1999-12
ended
|
MCU1# | — | |
| 63118-48030 note |
Support, Roof Panel, LH
1998-01 → 1999-12
ended
|
MCU1# | — | |
| 63118-48030 note |
Support, Roof Panel, LH
1999-12 → —
|
MCU1# | — | |
| 63123C — Reinforcement, Roof Panel | ||||
| 63123-48010 |
Reinforcement, Roof Panel
1998-01 → 2002-08
ended
|
MCU1# | — | |
| 63123-48010 |
Reinforcement, Roof Panel
2002-08 → —
|
MCU15 | — | |
| 63127 — Reinforcement, Roof Panel, NO.5 | ||||
| 63127-48010 |
Reinforcement, Roof Panel, NO.5
1998-01 → —
|
MCU1# | — | |
| 63131 — Panel, Windshield Header, Outer | ||||
| 63131-48010 |
Panel, Windshield Header, Outer
1998-01 → —
|
MCU1# | — | |
| 63132 — Panel, Windshield Header, Inner | ||||
| 63132-48010 |
Panel, Windshield Header, Inner
1998-01 → —
|
MCU1# | — | |
| 63134A — Frame, Back Door Opening, Upper | ||||
| 63134-48010 |
Frame, Back Door Opening, Upper
1998-01 → —
|
MCU1# | — | |
| 63135A — Frame, Back Door Opening, Lower | ||||
| 63135-48010 |
Frame, Back Door Opening, Lower
1998-01 → —
|
MCU1# | — | |
| 63137A — Bracket, Dome Lamp, NO.1 | ||||
| 63137-48010 |
Bracket, Dome Lamp, NO.1
1998-01 → 2002-08
ended
|
MCU1# | — | |
| 63137-48010 |
Bracket, Dome Lamp, NO.1
2002-08 → —
|
MCU15 | — | |
| 63137-48020 note |
Bracket, Dome Lamp, NO.1
1998-01 → —
|
MCU1# | — | |
| 63141H — Reinforcement, Roof Panel, Center | ||||
| 63141-48010 |
Reinforcement, Roof Panel, Center
1998-01 → 2002-08
ended
|
MCU1# | — | |
| 63141-48010 |
Reinforcement, Roof Panel, Center
2002-08 → —
|
MCU15 | — | |
| 63142A — Reinforcement, Roof Panel, NO.2 | ||||
| 63142-48010 |
Reinforcement, Roof Panel, NO.2
1998-01 → —
|
MCU1# | — | |
| 63143B — Reinforcement, Roof Panel, NO.3 | ||||
| 63143-48010 |
Reinforcement, Roof Panel, NO.3
1998-01 → 2002-08
ended
|
MCU1# | — | |
| 63143-48010 |
Reinforcement, Roof Panel, NO.3
2002-08 → —
|
MCU15 | — | |
| 63143-48020 note |
Reinforcement, Roof Panel, NO.3
1998-01 → —
|
MCU1# | — | |
| 63144A — Reinforcement, Roof Panel, NO.4 | ||||
| 63144-48010 |
Reinforcement, Roof Panel, NO.4
1998-01 → —
|
MCU1# | — | |
| 63148A — Reinforcement, Roof Panel, NO.7 | ||||
| 63148-48010 |
Reinforcement, Roof Panel, NO.7
1998-01 → —
|
MCU1# | — | |
| 63149B — Reinforcement, Roof Panel, NO.1 Rear | ||||
| 63149-48010 |
Reinforcement, Roof Panel, NO.1 Rear
1998-01 → 2002-08
ended
|
MCU1# | — | |
| 63149-48010 |
Reinforcement, Roof Panel, NO.1 Rear
2002-08 → —
|
MCU15 | — | |
| 63175A — Reinforcement, Back Door Hinge Female, RH | ||||
| 63175-48010 |
Reinforcement, Back Door Hinge Female, RH
1998-01 → —
|
MCU1# | — | |
| 63176A — Reinforcement, Back Door Hinge Female, LH | ||||
| 63176-48010 |
Reinforcement, Back Door Hinge Female, LH
1998-01 → —
|
MCU1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
