Toyota Lexus RX300

1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States

Discontinued model Data version 2003-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

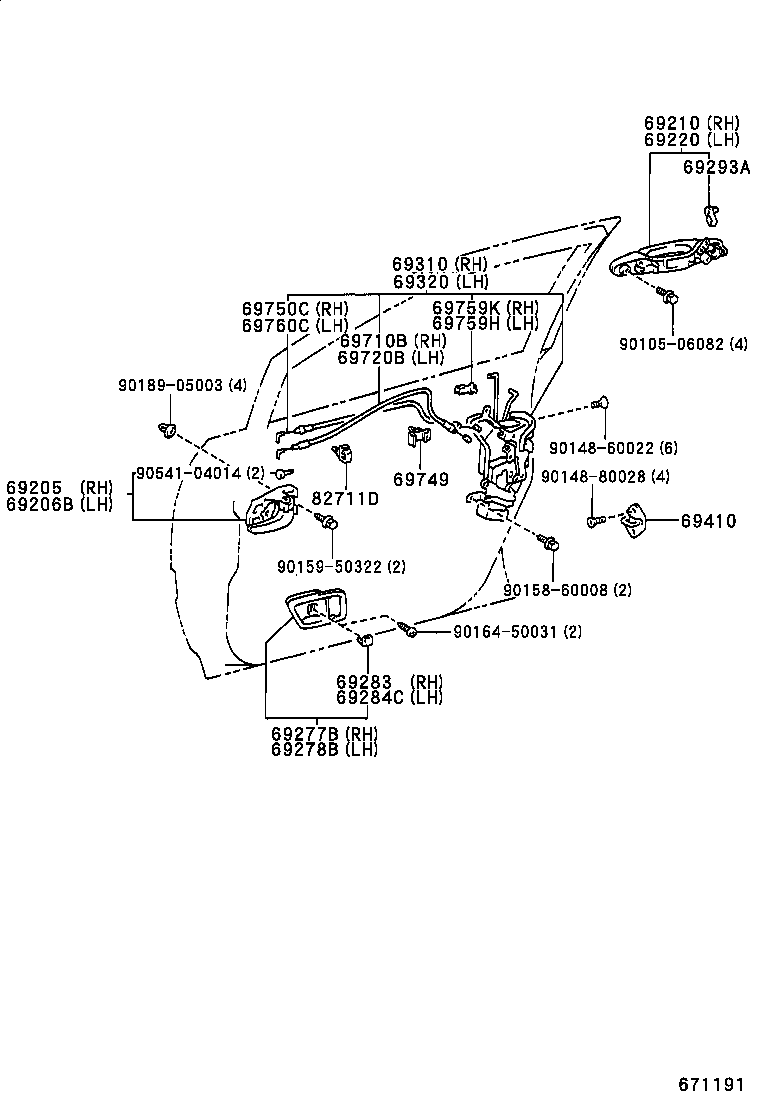

90 parts on this figure

Part number	Description	Fitment	Price
69205 — Handle Sub-assy, Front Door Inside, RH
69205-30150-A1 note	Handle Sub-assy, Front Door Inside, RH 1998-01 → 2000-07 ended	MCU1#	—
69205-30150-B2 note	Handle Sub-assy, Front Door Inside, RH 1998-01 → 1999-01 ended	MCU1#	—
69205-30150-B5 note	Handle Sub-assy, Front Door Inside, RH 1999-01 → 2000-07 ended	MCU1#	—
69205-48010-A0 note	Handle Sub-assy, Front Door Inside, RH 2000-07 → —	MCU1#	—
69205-48010-C0 note	Handle Sub-assy, Front Door Inside, RH 2000-07 → —	MCU1#	—
69206B — Handle Sub-assy, Front Door Inside, LH
69206-30150-A1 note	Handle Sub-assy, Front Door Inside, LH 1998-01 → 2000-07 ended	MCU1#	—
69206-30150-B2 note	Handle Sub-assy, Front Door Inside, LH 1998-01 → 1999-01 ended	MCU1#	—
69206-30150-B5 note	Handle Sub-assy, Front Door Inside, LH 1999-01 → 2000-07 ended	MCU1#	—
69206-48010-A0 note	Handle Sub-assy, Front Door Inside, LH 2000-07 → —	MCU1#	—
69206-48010-C0 note	Handle Sub-assy, Front Door Inside, LH 2000-07 → —	MCU1#	—
69210 — Handle Assy, Front Door, Outside RH
69210-48010-A0 note	Handle Assy, Front Door, Outside RH 1998-01 → 2000-06 ended	MCU1#	—
69210-48010-B0 note	Handle Assy, Front Door, Outside RH 1998-01 → 2000-07 ended	MCU1#	—
69210-48010-C0 note	Handle Assy, Front Door, Outside RH 1998-01 → 2000-07 ended	MCU1#	—
69210-48010-D0 note	Handle Assy, Front Door, Outside RH 1998-01 → 2000-06 ended	MCU1#	—
69210-48010-E0 note	Handle Assy, Front Door, Outside RH 1998-01 → 2000-07 ended	MCU1#	—
69210-48010-E1 note	Handle Assy, Front Door, Outside RH 1998-01 → 1999-08 ended	MCU1#	—
69210-48010-G0 note	Handle Assy, Front Door, Outside RH 1998-01 → 2000-07 ended	MCU1#	—
69210-48010-G1 note	Handle Assy, Front Door, Outside RH 1999-08 → 2000-06 ended	MCU1#	—
69210-48010-J1 note	Handle Assy, Front Door, Outside RH 1998-01 → 2000-06 ended	MCU1#	—
69210-48030-A0 note	Handle Assy, Front Door, Outside RH 2000-07 → —	MCU1#	—
69210-48030-A1 note	Handle Assy, Front Door, Outside RH 2000-06 → 2000-07 ended	MCU1#	—
69210-48030-A4 note	Handle Assy, Front Door, Outside RH 2002-07 → 2002-09 ended	MCU1#	—
69210-48030-A4 note	Handle Assy, Front Door, Outside RH 2002-03 → 2002-07 ended	MCU1#	—
69210-48030-B0 note	Handle Assy, Front Door, Outside RH 2000-07 → —	MCU1#	—
69210-48030-B1 note	Handle Assy, Front Door, Outside RH 2002-03 → 2002-07 ended	MCU1#	—
69210-48030-B1 note	Handle Assy, Front Door, Outside RH 2002-07 → 2002-09 ended	MCU1#	—
69210-48030-C0 note	Handle Assy, Front Door, Outside RH 2000-07 → —	MCU1#	—
69210-48030-D0 note	Handle Assy, Front Door, Outside RH 2000-07 → —	MCU1#	—
69210-48030-D1 note	Handle Assy, Front Door, Outside RH 2000-06 → 2000-07 ended	MCU1#	—
69210-48030-E0 note	Handle Assy, Front Door, Outside RH 2000-07 → —	MCU1#	—
69210-48030-G0 note	Handle Assy, Front Door, Outside RH 2000-07 → —	MCU1#	—
69210-48030-G1 note	Handle Assy, Front Door, Outside RH 2000-07 → —	MCU1#	—
69210-48030-J0 note	Handle Assy, Front Door, Outside RH 2000-07 → —	MCU1#	—
69210-48030-J1 note	Handle Assy, Front Door, Outside RH 2000-07 → —	MCU1#	—
69220 — Handle Assy, Front Door Outside, LH
69220-48010-A0 note	Handle Assy, Front Door Outside, LH 1998-01 → 2000-06 ended	MCU1#	—
69220-48010-B0 note	Handle Assy, Front Door Outside, LH 1998-01 → 2000-07 ended	MCU1#	—
69220-48010-C0 note	Handle Assy, Front Door Outside, LH 1998-01 → 2000-07 ended	MCU1#	—
69220-48010-D0 note	Handle Assy, Front Door Outside, LH 1998-01 → 2000-06 ended	MCU1#	—
69220-48010-E0 note	Handle Assy, Front Door Outside, LH 1998-01 → 2000-07 ended	MCU1#	—
69220-48010-E1 note	Handle Assy, Front Door Outside, LH 1998-01 → 1999-08 ended	MCU1#	—
69220-48010-G0 note	Handle Assy, Front Door Outside, LH 1998-01 → 2000-07 ended	MCU1#	—
69220-48010-G1 note	Handle Assy, Front Door Outside, LH 1999-08 → 2000-06 ended	MCU1#	—
69220-48010-J1 note	Handle Assy, Front Door Outside, LH 1998-01 → 2000-06 ended	MCU1#	—
69220-48030-A0 note	Handle Assy, Front Door Outside, LH 2000-07 → —	MCU1#	—
69220-48030-A1 note	Handle Assy, Front Door Outside, LH 2000-06 → 2000-07 ended	MCU1#	—
69220-48030-A4 note	Handle Assy, Front Door Outside, LH 2002-07 → 2002-09 ended	MCU1#	—
69220-48030-A4 note	Handle Assy, Front Door Outside, LH 2002-03 → 2002-07 ended	MCU1#	—
69220-48030-B0 note	Handle Assy, Front Door Outside, LH 2000-07 → —	MCU1#	—
69220-48030-B1 note	Handle Assy, Front Door Outside, LH 2002-07 → 2002-09 ended	MCU1#	—
69220-48030-B1 note	Handle Assy, Front Door Outside, LH 2002-03 → 2002-07 ended	MCU1#	—
69220-48030-C0 note	Handle Assy, Front Door Outside, LH 2000-07 → —	MCU1#	—
69220-48030-D0 note	Handle Assy, Front Door Outside, LH 2000-07 → —	MCU1#	—
69220-48030-D1 note	Handle Assy, Front Door Outside, LH 2000-06 → 2000-07 ended	MCU1#	—
69220-48030-E0 note	Handle Assy, Front Door Outside, LH 2000-07 → —	MCU1#	—
69220-48030-G0 note	Handle Assy, Front Door Outside, LH 2000-07 → —	MCU1#	—
69220-48030-G1 note	Handle Assy, Front Door Outside, LH 2000-07 → —	MCU1#	—
69220-48030-J0 note	Handle Assy, Front Door Outside, LH 2000-07 → —	MCU1#	—
69220-48030-J1 note	Handle Assy, Front Door Outside, LH 2000-07 → —	MCU1#	—
69277B — Bezel, Front Door Inside Handle, RH
69277-22090-A1 note	Bezel, Front Door Inside Handle, RH 2000-07 → —	MCU1#	—
69277-22090-C0 note	Bezel, Front Door Inside Handle, RH 2000-07 → —	MCU1#	—
69277-30150-A0 note	Bezel, Front Door Inside Handle, RH 1998-01 → 2000-07 ended	MCU1#	—
69277-30150-B4 note	Bezel, Front Door Inside Handle, RH 1998-01 → 1999-01 ended	MCU1#	—
69277-30150-B6 note	Bezel, Front Door Inside Handle, RH 1999-01 → 2000-07 ended	MCU1#	—
69278B — Bezel, Front Door Inside Handle, LH
69278-22050-A1 note	Bezel, Front Door Inside Handle, LH 2000-07 → —	MCU1#	—
69278-22050-C0 note	Bezel, Front Door Inside Handle, LH 2000-07 → —	MCU1#	—
69278-30080-A0 note	Bezel, Front Door Inside Handle, LH 1998-01 → 2000-07 ended	MCU1#	—
69278-30080-B4 note	Bezel, Front Door Inside Handle, LH 1998-01 → 1999-01 ended	MCU1#	—
69278-30080-B6 note	Bezel, Front Door Inside Handle, LH 1999-01 → 2000-07 ended	MCU1#	—
69283 — Plug, Front Door Inside Handle Bezel, RH
69283-30040-A1 note	Plug, Front Door Inside Handle Bezel, RH 1998-01 → —	MCU1#	—
69283-30040-B3 note	Plug, Front Door Inside Handle Bezel, RH 1999-01 → 2000-07 ended	MCU1#	—
69283-30040-B6 note	Plug, Front Door Inside Handle Bezel, RH 1998-01 → 1999-01 ended	MCU1#	—
69283-30040-C0 note	Plug, Front Door Inside Handle Bezel, RH 2000-07 → —	MCU1#	—
69284C — Plug, Front Door Inside Handle Bezel, LH
69284-30040-A1 note	Plug, Front Door Inside Handle Bezel, LH 1998-01 → —	MCU1#	—
69284-30040-B3 note	Plug, Front Door Inside Handle Bezel, LH 1999-01 → 2000-07 ended	MCU1#	—
69284-30040-B6 note	Plug, Front Door Inside Handle Bezel, LH 1998-01 → 1999-01 ended	MCU1#	—
69284-30040-C0 note	Plug, Front Door Inside Handle Bezel, LH 2000-07 → —	MCU1#	—
69293A — Snap, Front Door Outside Handle
69293-12050 note	Snap, Front Door Outside Handle 1998-01 → —	MCU1#	—
69293-12060 note	Snap, Front Door Outside Handle 1998-01 → —	MCU1#	—
69310 — Lock Assy, Front Door, RH
69030-48020	Lock Assy, Front Door, RH 1998-01 → —	MCU1#	—
69320 — Lock Assy, Front Door, LH
69040-48020	Lock Assy, Front Door, LH 1998-01 → —	MCU1#	—
69410 — Plate Assy, Front Door Lock Striker
69410-47010	Plate Assy, Front Door Lock Striker 1998-01 → —	MCU1#	—
69710B — Cable Assy, Front Door Lock Remote Control, RH
69710-48010	Cable Assy, Front Door Lock Remote Control, RH 1998-01 → —	MCU1#	—
69720B — Cable Assy, Front Door Lock Remote Control, LH
69710-48010	Cable Assy, Front Door Lock Remote Control, LH 1998-01 → —	MCU1#	—
69749 — Clamp, Front Door Lock Link
69749-30050	Clamp, Front Door Lock Link 1998-01 → —	MCU1#	—
69750C — Cable Assy, Front Door Inside Locking, RH
69750-48010	Cable Assy, Front Door Inside Locking, RH 1998-01 → —	MCU1#	—
69759H — Snap, Door Lock Control Link, NO.2
69759-24050	Snap, Door Lock Control Link, NO.2 1998-01 → —	MCU1#	—
69759K — Snap, Door Lock Control Link
69759-24060	Snap, Door Lock Control Link 1998-01 → —	MCU1#	—
69760C — Cable Assy, Front Door Inside Locking LH
69750-48010	Cable Assy, Front Door Inside Locking LH 1998-01 → —	MCU1#	—
82711D — Clamp, Wiring Harness
82711-16790	Clamp, Wiring Harness 1998-01 → 2000-07 ended	MCU1#	—
82711-1E260	Clamp, Wiring Harness 2000-07 → —	MCU1#	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
