Toyota Lexus RX300
1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States
Discontinued model
Data version 2003-10

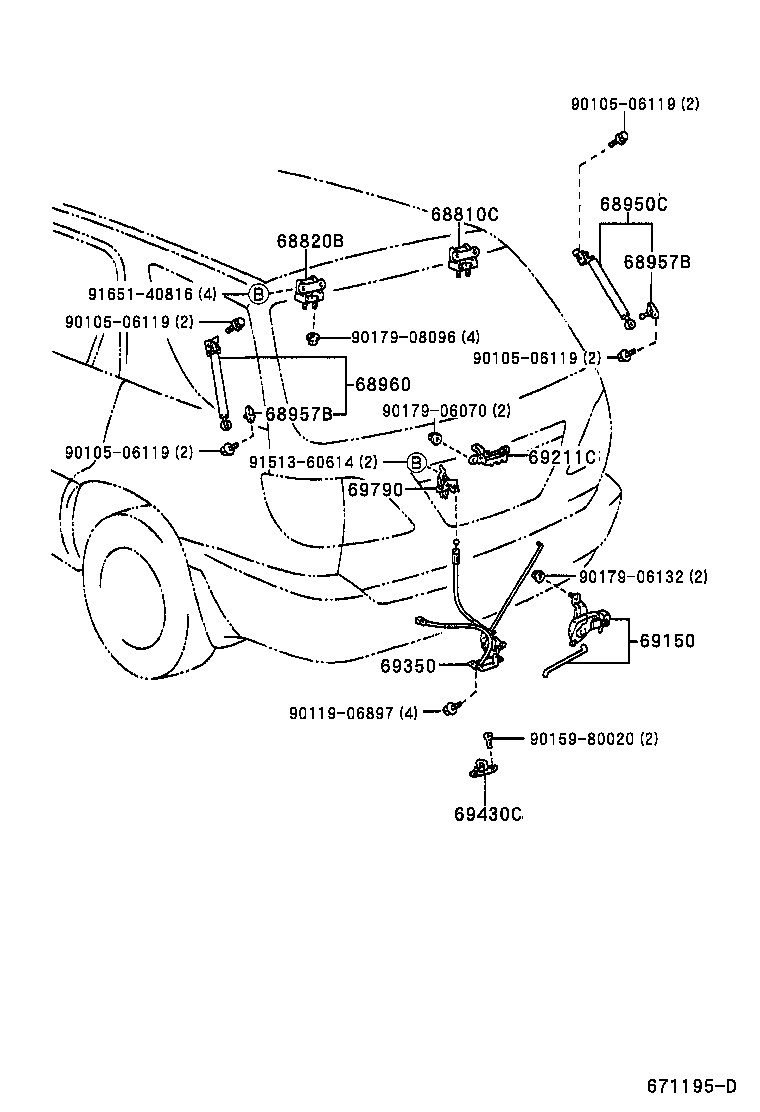

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 68810C — Hinge Assy, Back Door, RH | ||||
| 68810-44010 |
Hinge Assy, Back Door, RH
1998-01 → —
|
MCU1# | — | |
| 68820B — Hinge Assy, Back Door, LH | ||||
| 68810-44010 |
Hinge Assy, Back Door, LH
1998-01 → —
|
MCU1# | — | |
| 68950C — Stay Assy, Back Door, RH | ||||
| 68950-49016 |
Stay Assy, Back Door, RH
1998-01 → —
|
MCU1# | — | |
| 68957B — Bracket, Back Door Stay, Lower | ||||
| 68957-13020 |
Bracket, Back Door Stay, Lower
1998-01 → —
|
MCU1# | — | |
| 68960 — Stay Assy, Back Door, LH | ||||
| 68960-49016 |
Stay Assy, Back Door, LH
1998-01 → —
|
MCU1# | — | |
| 69150 — Actuator Assy, Back Door Lock | ||||
| 69150-48010 |
Actuator Assy, Back Door Lock
1998-01 → —
|
MCU1# | — | |
| 69211C — Handle, Back Door Outside | ||||
| 69023-48010 |
Handle, Back Door Outside
1998-01 → —
|
MCU1# | — | |
| 69350 — Lock Assy, Back Door | ||||
| 69350-48010 |
Lock Assy, Back Door
1998-01 → —
|
MCU1# | — | |
| 69430C — Striker Assy, Back Door Lock | ||||
| 69430-48010 |
Striker Assy, Back Door Lock
1998-01 → —
|
MCU1# | — | |
| 69790 — Control Assy, Back Door Lock | ||||
| 69790-33020 |
Control Assy, Back Door Lock
1998-01 → —
|
MCU1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
