Toyota Lexus RX300
1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States
Discontinued model
Data version 2003-10

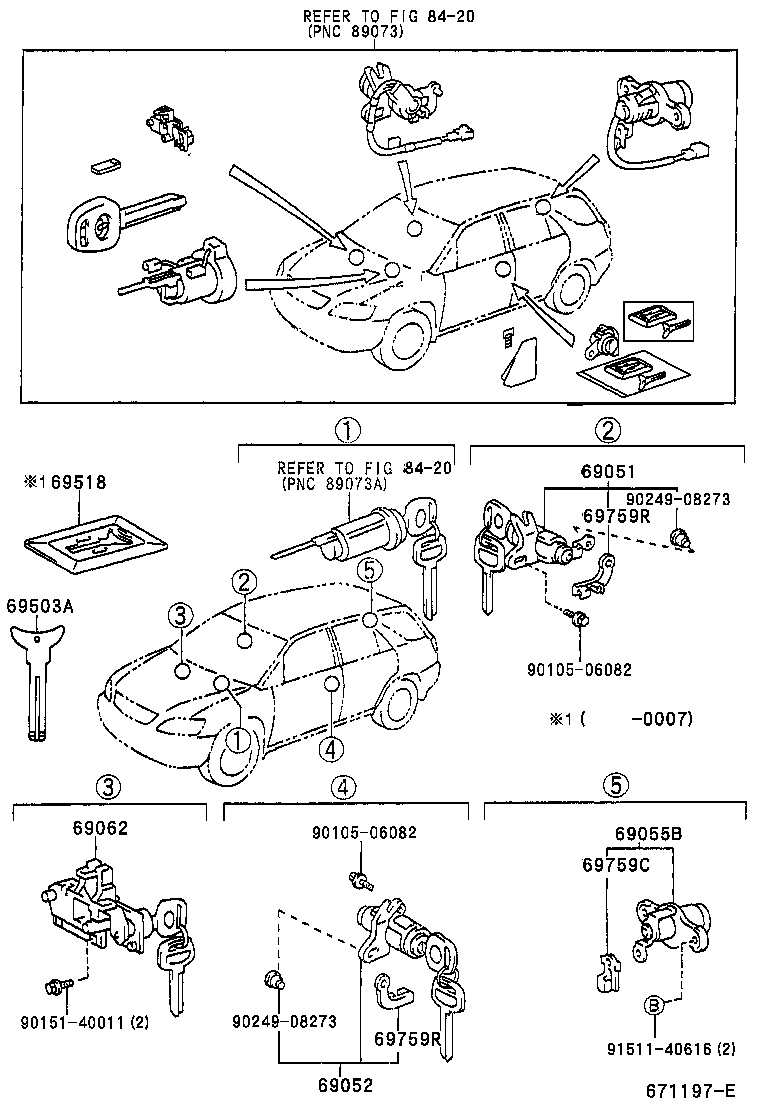

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 69051 — Cylinder & Key Set, Door Lock, RH | ||||
| 69051-48020 |
Cylinder & Key Set, Door Lock, RH
1998-01 → —
|
MCU1# | — | |
| 69052 — Cylinder & Key Set, Door Lock, LH | ||||
| 69052-48020 |
Cylinder & Key Set, Door Lock, LH
1998-01 → —
|
MCU1# | — | |
| 69055B — Cylinder & Key Set, Back Door Lock | ||||
| 69055-48020 |
Cylinder & Key Set, Back Door Lock
1998-01 → —
|
MCU1# | — | |
| 69062 — Cylinder & Key Set, Glove Compartment Lock | ||||
| 69056-48020 |
Cylinder & Key Set, Glove Compartment Lock
1998-01 → —
|
MCU1# | — | |
| 69503A — Key, Blank | ||||
| 90999-00233 note |
Key, Blank
2000-07 → —
|
MCU1# | — | |
| 69518 — Card, Spare Key | ||||
| 69518-50012 |
Card, Spare Key
1998-09 → 2000-07
ended
|
MCU1# | — | |
| 69759C — Snap, Back Door Lock Cylinder | ||||
| 69759-24080 |
Snap, Back Door Lock Cylinder
1998-01 → —
|
MCU1# | — | |
| 69759R — Snap, Front Door Lock Cylinder | ||||
| 69759-50110 note |
Snap, Front Door Lock Cylinder
1998-01 → —
|
MCU1# | — | |
| 69759-50120 note |
Snap, Front Door Lock Cylinder
1998-01 → —
|
MCU1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
