Toyota Lexus RX300
1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States
Discontinued model
Data version 2003-10

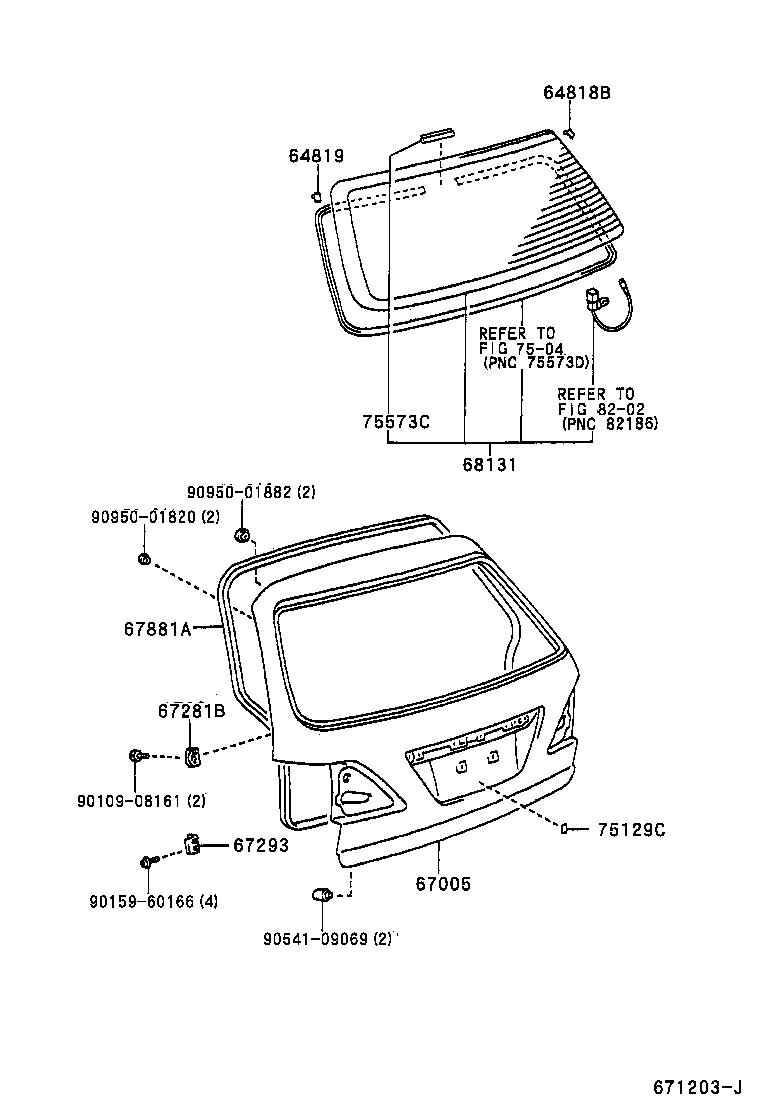

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 64818B — Spacer, Back Door Glass, NO.1 | ||||
| 64818-48010 |
Spacer, Back Door Glass, NO.1
1998-01 → —
|
MCU1# | — | |
| 64819 — Spacer, Back Window Glass, NO.2 | ||||
| 64819-48010 |
Spacer, Back Window Glass, NO.2
1998-01 → —
|
MCU1# | — | |
| 67005 — Panel Sub-assy, Back Door | ||||
| 67005-48030 |
Panel Sub-assy, Back Door
1998-01 → —
|
MCU1# | — | |
| 67005-48040 note |
Panel Sub-assy, Back Door
1999-08 → —
|
MCU1# | — | |
| 67281B — Stopper, Back Door, Lower | ||||
| 67281-21010 |
Stopper, Back Door, Lower
1998-01 → —
|
MCU1# | — | |
| 67293 — Cushion, Back Door Lower Stopper | ||||
| 67293-48010 note |
Cushion, Back Door Lower Stopper
1998-01 → —
|
MCU1# | — | |
| 67293-48030 note |
Cushion, Back Door Lower Stopper
1998-01 → 1998-08
ended
|
MCU1# | — | |
| 67293-48050 note |
Cushion, Back Door Lower Stopper
1998-08 → —
|
MCU1# | — | |
| 67881A — Weatherstrip, Back Door | ||||
| 67881-48010 |
Weatherstrip, Back Door
1998-01 → —
|
MCU1# | — | |
| 68131 — Glass, Back Door | ||||
| 68105-48040 note |
Glass, Back Door
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 68105-48070 note |
Glass, Back Door
2000-07 → —
|
MCU1# | — | |
| 75129C — Cushion, Rear Licence Plate | ||||
| 75129-13020 |
Cushion, Rear Licence Plate
1998-01 → —
|
MCU1# | — | |
| 75573C — Moulding, Back Window, Outside | ||||
| 75573-48010 |
Moulding, Back Window, Outside
2000-05 → 2000-07
ended
|
MCU1# | — | |
| 75573-48010 |
Moulding, Back Window, Outside
2000-07 → —
|
MCU1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
