Toyota Lexus RX300
1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States
Discontinued model
Data version 2003-10

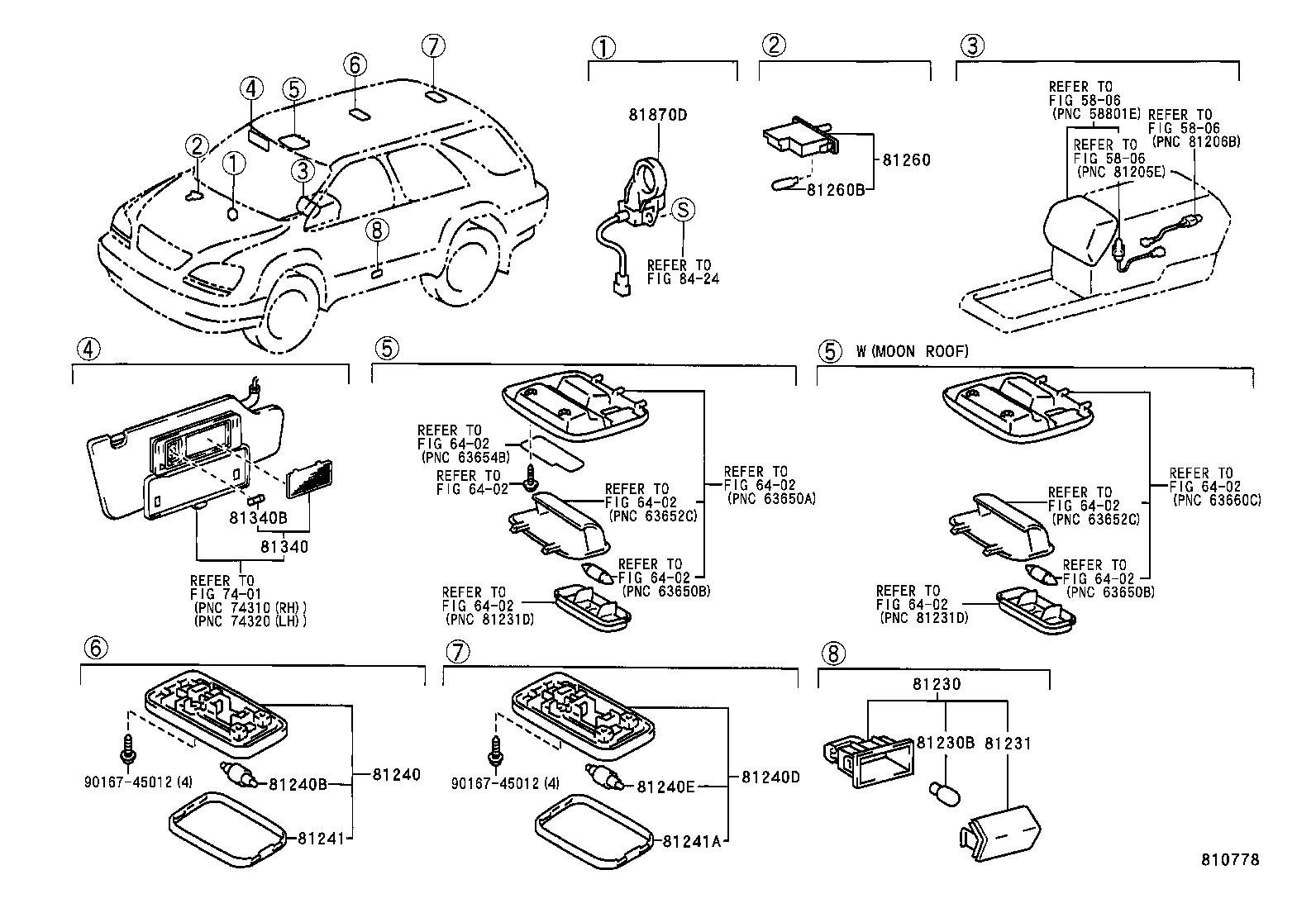

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81230 — Lamp Assy, Courtesy | ||||
| 81230-48010 |
Lamp Assy, Courtesy
1998-01 → —
|
MCU1# | — | |
| 81230B — Bulb(FOR COURTESY LAMP) | ||||
| 90981-12010 note |
Bulb(FOR COURTESY LAMP)
1998-01 → —
|
MCU1# | — | |
| 81231 — Lens, Courtesy Lamp | ||||
| 81231-50050 |
Lens, Courtesy Lamp
1998-01 → —
|
MCU1# | — | |
| 81240 — Lamp Assy, Room, NO.1 | ||||
| 81240-22120-A1 note |
Lamp Assy, Room, NO.1
1998-01 → —
|
MCU1# | — | |
| 81240-22120-B0 note |
Lamp Assy, Room, NO.1
1998-01 → 1999-01
ended
|
MCU1# | — | |
| 81240-22120-B1 note |
Lamp Assy, Room, NO.1
1999-01 → 2000-07
ended
|
MCU1# | — | |
| 81240-22120-B2 note |
Lamp Assy, Room, NO.1
2000-07 → —
|
MCU1# | — | |
| 81240B — Bulb, Room Lamp, NO.1 | ||||
| 90981-14004 note |
Bulb, Room Lamp, NO.1
1998-01 → —
|
MCU1# | — | |
| 81240D — Lamp Assy, Room, NO.2 | ||||
| 81240-22120-A1 note |
Lamp Assy, Room, NO.2
1998-01 → —
|
MCU1# | — | |
| 81240-22120-B0 note |
Lamp Assy, Room, NO.2
1998-01 → 1999-01
ended
|
MCU1# | — | |
| 81240-22120-B1 note |
Lamp Assy, Room, NO.2
1999-01 → 2000-07
ended
|
MCU1# | — | |
| 81240-22120-C0 note |
Lamp Assy, Room, NO.2
2000-07 → —
|
MCU1# | — | |
| 81240E — Bulb, Room Lamp, NO.2 | ||||
| 90981-14004 note |
Bulb, Room Lamp, NO.2
1998-01 → —
|
MCU1# | — | |
| 81241 — Lens, Room Lamp, NO.1 | ||||
| 81241-32031 |
Lens, Room Lamp, NO.1
1998-01 → —
|
MCU1# | — | |
| 81241A — Lens, Room Lamp, NO.2 | ||||
| 81241-32031 |
Lens, Room Lamp, NO.2
1998-01 → —
|
MCU1# | — | |
| 81260 — Lamp Assy, Glove Box | ||||
| 81260-22160 |
Lamp Assy, Glove Box
1998-01 → 2002-08
ended
|
MCU1# | — | |
| 81260-33030 |
Lamp Assy, Glove Box
2002-08 → —
|
MCU1# | — | |
| 81260B — Bulb(FOR GLOVE BOX) | ||||
| 90981-11018 note |
Bulb(FOR GLOVE BOX)
1998-01 → —
|
MCU1# | — | |
| 81340 — Lamp Assy, Vanity | ||||
| 81340-33090-A1 note |
Lamp Assy, Vanity
1998-01 → 1999-08
ended
|
MCU1# | — | |
| 81340-33090-B1 note |
Lamp Assy, Vanity
1999-01 → 1999-08
ended
|
MCU1# | — | |
| 81340-33090-B4 note |
Lamp Assy, Vanity
1998-01 → 1999-01
ended
|
MCU1# | — | |
| 81340-33130-A1 note |
Lamp Assy, Vanity
1999-08 → —
|
MCU1# | — | |
| 81340-33130-B1 note |
Lamp Assy, Vanity
1999-08 → 2000-07
ended
|
MCU1# | — | |
| 81340-33130-B4 note |
Lamp Assy, Vanity
2000-07 → —
|
MCU1# | — | |
| 81350-33040-A1 note |
Lamp Assy, Vanity
1998-01 → 1999-08
ended
|
MCU1# | — | |
| 81350-33040-B1 note |
Lamp Assy, Vanity
1999-01 → 1999-08
ended
|
MCU1# | — | |
| 81350-33040-B4 note |
Lamp Assy, Vanity
1998-01 → 1999-01
ended
|
MCU1# | — | |
| 81350-33050-A1 note |
Lamp Assy, Vanity
1999-08 → —
|
MCU1# | — | |
| 81350-33050-B1 note |
Lamp Assy, Vanity
1999-08 → 2000-07
ended
|
MCU1# | — | |
| 81350-33050-B4 note |
Lamp Assy, Vanity
2000-07 → —
|
MCU1# | — | |
| 81340B — Bulb (FOR VANITY LAMP) | ||||
| 90981-14003 note |
Bulb (FOR VANITY LAMP)
1998-01 → —
|
MCU1# | — | |
| 81870D — Lamp Assy, Key Cylinder | ||||
| 81870-48010 |
Lamp Assy, Key Cylinder
1998-01 → —
|
MCU1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
