Toyota Lexus RX300
1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States
Discontinued model
Data version 2003-10

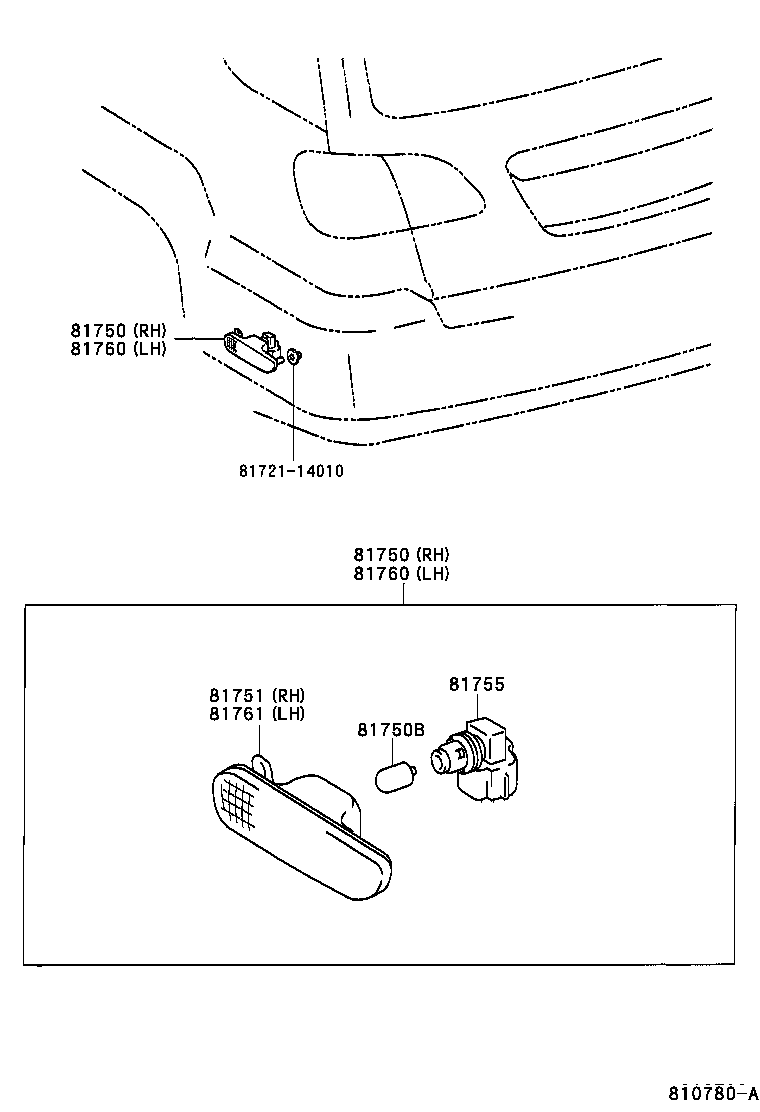

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81750 — Lamp Assy, Rear Side Marker, RH | ||||
| 81750-48010 |
Lamp Assy, Rear Side Marker, RH
1998-01 → —
|
MCU1# | — | |
| 81750B — Bulb, Rear Side Marker Lamp | ||||
| 90981-11020 note |
Bulb, Rear Side Marker Lamp
2000-07 → —
|
MCU1# | — | |
| 99132-12050 note |
Bulb, Rear Side Marker Lamp
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 81751 — Lens, Rear Side Marker Lamp, RH | ||||
| 81751-48010 |
Lens, Rear Side Marker Lamp, RH
1998-01 → —
|
MCU1# | — | |
| 81755 — Socket & Wire Sub-assy, Rear Side Marker Lamp | ||||
| 90075-60005 |
Socket & Wire Sub-assy, Rear Side Marker Lamp
1998-01 → —
|
MCU1# | — | |
| 81760 — Lamp Assy, Rear Side Marker, LH | ||||
| 81760-48010 |
Lamp Assy, Rear Side Marker, LH
1998-01 → —
|
MCU1# | — | |
| 81761 — Lens, Rear Side Marker Lamp, LH | ||||
| 81761-48010 |
Lens, Rear Side Marker Lamp, LH
1998-01 → —
|
MCU1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
