Toyota Lexus RX300
1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States
Discontinued model
Data version 2003-10

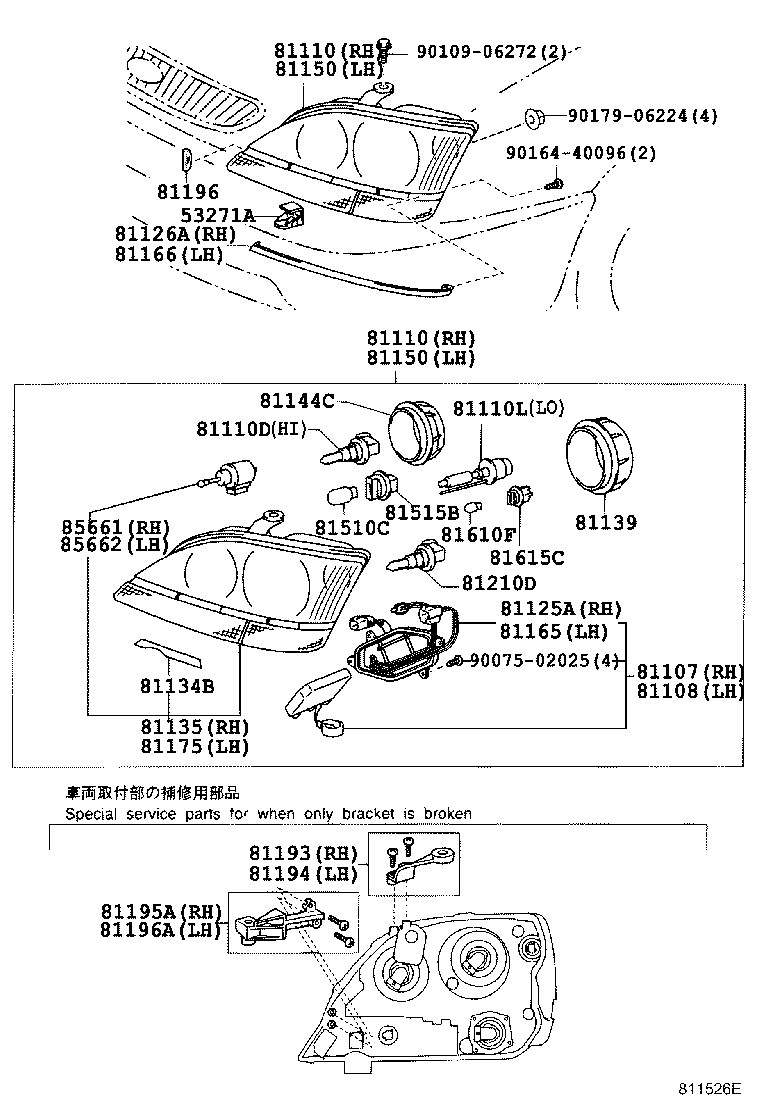

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53271A — Bracket, Headlamp Mounting | ||||
| 53271-12060 |
Bracket, Headlamp Mounting
1998-01 → —
|
MCU1# | — | |
| 81107 — Computer Sub-assy, Headlamp Light Control, RH | ||||
| 81107-48130 |
Computer Sub-assy, Headlamp Light Control, RH
2000-07 → —
|
MCU1# | — | |
| 81108 — Computer Sub-assy, Headlamp Light Control, LH | ||||
| 81108-48130 |
Computer Sub-assy, Headlamp Light Control, LH
2000-07 → —
|
MCU1# | — | |
| 81110 — Headlamp Assy, RH | ||||
| 81110-48030 |
Headlamp Assy, RH
1998-01 → 1998-05
ended
|
MCU1# | — | |
| 81110-48031 |
Headlamp Assy, RH
1998-05 → 2000-07
ended
|
MCU1# | — | |
| 81110-48050 note |
Headlamp Assy, RH
1999-08 → 2000-07
ended
|
MCU15 | — | |
| 81110-48080 |
Headlamp Assy, RH
2000-07 → —
|
MCU1# | — | |
| 81110-48110 note |
Headlamp Assy, RH
2000-07 → —
|
MCU15 | — | |
| 81110-48130 note |
Headlamp Assy, RH
2000-07 → —
|
MCU1# | — | |
| 81110D — Bulb(FOR HEADLAMP, NO.2) | ||||
| 90080-81040 note |
Bulb(FOR HEADLAMP, NO.2)
2000-07 → —
|
MCU1# | — | |
| 90080-81041 note |
Bulb(FOR HEADLAMP, NO.2)
1998-01 → —
|
MCU1# | — | |
| 81110L — Bulb, Discharge Headlamp | ||||
| 90981-20001 note |
Bulb, Discharge Headlamp
2000-07 → —
|
MCU1# | — | |
| 81125A — Cord, Headlamp, RH | ||||
| 81125-48130 |
Cord, Headlamp, RH
2000-07 → —
|
MCU1# | — | |
| 81126A — Plate, Headlamp, RH | ||||
| 81126-48010 |
Plate, Headlamp, RH
1998-01 → 1998-05
ended
|
MCU1# | — | |
| 81126-48011 |
Plate, Headlamp, RH
1998-05 → —
|
MCU1# | — | |
| 81134B — Tape, Headlamp Plate | ||||
| 81134-48010 |
Tape, Headlamp Plate
1998-01 → —
|
MCU1# | — | |
| 81135 — Unit Assy, Headlamp, RH | ||||
| 81130-48030 |
Unit Assy, Headlamp, RH
1998-01 → 1998-05
ended
|
MCU1# | — | |
| 81130-48031 |
Unit Assy, Headlamp, RH
1998-05 → 2000-07
ended
|
MCU1# | — | |
| 81130-48050 note |
Unit Assy, Headlamp, RH
1999-08 → 2000-07
ended
|
MCU15 | — | |
| 81130-48080 |
Unit Assy, Headlamp, RH
2000-07 → —
|
MCU1# | — | |
| 81130-48110 note |
Unit Assy, Headlamp, RH
2000-07 → —
|
MCU15 | — | |
| 81130-48130 note |
Unit Assy, Headlamp, RH
2000-07 → —
|
MCU1# | — | |
| 81139 — Cover, Headlamp Socket | ||||
| 81139-48040 |
Cover, Headlamp Socket
2000-07 → —
|
MCU1# | — | |
| 81144C — Cover, Headlamp Socket | ||||
| 90075-66004 |
Cover, Headlamp Socket
2000-07 → —
|
MCU1# | — | |
| 81150 — Headlamp Assy, LH | ||||
| 81150-48030 |
Headlamp Assy, LH
1998-01 → 1998-05
ended
|
MCU1# | — | |
| 81150-48031 |
Headlamp Assy, LH
1998-05 → 2000-07
ended
|
MCU1# | — | |
| 81150-48050 note |
Headlamp Assy, LH
1999-08 → 2000-07
ended
|
MCU15 | — | |
| 81150-48080 |
Headlamp Assy, LH
2000-07 → —
|
MCU1# | — | |
| 81150-48110 note |
Headlamp Assy, LH
2000-07 → —
|
MCU15 | — | |
| 81150-48130 note |
Headlamp Assy, LH
2000-07 → —
|
MCU1# | — | |
| 81165 — Cord, Headlamp, LH | ||||
| 81165-48130 |
Cord, Headlamp, LH
2000-07 → —
|
MCU1# | — | |
| 81166 — Plate, Headlamp, LH | ||||
| 81166-48010 |
Plate, Headlamp, LH
1998-01 → 1998-05
ended
|
MCU1# | — | |
| 81166-48011 |
Plate, Headlamp, LH
1998-05 → —
|
MCU1# | — | |
| 81175 — Unit Assy, Headlamp, LH | ||||
| 81170-48030 |
Unit Assy, Headlamp, LH
1998-01 → 1998-05
ended
|
MCU1# | — | |
| 81170-48031 |
Unit Assy, Headlamp, LH
1998-05 → 2000-07
ended
|
MCU1# | — | |
| 81170-48050 note |
Unit Assy, Headlamp, LH
1999-08 → 2000-07
ended
|
MCU15 | — | |
| 81170-48080 |
Unit Assy, Headlamp, LH
2000-07 → —
|
MCU1# | — | |
| 81170-48110 note |
Unit Assy, Headlamp, LH
2000-07 → —
|
MCU15 | — | |
| 81170-48130 note |
Unit Assy, Headlamp, LH
2000-07 → —
|
MCU1# | — | |
| 81193 — Retainer, Headlamp Protector, Upper RH | ||||
| 81193-48010 |
Retainer, Headlamp Protector, Upper RH
2000-07 → —
|
MCU1# | — | |
| 81194 — Retainer, Headlamp Protector, Upper LH | ||||
| 81194-48010 |
Retainer, Headlamp Protector, Upper LH
2000-07 → —
|
MCU1# | — | |
| 81195A — Retainer, Headlamp Protector, Lower RH | ||||
| 81195-48010 |
Retainer, Headlamp Protector, Lower RH
2000-07 → —
|
MCU1# | — | |
| 81196 — Retainer, Headlamp | ||||
| 81196-48010 |
Retainer, Headlamp
1998-05 → —
|
MCU1# | — | |
| 81196A — Retainer, Headlamp Protector, Lower LH | ||||
| 81196-48020 |
Retainer, Headlamp Protector, Lower LH
2000-07 → —
|
MCU1# | — | |
| 81210D — Bulb, Fog Lamp | ||||
| 90080-81040 note |
Bulb, Fog Lamp
1998-01 → —
|
MCU1# | — | |
| 90080-81041 note |
Bulb, Fog Lamp
2000-07 → —
|
MCU1# | — | |
| 81510C — Bulb (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-13043 note |
Bulb (FOR FRONT TURN SIGNAL LAMP)
1998-01 → —
|
MCU1# | — | |
| 81515B — Socket, Front Turn Signal Lamp | ||||
| 90075-99128 |
Socket, Front Turn Signal Lamp
1998-01 → —
|
MCU1# | — | |
| 81610F — Bulb(FOR CLEARANCE LAMP) | ||||
| 99132-12050 note |
Bulb(FOR CLEARANCE LAMP)
1998-01 → —
|
MCU1# | — | |
| 81615C — Socket & Wire, Clearance Lamp | ||||
| 90075-60016 note |
Socket & Wire, Clearance Lamp
1999-08 → —
|
MCU1# | — | |
| 99159-10228 |
Socket & Wire, Clearance Lamp
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 85661 — Motor, Headlamp Leveling, RH | ||||
| 85661-50040 |
Motor, Headlamp Leveling, RH
2000-07 → —
|
MCU1# | — | |
| 85662 — Motor, Headlamp Leveling, LH | ||||
| 85661-50040 |
Motor, Headlamp Leveling, LH
2000-07 → —
|
MCU1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
