Toyota Lexus RX300
1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States
Discontinued model
Data version 2003-10

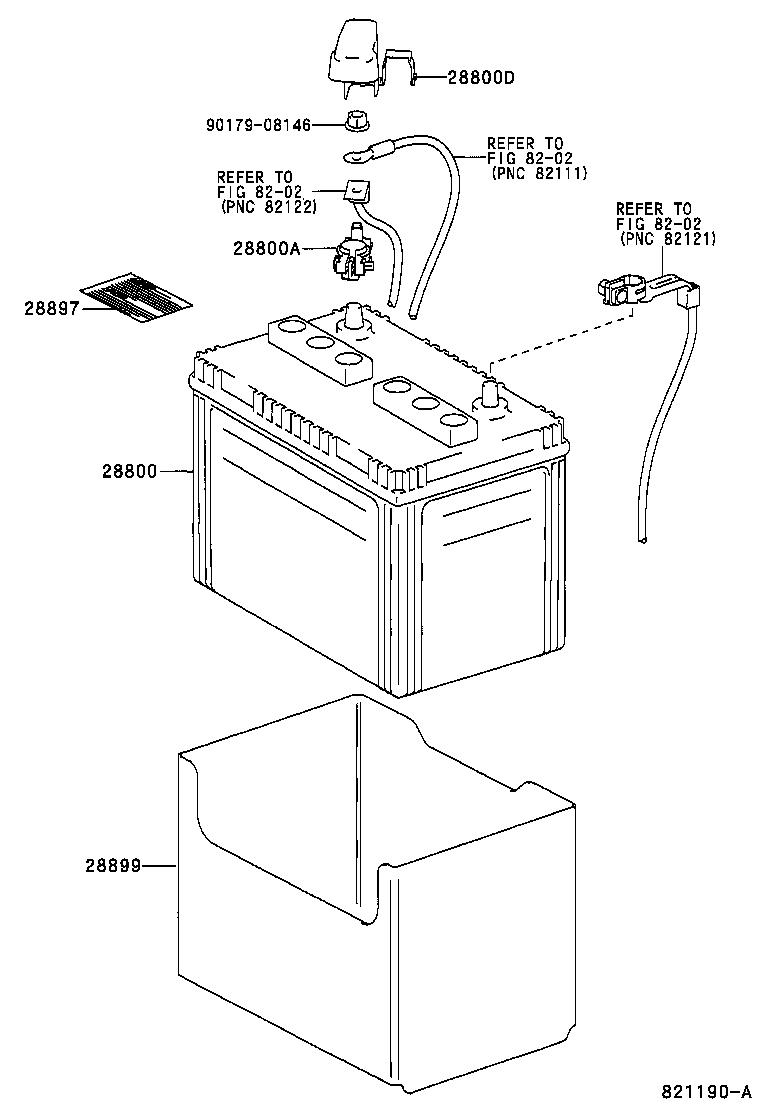

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28800 — Battery | ||||
| 28800-64132 note |
Battery
2000-07 → —
|
1MZFE MCU1# | — | |
| 28800-74142 note |
Battery
1998-01 → 2000-07
ended
|
1MZFE MCU1# | — | |
| 28800A — Terminal, Battery Positive | ||||
| 90982-05030 |
Terminal, Battery Positive
1998-01 → 1999-12
ended
|
1MZFE MCU1# | — | |
| 90982-05058 |
Terminal, Battery Positive
1999-12 → —
|
1MZFE MCU1# | — | |
| 28800D — Cover, Connector(FOR BATTERY TERMINAL) | ||||
| 82821-20350 |
Cover, Connector(FOR BATTERY TERMINAL)
1998-01 → —
|
1MZFE MCU1# | — | |
| 28897 — Plate, Battery Caution | ||||
| 28897-46020 note |
Plate, Battery Caution
1998-01 → —
|
1MZFE MCU1# | — | |
| 28898-20010 |
Plate, Battery Caution
1998-01 → —
|
1MZFE MCU1# | — | |
| 28899 — Insulator, Battery | ||||
| 28899-64110 |
Insulator, Battery
1998-01 → 2000-07
ended
|
1MZFE MCU1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
