Toyota Lexus RX300
1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States
Discontinued model
Data version 2003-10

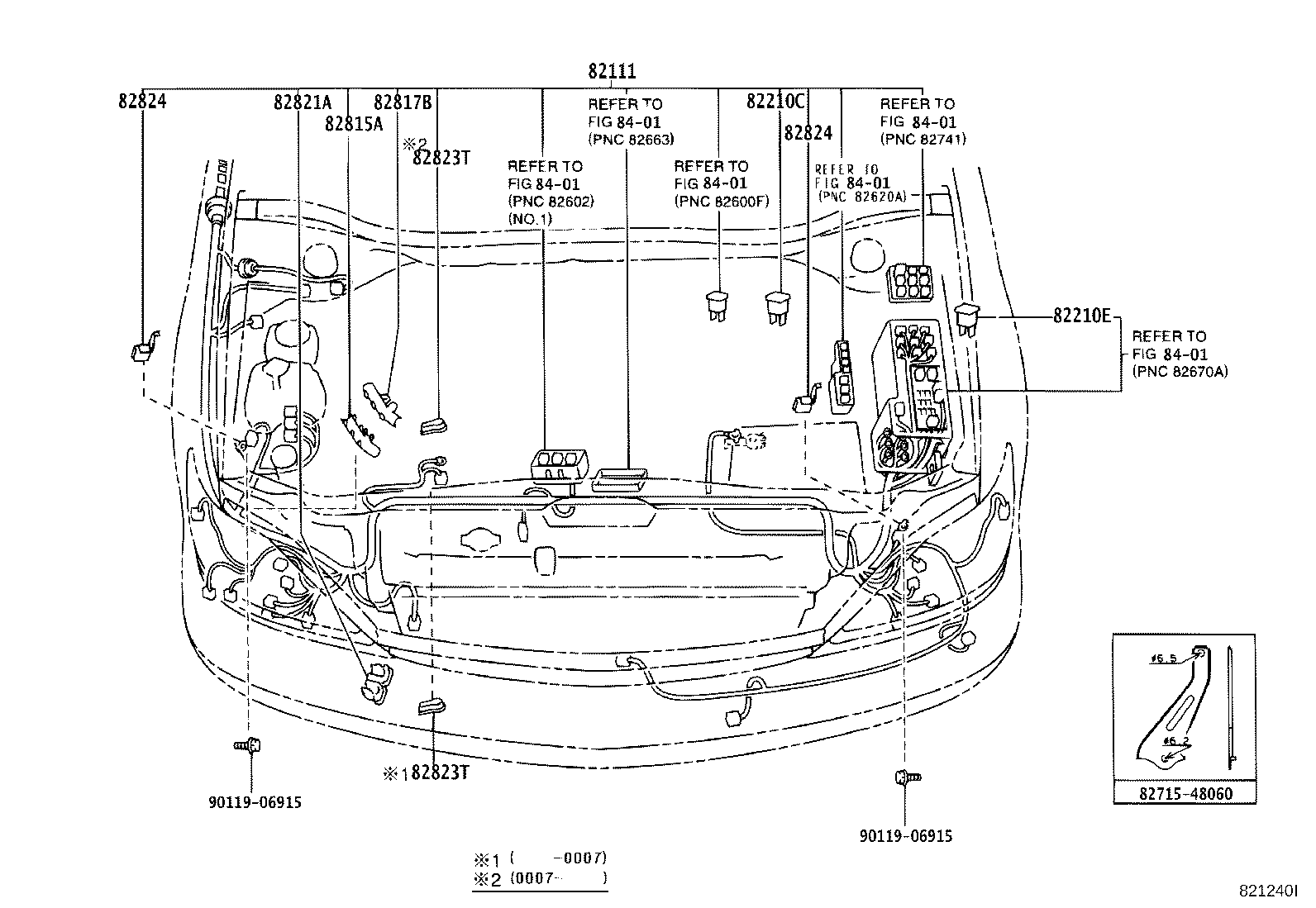

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82111 — Wire, Engine Room Main | ||||
| 82111-48060 |
Wire, Engine Room Main
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 82111-48070 note |
Wire, Engine Room Main
1998-01 → 2000-07
ended
|
MCU10 | — | |
| 82111-48071 |
Wire, Engine Room Main
2000-07 → 2002-08
ended
|
MCU1# | — | |
| 82111-48072 |
Wire, Engine Room Main
2002-08 → —
|
MCU1# | — | |
| 82111-48170 note |
Wire, Engine Room Main
2000-07 → 2002-08
ended
|
MCU1# | — | |
| 82111-48171 note |
Wire, Engine Room Main
2002-08 → —
|
MCU1# | — | |
| 82111-48430 note |
Wire, Engine Room Main
2001-08 → 2002-08
ended
|
MCU15 | — | |
| 82111-48431 note |
Wire, Engine Room Main
2002-08 → —
|
MCU15 | — | |
| 82111-48440 note |
Wire, Engine Room Main
2001-08 → 2002-08
ended
|
MCU15 | — | |
| 82111-48441 note |
Wire, Engine Room Main
2002-08 → —
|
MCU15 | — | |
| 82210C — Fusible Link | ||||
| 90982-08202 note |
Fusible Link
1998-01 → —
|
MCU1# | — | |
| 90982-08283 note |
Fusible Link
1998-01 → —
|
MCU1# | — | |
| 90982-08284 note |
Fusible Link
1998-01 → —
|
MCU1# | — | |
| 90982-08285 note |
Fusible Link
1998-01 → —
|
MCU1# | — | |
| 90982-08286 note |
Fusible Link
1998-01 → —
|
MCU1# | — | |
| 82210E — Fusible Link | ||||
| 90982-08285 note |
Fusible Link
1998-01 → —
|
MCU1# | — | |
| 82815A — Cover, Wiring Harness Protector | ||||
| 82815-48010 |
Cover, Wiring Harness Protector
1998-01 → —
|
MCU1# | — | |
| 82817B — Protector, Wiring Harness, NO.3 | ||||
| 82817-48010 |
Protector, Wiring Harness, NO.3
1998-01 → —
|
MCU1# | — | |
| 82821A — Cover, Connector | ||||
| 82821-33150 |
Cover, Connector
2000-01 → 2000-07
ended
|
MCU1# | — | |
| 82823T — Cap, Alternator Terminal | ||||
| 82823-22050 |
Cap, Alternator Terminal
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 82823-22080 |
Cap, Alternator Terminal
2000-07 → —
|
MCU1# | — | |
| 82824 — Connector, Wiring Harness | ||||
| 82824-48020 |
Connector, Wiring Harness
1998-01 → —
|
MCU1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
