Toyota Lexus RX300
1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States
Discontinued model
Data version 2003-10

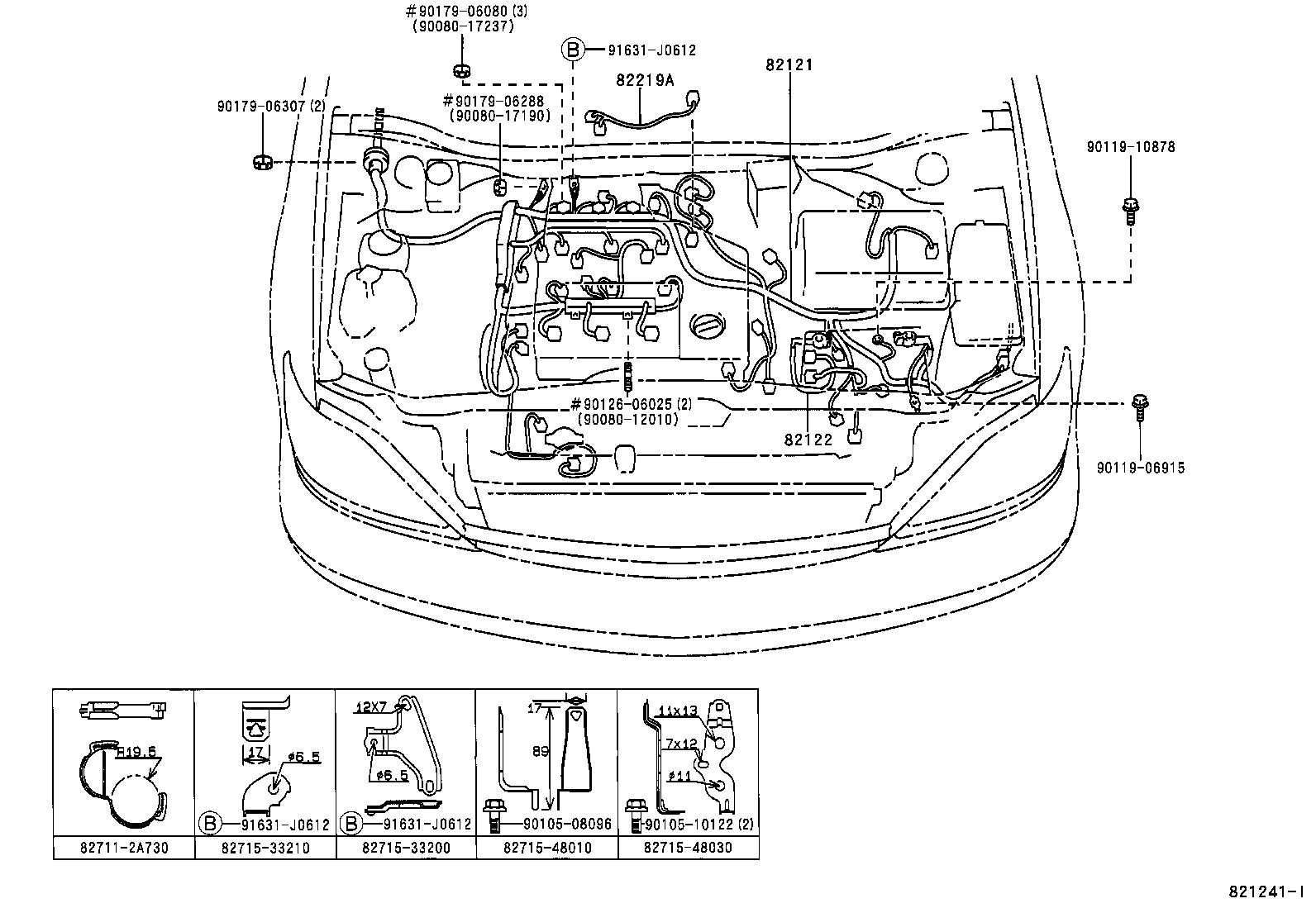

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82121 — Wire, Engine | ||||
| 82121-48030 |
Wire, Engine
1998-01 → 1999-08
ended
|
MCU1# | — | |
| 82121-48031 |
Wire, Engine
1999-08 → 2000-07
ended
|
MCU1# | — | |
| 82121-48032 |
Wire, Engine
2000-07 → —
|
MCU1# | — | |
| 82122 — Wire, Engine, NO.2 | ||||
| 82122-48010 |
Wire, Engine, NO.2
1998-01 → —
|
MCU1# | — | |
| 82219A — Wire, Sensor | ||||
| 82219-07010 |
Wire, Sensor
1998-01 → 1998-06
ended
|
MCU1# | — | |
| 82219-07010 note |
Wire, Sensor
2002-08 → —
|
MCU1# | — | |
| 82219-33030 |
Wire, Sensor
1998-06 → 2002-08
ended
|
MCU1# | — | |
| 82219-33030 note |
Wire, Sensor
2002-08 → —
|
MCU1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
