Toyota Lexus RX300
1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States
Discontinued model
Data version 2003-10

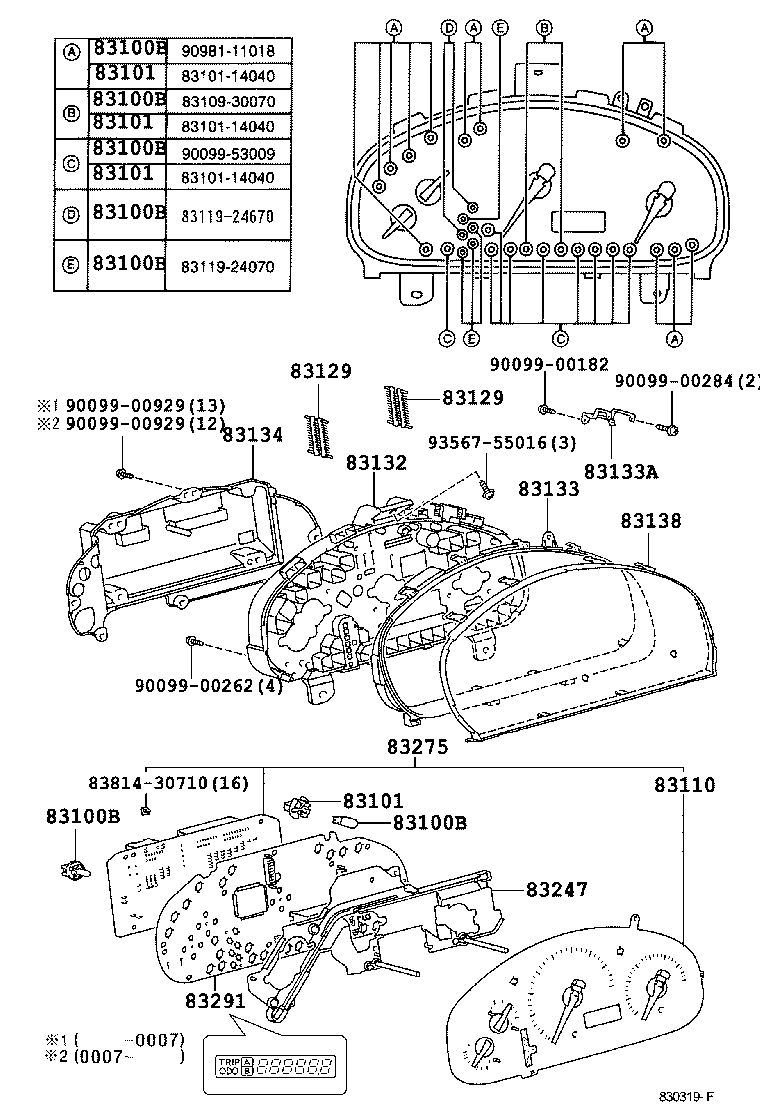

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83100B — Bulb, Combination Meter, NO.1 | ||||
| 83109-30070 note |
Bulb, Combination Meter, NO.1
1998-01 → —
|
MCU1# | — | |
| 83119-24070 note |
Bulb, Combination Meter, NO.1
1998-01 → —
|
MCU1# | — | |
| 83119-24670 note |
Bulb, Combination Meter, NO.1
1998-01 → —
|
MCU1# | — | |
| 90099-53009 note |
Bulb, Combination Meter, NO.1
1998-01 → —
|
MCU1# | — | |
| 90981-11018 note |
Bulb, Combination Meter, NO.1
1998-01 → —
|
MCU1# | — | |
| 83101 — Socket Sub-assy, Combination Meter Bulb | ||||
| 83101-14040 note |
Socket Sub-assy, Combination Meter Bulb
1998-01 → —
|
MCU1# | — | |
| 83110 — Speedometer Assy | ||||
| 83220-48020 |
Speedometer Assy
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 83220-48021 |
Speedometer Assy
2000-07 → —
|
MCU1# | — | |
| 83220-48030 note |
Speedometer Assy
1998-01 → 2000-07
ended
|
MCU10 | — | |
| 83220-48030 note |
Speedometer Assy
1998-01 → 2000-07
ended
|
MCU15 | — | |
| 83220-48031 note |
Speedometer Assy
2000-07 → —
|
MCU10 | — | |
| 83220-48031 note |
Speedometer Assy
2000-07 → —
|
MCU15 | — | |
| 83129 — Wire, Meter | ||||
| 83875-48010 |
Wire, Meter
1998-01 → —
|
MCU1# | — | |
| 83132 — Case, Combination Meter | ||||
| 83841-48020 |
Case, Combination Meter
1998-01 → —
|
MCU1# | — | |
| 83133 — Plate, Combination Meter, NO.1 | ||||
| 83811-48010 |
Plate, Combination Meter, NO.1
1998-01 → —
|
MCU1# | — | |
| 83133A — Plate, Combination Meter, NO.2 | ||||
| 83812-48010 |
Plate, Combination Meter, NO.2
1998-01 → —
|
MCU1# | — | |
| 83134 — Cover, Combination Meter, NO.1 | ||||
| 83821-48010 |
Cover, Combination Meter, NO.1
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 83821-48040 |
Cover, Combination Meter, NO.1
2000-07 → —
|
MCU1# | — | |
| 83138 — Glass, Speedometer | ||||
| 83852-48020 |
Glass, Speedometer
1998-01 → —
|
MCU1# | — | |
| 83247 — Plate, Meter Circuit | ||||
| 83864-48020 |
Plate, Meter Circuit
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 83864-48021 |
Plate, Meter Circuit
2000-07 → —
|
MCU1# | — | |
| 83275 — Plate,Computer Meter Circuit NO.1 | ||||
| 83275-48020 |
Plate,Computer Meter Circuit NO.1
1998-01 → 1999-11
ended
|
MCU1# | — | |
| 83275-48030 note |
Plate,Computer Meter Circuit NO.1
1998-01 → 1999-11
ended
|
MCU1# | — | |
| 83801-48020 |
Plate,Computer Meter Circuit NO.1
1999-11 → 2000-07
ended
|
MCU1# | — | |
| 83801-48021 |
Plate,Computer Meter Circuit NO.1
2000-07 → —
|
MCU1# | — | |
| 83801-48030 note |
Plate,Computer Meter Circuit NO.1
1999-11 → 2000-07
ended
|
MCU10 | — | |
| 83801-48030 note |
Plate,Computer Meter Circuit NO.1
1999-11 → 2000-07
ended
|
MCU15 | — | |
| 83801-48031 note |
Plate,Computer Meter Circuit NO.1
2000-07 → —
|
MCU10 | — | |
| 83801-48031 note |
Plate,Computer Meter Circuit NO.1
2000-07 → —
|
MCU15 | — | |
| 83291 — Computer, Combination Meter | ||||
| 83291-48020 |
Computer, Combination Meter
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 83291-48021 |
Computer, Combination Meter
2000-07 → 2003-02
ended
|
MCU1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
