Toyota Lexus RX300
1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States
Discontinued model
Data version 2003-10

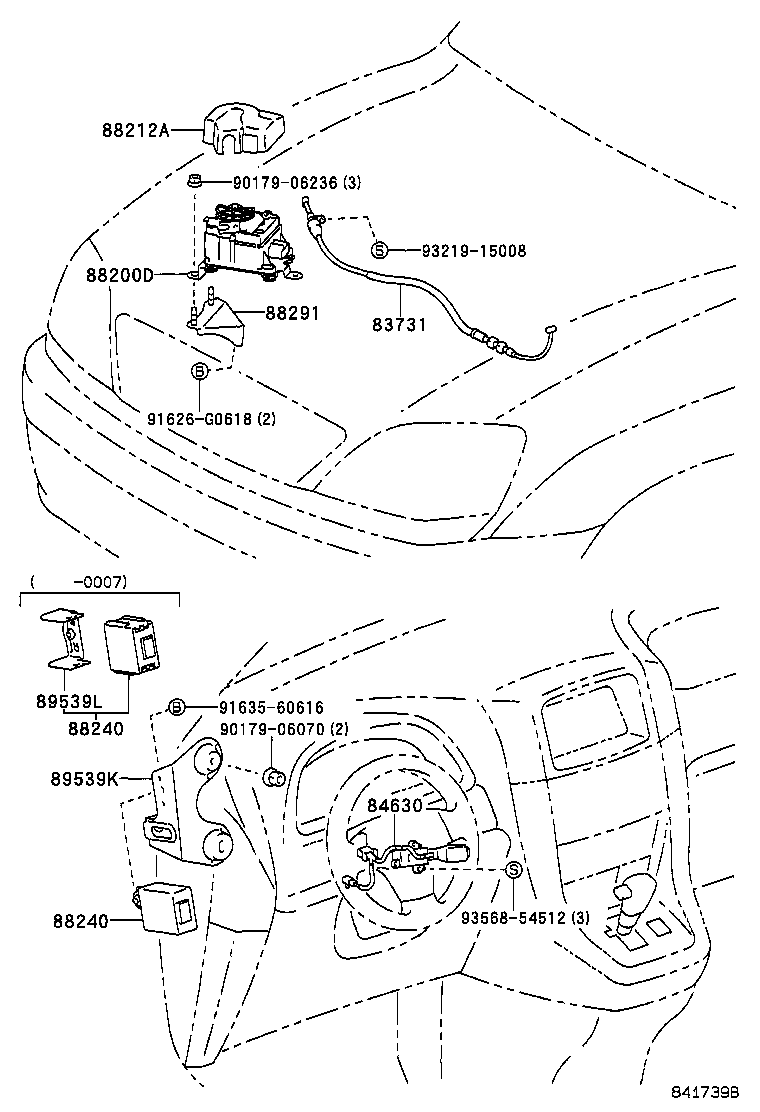

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83731 — Cable, Cruise Control | ||||
| 83731-48010 |
Cable, Cruise Control
1998-01 → —
|
MCU1# | — | |
| 84630 — Switch Assy, Cruise Control Main | ||||
| 84630-30220 |
Switch Assy, Cruise Control Main
2000-07 → —
|
MCU1# | — | |
| 84630-48010 |
Switch Assy, Cruise Control Main
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 88200D — Actuator Assy, Cruise Control | ||||
| 88200-48010 |
Actuator Assy, Cruise Control
1998-01 → —
|
MCU1# | — | |
| 88212A — Cover, Cruise Control Actuator | ||||
| 88212-24050 |
Cover, Cruise Control Actuator
1998-01 → —
|
MCU1# | — | |
| 88240 — Computer Assy, Cruise Control | ||||
| 88240-48010 |
Computer Assy, Cruise Control
1998-01 → 1999-11
ended
|
MCU1# | — | |
| 88240-48011 |
Computer Assy, Cruise Control
1999-11 → 2000-07
ended
|
MCU1# | — | |
| 88240-48020 |
Computer Assy, Cruise Control
2000-07 → —
|
MCU1# | — | |
| 88291 — Bracket, Cruise Control(AUTO DRIVE), NO.1 | ||||
| 88291-48010 |
Bracket, Cruise Control(AUTO DRIVE), NO.1
1998-01 → —
|
MCU1# | — | |
| 89539K — Bracket, Computer NO.1 | ||||
| 89539-48010 |
Bracket, Computer NO.1
1998-01 → 2000-03
ended
|
MCU1# | — | |
| 89539-48030 |
Bracket, Computer NO.1
2000-03 → —
|
MCU1# | — | |
| 89539L — Bracket, Computer NO.2 | ||||
| 89539-48020 |
Bracket, Computer NO.2
1998-01 → 2000-07
ended
|
MCU1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
