Toyota Lexus RX300
1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States
Discontinued model
Data version 2003-10

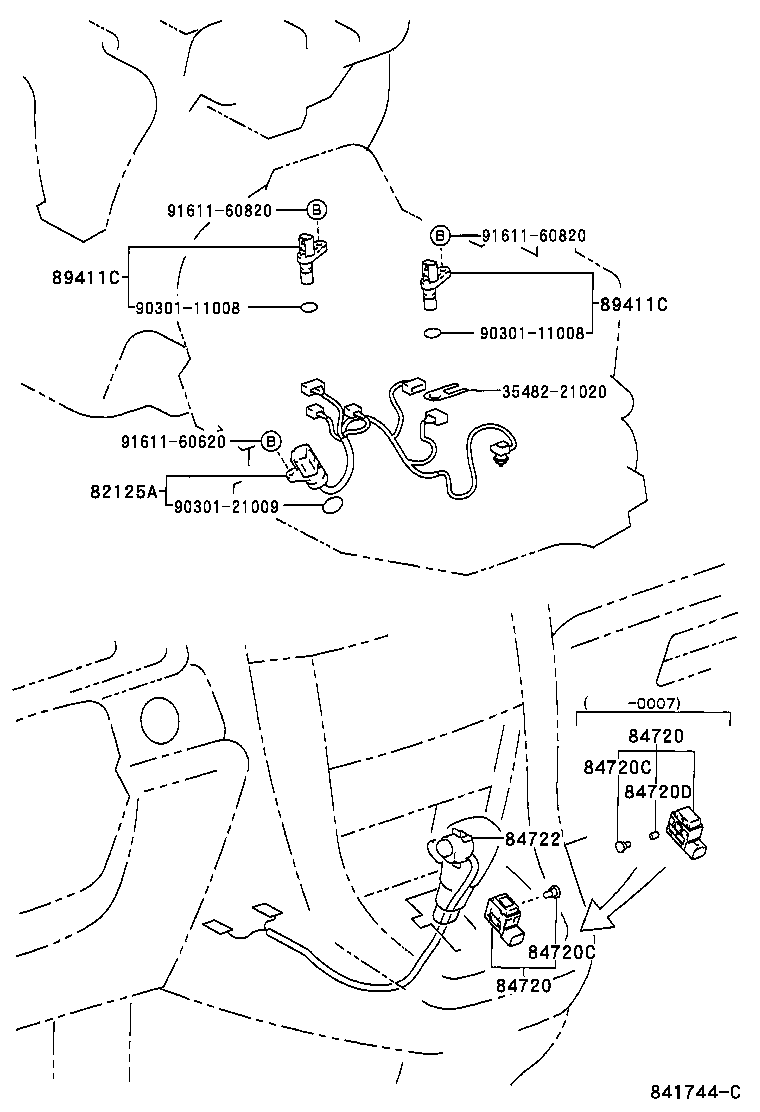

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82125A — Wire, Transmission | ||||
| 82125-21030 |
Wire, Transmission
1998-01 → 2001-11
ended
|
MCU1# | — | |
| 82125-28180 |
Wire, Transmission
2001-11 → —
|
MCU1# | — | |
| 84720 — Switch Assy, Pattern Select | ||||
| 84720-48010 |
Switch Assy, Pattern Select
2000-07 → —
|
MCU1# | — | |
| 84720-50050 |
Switch Assy, Pattern Select
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 84720C — Bulb(FOR PATTERN SELECT SWITCH) | ||||
| 84999-10820 note |
Bulb(FOR PATTERN SELECT SWITCH)
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 90010-01039 note |
Bulb(FOR PATTERN SELECT SWITCH)
2000-07 → —
|
MCU1# | — | |
| 84720D — Cap, Pattern Select Switch | ||||
| 84998-10670 |
Cap, Pattern Select Switch
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 84722 — Switch, Transmission Control | ||||
| 84722-48020-B0 note |
Switch, Transmission Control
1998-01 → 1999-08
ended
|
MCU1# | — | |
| 84722-48020-E0 note |
Switch, Transmission Control
1998-01 → 1999-08
ended
|
MCU1# | — | |
| 84722-48030-B0 note |
Switch, Transmission Control
1999-08 → 2000-07
ended
|
MCU1# | — | |
| 84722-48030-C0 note |
Switch, Transmission Control
2000-07 → —
|
MCU1# | — | |
| 84722-48030-E0 note |
Switch, Transmission Control
1999-08 → —
|
MCU1# | — | |
| 89411C — Sensor, Speed | ||||
| 89411-33010 note |
Sensor, Speed
1998-01 → —
|
MCU1# | — | |
| 89413-24010 note |
Sensor, Speed
1998-01 → —
|
MCU1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
