Toyota Lexus RX300
1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States
Discontinued model
Data version 2003-10

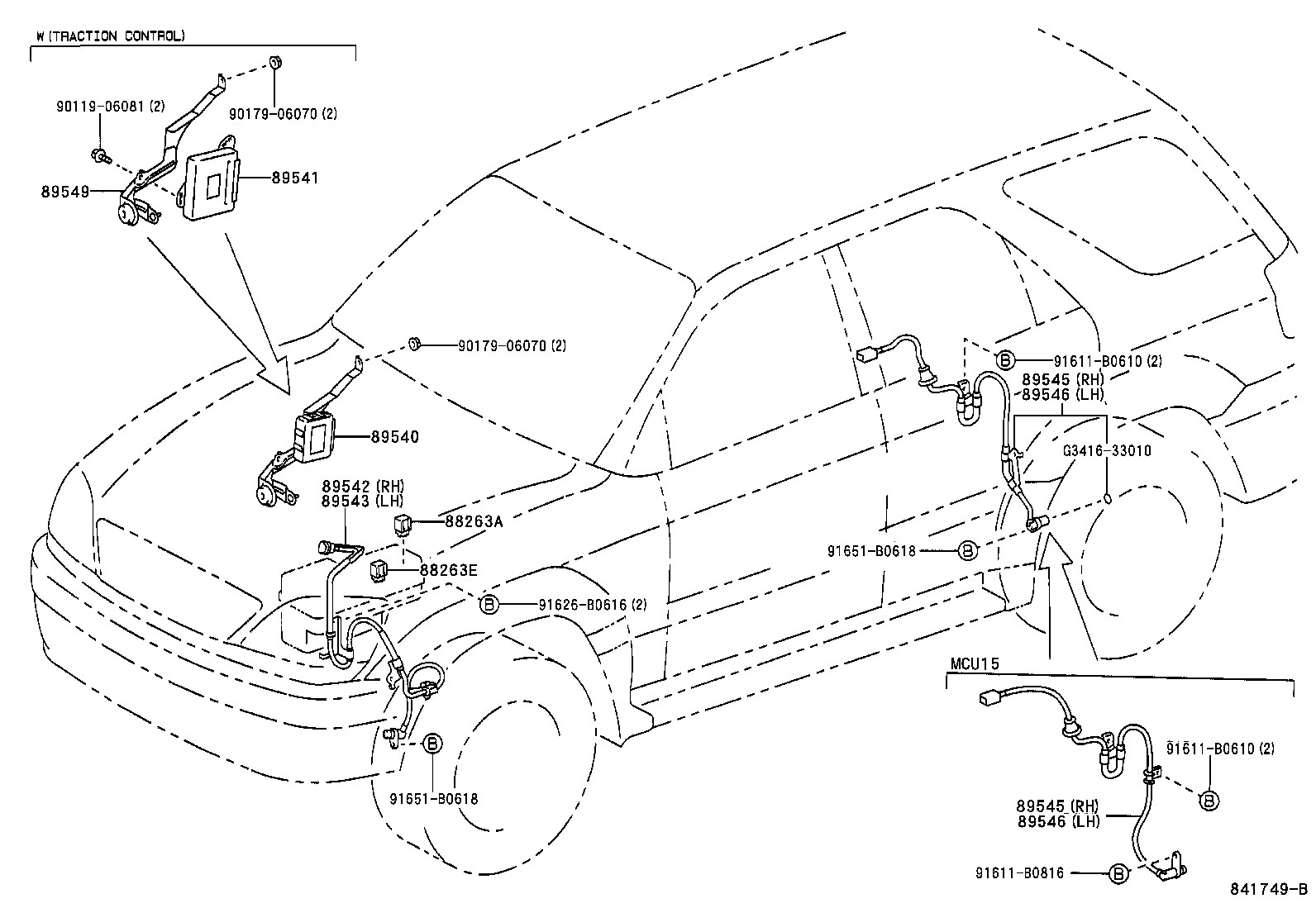

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88263A — Relay, Skid Control | ||||
| 88263-14110 |
Relay, Skid Control
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 88263-24020 |
Relay, Skid Control
2000-07 → 2002-08
ended
|
MCU1# | — | |
| 88263-30150 |
Relay, Skid Control
2002-08 → —
|
MCU1# | — | |
| 88263E — Relay, Skid Control NO.2 | ||||
| 88263-24030 |
Relay, Skid Control NO.2
1998-01 → —
|
MCU1# | — | |
| 89540 — Computer Assy, Skid Control | ||||
| 89540-48020 |
Computer Assy, Skid Control
1998-01 → 2000-07
ended
|
MCU10 | — | |
| 89540-48040 |
Computer Assy, Skid Control
1998-01 → 2000-07
ended
|
MCU15 | — | |
| 89540-48120 |
Computer Assy, Skid Control
2000-07 → 2002-08
ended
|
MCU10 | — | |
| 89540-48140 |
Computer Assy, Skid Control
2000-07 → 2001-05
ended
|
MCU15 | — | |
| 89540-48141 |
Computer Assy, Skid Control
2001-05 → 2002-08
ended
|
MCU15 | — | |
| 89540-48280 |
Computer Assy, Skid Control
2002-08 → —
|
MCU10 | — | |
| 89540-48290 |
Computer Assy, Skid Control
2002-08 → —
|
MCU15 | — | |
| 89541 — Computer, Skid Control | ||||
| 89541-48040 |
Computer, Skid Control
1998-01 → 2000-07
ended
|
MCU10 | — | |
| 89542 — Sensor, Speed, Front RH | ||||
| 89542-48010 |
Sensor, Speed, Front RH
1998-01 → —
|
MCU1# | — | |
| 89543 — Sensor, Speed, Front LH | ||||
| 89543-48010 |
Sensor, Speed, Front LH
1998-01 → —
|
MCU1# | — | |
| 89545 — Sensor, Speed, Rear RH | ||||
| 89545-48010 |
Sensor, Speed, Rear RH
1998-01 → —
|
MCU10 | — | |
| 89545-48020 |
Sensor, Speed, Rear RH
1998-01 → —
|
MCU15 | — | |
| 89546 — Sensor, Speed, Rear LH | ||||
| 89546-48010 |
Sensor, Speed, Rear LH
1998-01 → —
|
MCU10 | — | |
| 89546-48020 |
Sensor, Speed, Rear LH
1998-01 → —
|
MCU15 | — | |
| 89549 — Bracket, Skid Control Computer | ||||
| 89549-48030 |
Bracket, Skid Control Computer
1998-01 → 2000-07
ended
|
MCU10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
