Toyota Lexus RX300
1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States
Discontinued model
Data version 2003-10

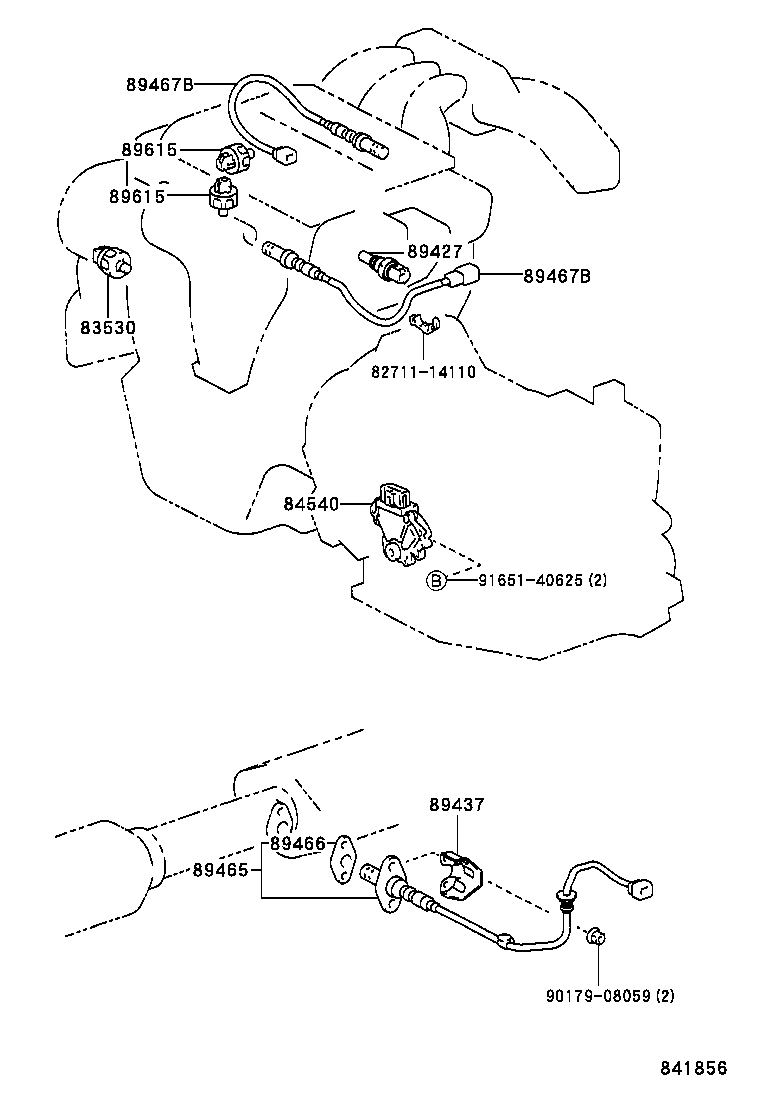

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83530 — Switch Assy, Oil Pressure (FOR ENGINE) | ||||
| 83530-0E010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2002-05 → —
|
MCU1# | — | |
| 83530-28020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
1998-02 → —
|
MCU1# | — | |
| 83530-30090 |
Switch Assy, Oil Pressure (FOR ENGINE)
1998-01 → 1998-02
ended
|
MCU1# | — | |
| 83530-60020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
1998-02 → —
|
MCU1# | — | |
| 84540 — Switch Assy, Neutral Start | ||||
| 84540-12200 note |
Switch Assy, Neutral Start
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 84540-12210 note |
Switch Assy, Neutral Start
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 84540-32110 |
Switch Assy, Neutral Start
2000-07 → —
|
MCU1# | — | |
| 89427 — Switch, Temperature Detect | ||||
| 89428-41010 |
Switch, Temperature Detect
1998-01 → —
|
MCU1# | — | |
| 89437 — Cover, Sensor | ||||
| 89437-48010 |
Cover, Sensor
1998-01 → —
|
MCU1# | — | |
| 89465 — Sensor, Oxygen | ||||
| 89465-49075 |
Sensor, Oxygen
1998-01 → —
|
MCU1# | — | |
| 89466 — Gasket, Oxygen Sensor | ||||
| 89466-20020 |
Gasket, Oxygen Sensor
1998-01 → —
|
MCU1# | — | |
| 89467B — Sensor, Air Fuel Ratio | ||||
| 89467-48010 |
Sensor, Air Fuel Ratio
1998-01 → 1999-05
ended
|
MCU1# | — | |
| 89467-48011 |
Sensor, Air Fuel Ratio
1999-05 → —
|
MCU1# | — | |
| 89615 — Sensor, Knock Control | ||||
| 89615-12040 |
Sensor, Knock Control
1998-01 → 1999-08
ended
|
MCU1# | — | |
| 89615-12090 |
Sensor, Knock Control
1999-08 → —
|
MCU1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
