Toyota Lexus RX300
1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States
Discontinued model
Data version 2003-10

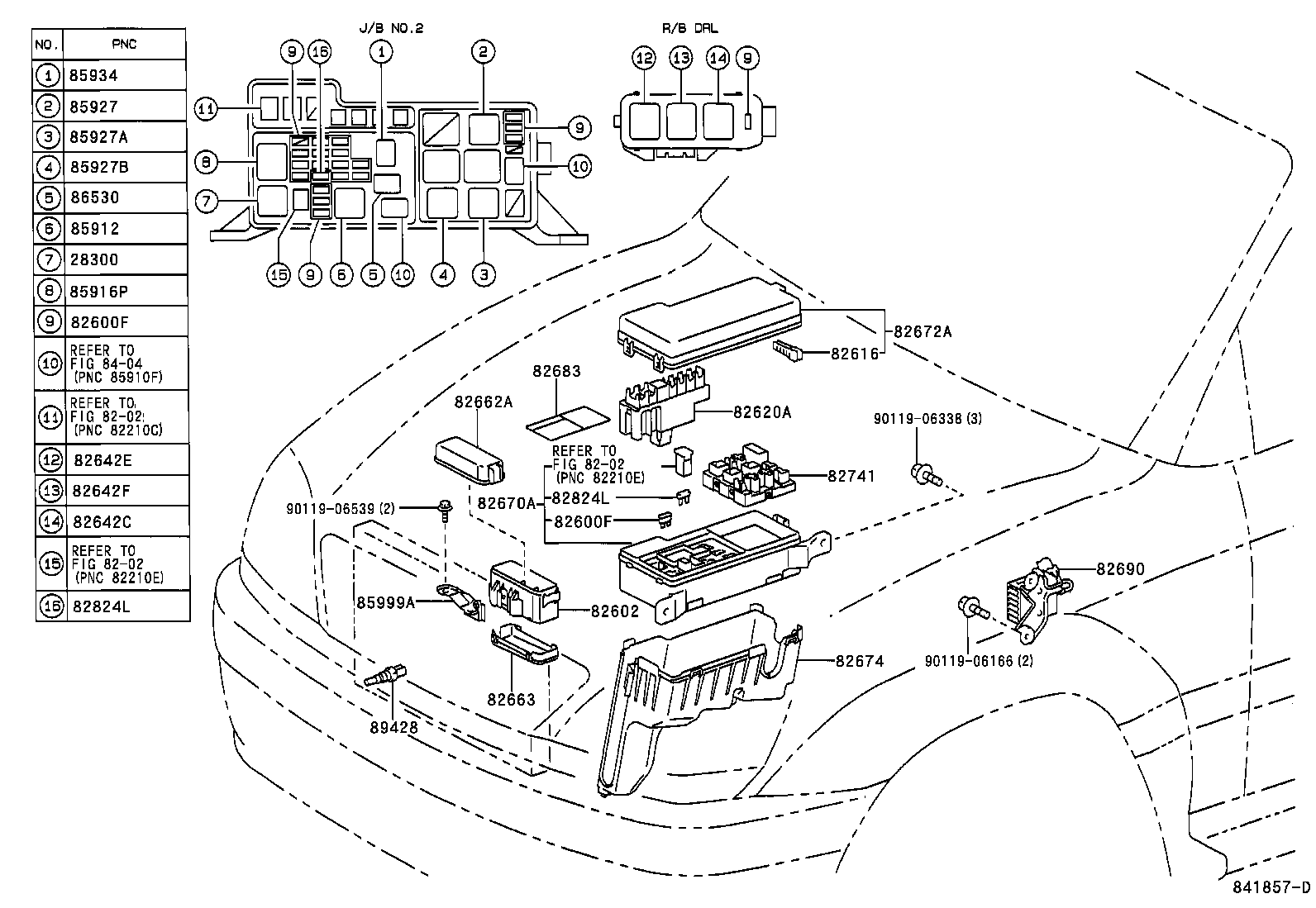

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28300 — Relay Assy, Starter | ||||
| 28300-10020 |
Relay Assy, Starter
1998-01 → —
|
1MZFE MCU1# | — | |
| 82600F — Fuse, Fuse Block | ||||
| 90982-09008 note |
Fuse, Fuse Block
1998-01 → —
|
MCU1# | — | |
| 90982-09009 note |
Fuse, Fuse Block
1998-01 → —
|
MCU1# | — | |
| 90982-09010 note |
Fuse, Fuse Block
1998-01 → —
|
MCU1# | — | |
| 90982-09011 note |
Fuse, Fuse Block
1998-01 → —
|
MCU1# | — | |
| 90982-09012 note |
Fuse, Fuse Block
1998-01 → —
|
MCU1# | — | |
| 82602 — Block Sub-assy, Relay | ||||
| 82602-07010 |
Block Sub-assy, Relay
1998-01 → —
|
MCU1# | — | |
| 82616 — Puller, Fuse | ||||
| 82616-20010 |
Puller, Fuse
1998-01 → —
|
MCU1# | — | |
| 82620A — Block Assy, Fusible Link | ||||
| 82620-48020 |
Block Assy, Fusible Link
1998-01 → —
|
MCU1# | — | |
| 82642C — Relay, Day Time Running Light, NO.2 | ||||
| 90987-02006 |
Relay, Day Time Running Light, NO.2
1998-01 → —
|
MCU1# | — | |
| 82642E — Relay, Day Time Running Light, NO.3 | ||||
| 90987-04002 |
Relay, Day Time Running Light, NO.3
1998-01 → —
|
MCU1# | — | |
| 82642F — Relay, Day Time Running Light, NO.4 | ||||
| 90987-02006 |
Relay, Day Time Running Light, NO.4
1998-01 → —
|
MCU1# | — | |
| 82662A — Cover, Relay Block, Upper, NO.1 | ||||
| 82662-48010 |
Cover, Relay Block, Upper, NO.1
1998-01 → —
|
MCU1# | — | |
| 82663 — Cover, Relay Block, Lower | ||||
| 82663-07030 |
Cover, Relay Block, Lower
1998-01 → —
|
MCU1# | — | |
| 82670A — Block Assy, Junction, NO.1 | ||||
| 82720-48010 |
Block Assy, Junction, NO.1
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 82720-48011 |
Block Assy, Junction, NO.1
2000-07 → —
|
MCU1# | — | |
| 82672A — Cover, Junction Block | ||||
| 82672-48010 |
Cover, Junction Block
1998-01 → —
|
MCU1# | — | |
| 82674 — Cover, Junction Block Lower | ||||
| 82674-48010 |
Cover, Junction Block Lower
1998-01 → —
|
MCU1# | — | |
| 82683 — Plate, Fuse Block Caution | ||||
| 82683-48050 |
Plate, Fuse Block Caution
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 82683-48120 |
Plate, Fuse Block Caution
2000-07 → —
|
MCU1# | — | |
| 82690 — Resistor Assy, Dim Dip Lamp | ||||
| 82695-48010 |
Resistor Assy, Dim Dip Lamp
1998-01 → —
|
MCU1# | — | |
| 82695-48020 note |
Resistor Assy, Dim Dip Lamp
1998-01 → —
|
MCU1# | — | |
| 82695-48030 note |
Resistor Assy, Dim Dip Lamp
1999-08 → —
|
MCU15 | — | |
| 82741 — Block, Engine Room Relay | ||||
| 82741-48030 |
Block, Engine Room Relay
1998-01 → 2000-06
ended
|
MCU1# | — | |
| 82741-48030 note |
Block, Engine Room Relay
2000-07 → —
|
MCU1# | — | |
| 82741-48031 |
Block, Engine Room Relay
2000-06 → —
|
MCU1# | — | |
| 82824L — Pin, Short | ||||
| 82824-20140 |
Pin, Short
1998-01 → —
|
MCU1# | — | |
| 85912 — Relay, Defogger | ||||
| 90987-04003 |
Relay, Defogger
1998-01 → —
|
MCU1# | — | |
| 85916P — Relay, Headlamp | ||||
| 85916-30060 note |
Relay, Headlamp
1998-01 → —
|
MCU1# | — | |
| 90987-02006 |
Relay, Headlamp
2000-07 → —
|
MCU1# | — | |
| 85927 — Relay, Cooling Fan | ||||
| 90987-02006 |
Relay, Cooling Fan
1998-01 → —
|
MCU1# | — | |
| 85927A — Relay, Cooling Fan, NO.2 | ||||
| 90987-04002 |
Relay, Cooling Fan, NO.2
1998-01 → —
|
MCU1# | — | |
| 85927B — Relay, Cooling Fan, NO.3 | ||||
| 90987-02006 |
Relay, Cooling Fan, NO.3
1998-01 → —
|
MCU1# | — | |
| 85934 — Relay, Magnet-clutch | ||||
| 90987-02012 |
Relay, Magnet-clutch
1998-01 → 2000-05
ended
|
MCU1# | — | |
| 90987-02020 |
Relay, Magnet-clutch
2000-05 → —
|
MCU1# | — | |
| 85999A — Bracket, Relay, NO.2 | ||||
| 85999-33150 |
Bracket, Relay, NO.2
1998-01 → —
|
MCU1# | — | |
| 86530 — Relay Assy, Horn | ||||
| 90987-02012 |
Relay Assy, Horn
1998-01 → 2000-04
ended
|
MCU1# | — | |
| 90987-02020 |
Relay Assy, Horn
2000-04 → —
|
MCU1# | — | |
| 89428 — Switch, Temperature Detect, NO.2 | ||||
| 89428-21010 |
Switch, Temperature Detect, NO.2
1998-01 → —
|
MCU1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
