Toyota Lexus RX300
1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States
Discontinued model
Data version 2003-10

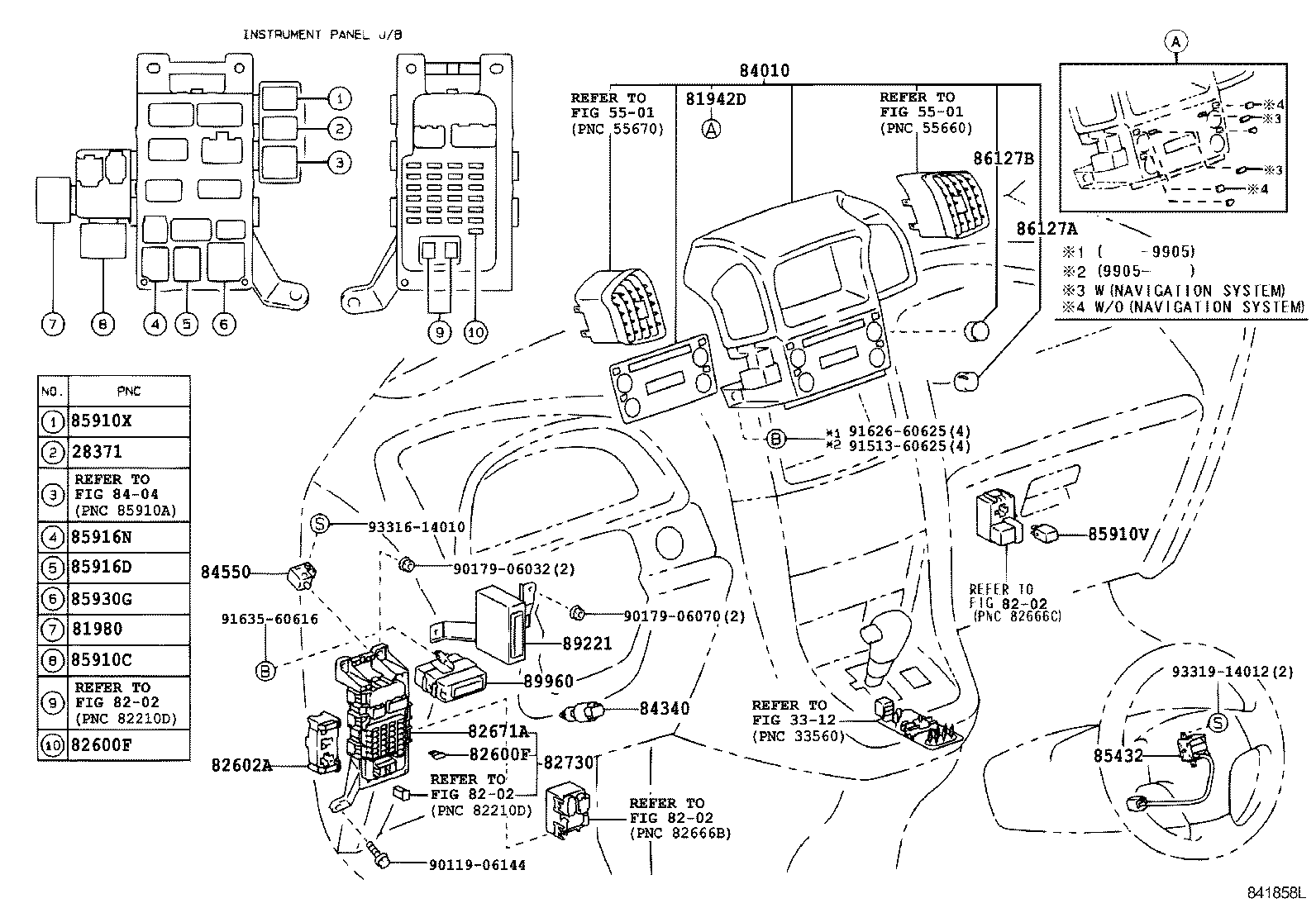

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28371 — Relay, Ignition, NO.1 | ||||
| 90987-02012 |
Relay, Ignition, NO.1
1998-01 → 2000-04
ended
|
1MZFE MCU1# | — | |
| 90987-02020 |
Relay, Ignition, NO.1
2000-04 → 2000-07
ended
|
1MZFE MCU1# | — | |
| 81942D — Sheet, Heater Control Name, NO.1 | ||||
| 81942-48040 |
Sheet, Heater Control Name, NO.1
1998-10 → —
|
MCU1# | — | |
| 81942-48060 note |
Sheet, Heater Control Name, NO.1
2000-07 → —
|
MCU1# | — | |
| 81980 — Flasher Assy, Turn Signal | ||||
| 81980-50020 |
Flasher Assy, Turn Signal
1998-01 → —
|
MCU1# | — | |
| 82600F — Fuse, Fuse Block | ||||
| 90982-09008 note |
Fuse, Fuse Block
1998-01 → —
|
MCU1# | — | |
| 90982-09009 note |
Fuse, Fuse Block
1998-01 → —
|
MCU1# | — | |
| 90982-09010 note |
Fuse, Fuse Block
1998-01 → —
|
MCU1# | — | |
| 90982-09011 note |
Fuse, Fuse Block
1998-01 → —
|
MCU1# | — | |
| 90982-09012 note |
Fuse, Fuse Block
1998-01 → —
|
MCU1# | — | |
| 82602A — Block Sub-assy, Relay | ||||
| 82602-48010 |
Block Sub-assy, Relay
1998-01 → —
|
MCU1# | — | |
| 82671A — Block, Junction | ||||
| 82732-48020 |
Block, Junction
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 82732-48021 |
Block, Junction
2000-07 → —
|
MCU1# | — | |
| 82730 — Block Assy, Instrument Panel Junction | ||||
| 82730-48020 |
Block Assy, Instrument Panel Junction
1998-01 → 1998-05
ended
|
MCU1# | — | |
| 82730-48021 |
Block Assy, Instrument Panel Junction
1998-05 → 2000-07
ended
|
MCU1# | — | |
| 82730-48022 |
Block Assy, Instrument Panel Junction
2000-07 → —
|
MCU1# | — | |
| 84010 — Switch Assy, Center Cluster Integration | ||||
| 84010-48030-B0 note |
Switch Assy, Center Cluster Integration
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 84010-48030-E0 note |
Switch Assy, Center Cluster Integration
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 84010-48031-C0 note |
Switch Assy, Center Cluster Integration
2000-07 → —
|
MCU1# | — | |
| 84010-48031-E0 note |
Switch Assy, Center Cluster Integration
2000-07 → —
|
MCU1# | — | |
| 84010-48040-C0 note |
Switch Assy, Center Cluster Integration
2000-07 → —
|
MCU1# | — | |
| 84010-48040-E0 note |
Switch Assy, Center Cluster Integration
2000-07 → —
|
MCU1# | — | |
| 84340 — Switch Assy, Stop Lamp | ||||
| 84340-32070 note |
Switch Assy, Stop Lamp
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 84340-35030 |
Switch Assy, Stop Lamp
2000-07 → —
|
MCU1# | — | |
| 84340-35030 note |
Switch Assy, Stop Lamp
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 84550 — Switch Assy, Parking Brake | ||||
| 84550-33010 |
Switch Assy, Parking Brake
1998-01 → —
|
MCU1# | — | |
| 85432 — Solenoid, Key Interlock | ||||
| 85432-33020 |
Solenoid, Key Interlock
1998-01 → —
|
MCU1# | — | |
| 85910C — Relay Assy (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
Relay Assy (FOR HEATER BLOWER MOTOR)
1998-01 → —
|
MCU1# | — | |
| 85910V — Relay, Seat Heater | ||||
| 90987-02012 |
Relay, Seat Heater
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 90987-02020 |
Relay, Seat Heater
2000-07 → —
|
MCU1# | — | |
| 85910X — Relay, Heater Mirror | ||||
| 90987-02009 |
Relay, Heater Mirror
1998-01 → —
|
MCU1# | — | |
| 85916D — Relay, Fog Lamp | ||||
| 90987-02012 |
Relay, Fog Lamp
1998-01 → 2000-05
ended
|
MCU1# | — | |
| 90987-02020 |
Relay, Fog Lamp
2000-05 → —
|
MCU1# | — | |
| 85916N — Relay, Taillamp | ||||
| 90080-87010 note |
Relay, Taillamp
1998-01 → 2000-05
ended
|
MCU1# | — | |
| 90987-02012 note |
Relay, Taillamp
1998-01 → 2000-05
ended
|
MCU1# | — | |
| 90987-02020 |
Relay, Taillamp
2000-05 → —
|
MCU1# | — | |
| 85930G — Relay, Acc | ||||
| 90987-02009 |
Relay, Acc
1998-01 → —
|
MCU1# | — | |
| 86127A — Knob,Radio Receiver, NO.1 | ||||
| 86127-48110 |
Knob,Radio Receiver, NO.1
1998-01 → —
|
MCU1# | — | |
| 86127-48140 note |
Knob,Radio Receiver, NO.1
2000-07 → —
|
MCU1# | — | |
| 86127B — Knob,Radio Receiver, NO.2 | ||||
| 86127-48120 |
Knob,Radio Receiver, NO.2
1998-01 → —
|
MCU1# | — | |
| 86127-48150 note |
Knob,Radio Receiver, NO.2
2000-07 → —
|
MCU1# | — | |
| 89221 — Computer, Multiplex Network Body | ||||
| 89221-48031 |
Computer, Multiplex Network Body
2000-07 → —
|
MCU1# | — | |
| 89221-48080 |
Computer, Multiplex Network Body
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 89221-48090 note |
Computer, Multiplex Network Body
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 89221-48091 note |
Computer, Multiplex Network Body
2000-07 → —
|
MCU1# | — | |
| 89221-48100 note |
Computer, Multiplex Network Body
1999-08 → 2000-07
ended
|
MCU15 | — | |
| 89221-48101 note |
Computer, Multiplex Network Body
2000-07 → —
|
MCU15 | — | |
| 89960 — Computer Assy, Headlamp Leveling | ||||
| 89960-48020 |
Computer Assy, Headlamp Leveling
2000-07 → —
|
MCU1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
