Toyota Lexus RX300
1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States
Discontinued model
Data version 2003-10

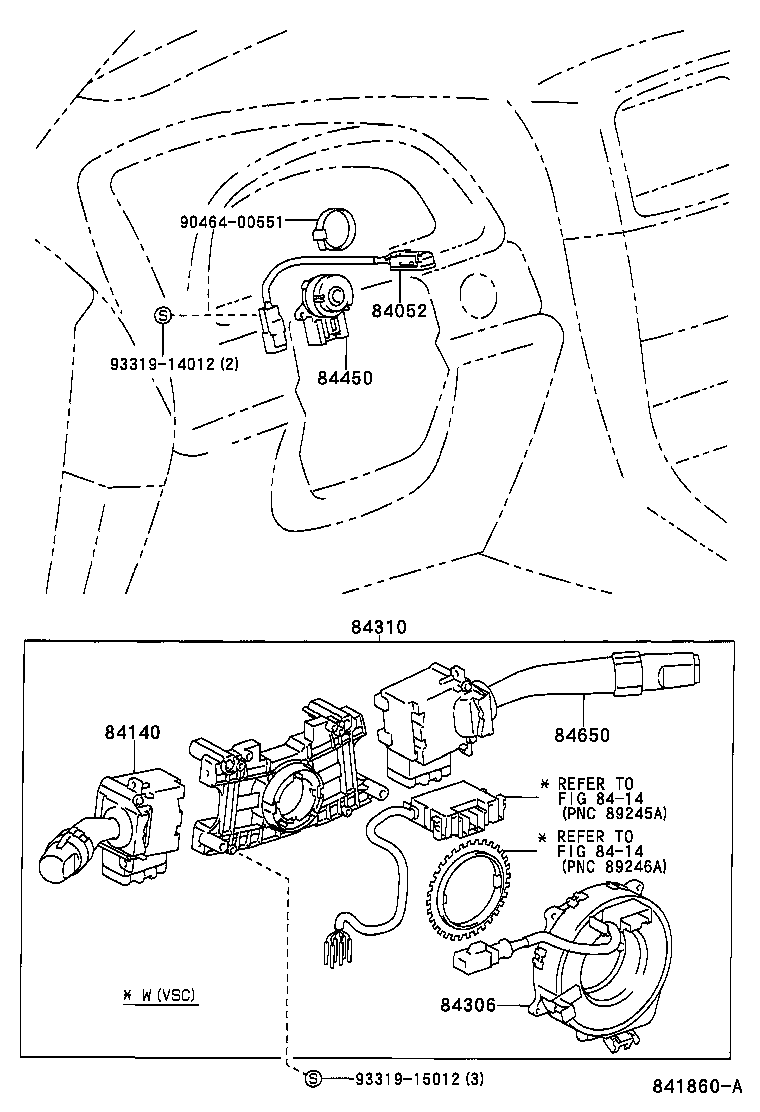

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84052 — Switch Assy, Un-lock Warning | ||||
| 84052-33040 |
Switch Assy, Un-lock Warning
1998-01 → —
|
MCU1# | — | |
| 84140 — Switch Assy, Headlamp Dimmer | ||||
| 84140-33020 |
Switch Assy, Headlamp Dimmer
1998-01 → —
|
MCU1# | — | |
| 84306 — Cable Sub-assy, Spiral | ||||
| 84306-48010 |
Cable Sub-assy, Spiral
1998-01 → —
|
MCU1# | — | |
| 84310 — Switch Assy, Turn Signal | ||||
| 84310-48050 |
Switch Assy, Turn Signal
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 84310-48080 |
Switch Assy, Turn Signal
2000-07 → 2002-08
ended
|
MCU1# | — | |
| 84310-48100 |
Switch Assy, Turn Signal
2002-08 → —
|
MCU1# | — | |
| 84450 — Switch Assy, Ignition OR Starter | ||||
| 84450-12200 |
Switch Assy, Ignition OR Starter
1998-01 → —
|
MCU1# | — | |
| 84650 — Switch Assy, Windshield Wiper | ||||
| 84652-26530 |
Switch Assy, Windshield Wiper
1998-01 → —
|
MCU1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
