Toyota Lexus RX300
1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States
Discontinued model
Data version 2003-10

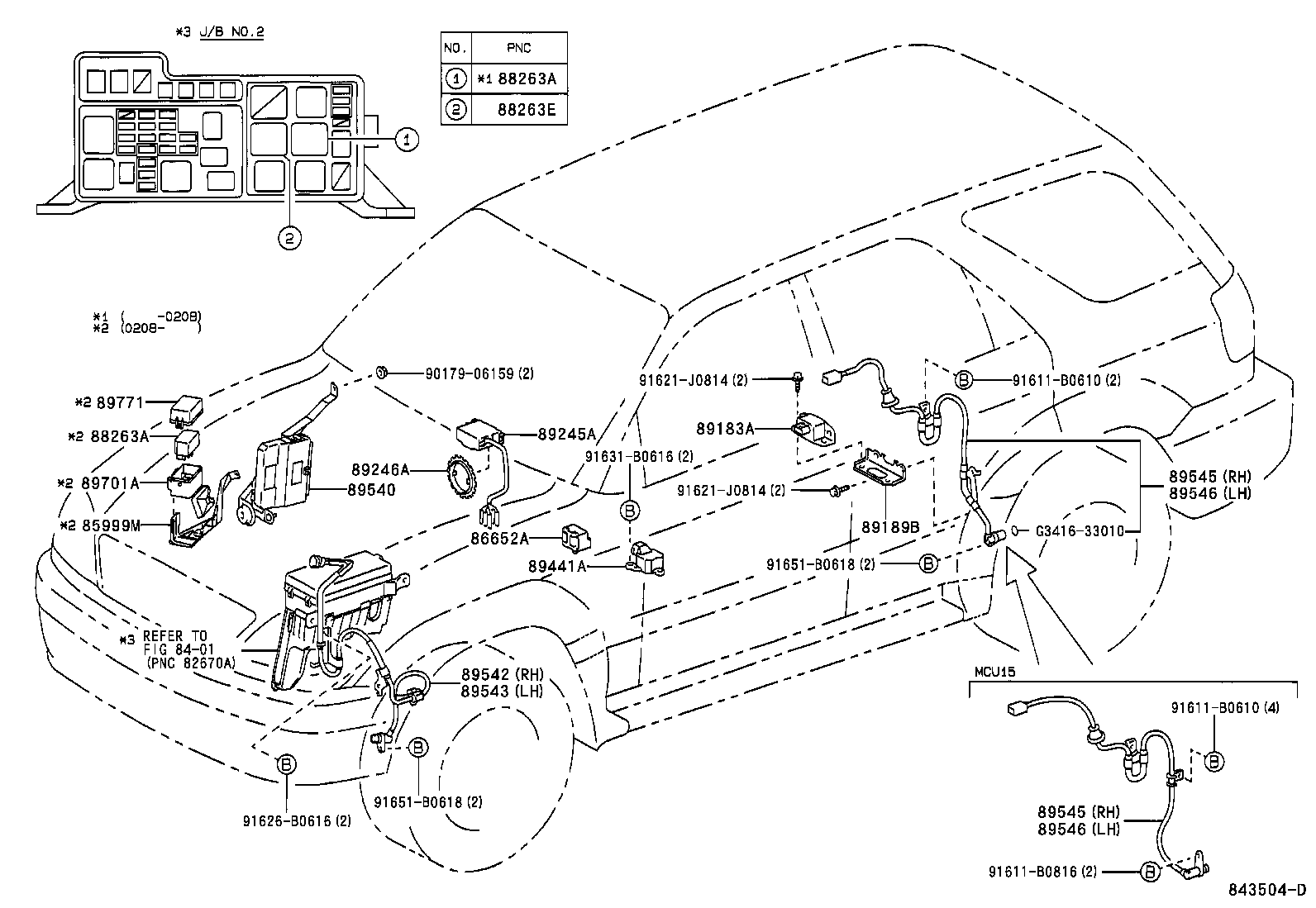

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 85999M — Bracket, Relay | ||||
| 85999-48050 |
Bracket, Relay
2002-08 → —
|
MCU1# | — | |
| 86652A — Buzzer Assy, Skid Control | ||||
| 86652-51010 |
Buzzer Assy, Skid Control
2000-07 → —
|
MCU1# | — | |
| 88263A — Relay, Skid Control | ||||
| 88263-14110 |
Relay, Skid Control
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 88263-24020 |
Relay, Skid Control
2000-07 → 2002-08
ended
|
MCU1# | — | |
| 88263-30150 |
Relay, Skid Control
2002-08 → —
|
MCU1# | — | |
| 88263E — Relay, Skid Control NO.2 | ||||
| 88263-24030 |
Relay, Skid Control NO.2
1998-01 → —
|
MCU1# | — | |
| 89183A — Sensor, Yawrate | ||||
| 89183-50010 |
Sensor, Yawrate
2000-07 → —
|
MCU1# | — | |
| 89189B — Bracket, Yawrate Sensor | ||||
| 89189-48010 |
Bracket, Yawrate Sensor
2000-07 → —
|
MCU1# | — | |
| 89245A — Sensor, Steering | ||||
| 89245-22030 |
Sensor, Steering
2002-08 → —
|
MCU1# | — | |
| 89245-60010 |
Sensor, Steering
2000-07 → 2002-08
ended
|
MCU1# | — | |
| 89246A — Disc, Sensor Steering | ||||
| 89246-22020 |
Disc, Sensor Steering
2002-08 → —
|
MCU1# | — | |
| 89246-50010 |
Disc, Sensor Steering
2000-07 → 2002-08
ended
|
MCU1# | — | |
| 89441A — Sensor, Deceleration | ||||
| 89441-30050 |
Sensor, Deceleration
2000-07 → —
|
MCU1# | — | |
| 89540 — Computer Assy, Skid Control | ||||
| 89540-48020 |
Computer Assy, Skid Control
1998-01 → 2000-07
ended
|
MCU10 | — | |
| 89540-48040 |
Computer Assy, Skid Control
1998-01 → 2000-07
ended
|
MCU15 | — | |
| 89540-48120 |
Computer Assy, Skid Control
2000-07 → 2002-08
ended
|
MCU10 | — | |
| 89540-48140 |
Computer Assy, Skid Control
2000-07 → 2001-05
ended
|
MCU15 | — | |
| 89540-48141 |
Computer Assy, Skid Control
2001-05 → 2002-08
ended
|
MCU15 | — | |
| 89540-48280 |
Computer Assy, Skid Control
2002-08 → —
|
MCU10 | — | |
| 89540-48290 |
Computer Assy, Skid Control
2002-08 → —
|
MCU15 | — | |
| 89542 — Sensor, Speed, Front RH | ||||
| 89542-48010 |
Sensor, Speed, Front RH
1998-01 → —
|
MCU1# | — | |
| 89543 — Sensor, Speed, Front LH | ||||
| 89543-48010 |
Sensor, Speed, Front LH
1998-01 → —
|
MCU1# | — | |
| 89545 — Sensor, Speed, Rear RH | ||||
| 89545-48010 |
Sensor, Speed, Rear RH
1998-01 → —
|
MCU10 | — | |
| 89545-48020 |
Sensor, Speed, Rear RH
1998-01 → —
|
MCU15 | — | |
| 89546 — Sensor, Speed, Rear LH | ||||
| 89546-48010 |
Sensor, Speed, Rear LH
1998-01 → —
|
MCU10 | — | |
| 89546-48020 |
Sensor, Speed, Rear LH
1998-01 → —
|
MCU15 | — | |
| 89701A — Block Sub-assy, Abs Relay | ||||
| 82241-48010 |
Block Sub-assy, Abs Relay
2002-08 → —
|
MCU1# | — | |
| 89771 — Cover, Abs Relay Block, Upper | ||||
| 89771-48010 |
Cover, Abs Relay Block, Upper
2002-08 → —
|
MCU1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
