Toyota Lexus RX300
1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States
Discontinued model
Data version 2003-10

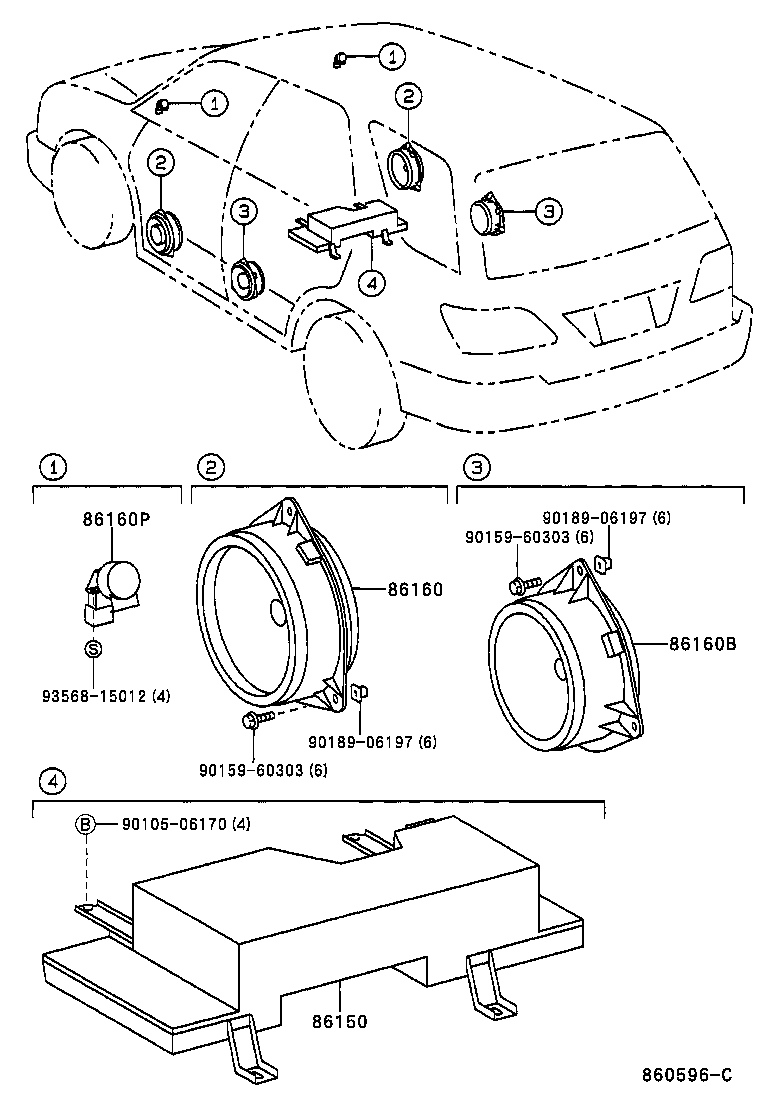

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86150 — Speaker Assy, W/Box, NO.1 | ||||
| 86150-48010 note |
Speaker Assy, W/Box, NO.1
1998-01 → —
|
MCU1# | — | |
| 86150-48020 note |
Speaker Assy, W/Box, NO.1
1998-01 → 2001-08
ended
|
MCU1# | — | |
| 86160 — Speaker Assy, Front NO.1 | ||||
| 86160-48040 note |
Speaker Assy, Front NO.1
1998-01 → —
|
MCU1# | — | |
| 86160-48080 note |
Speaker Assy, Front NO.1
1998-01 → 2001-08
ended
|
MCU1# | — | |
| 86160B — Speaker Assy, Rear | ||||
| 86160-48050 note |
Speaker Assy, Rear
1998-01 → —
|
MCU1# | — | |
| 86160-48090 note |
Speaker Assy, Rear
1998-01 → 2001-08
ended
|
MCU1# | — | |
| 86160P — Speaker Assy, Front NO.2 | ||||
| 86160-48060 note |
Speaker Assy, Front NO.2
1998-01 → —
|
MCU1# | — | |
| 86160-48100 note |
Speaker Assy, Front NO.2
1998-01 → 2001-08
ended
|
MCU1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
