Toyota Lexus RX300
1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States
Discontinued model
Data version 2003-10

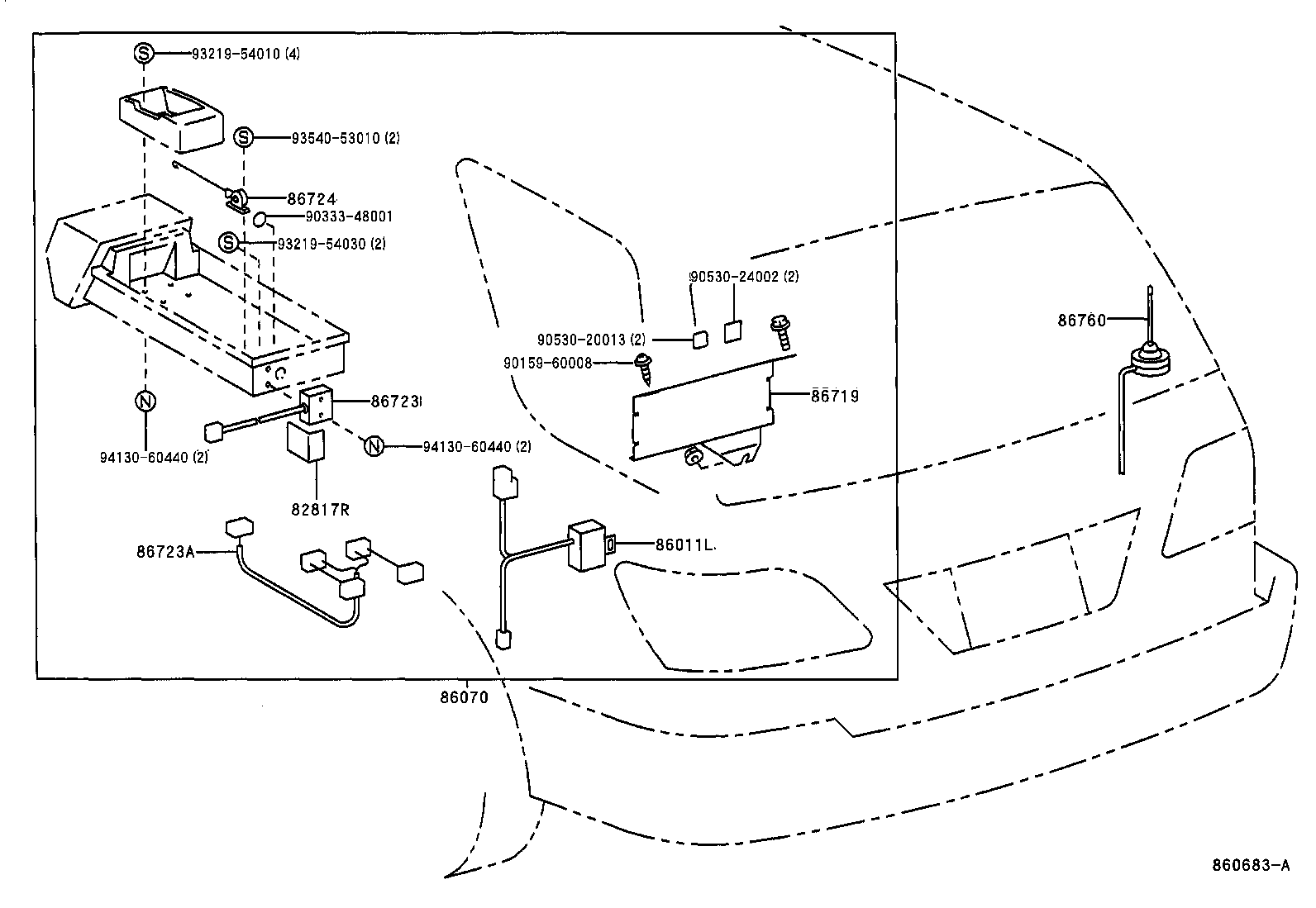

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82817R — Protector, Wiring Harness, NO.16 | ||||
| 82817-87013 |
Protector, Wiring Harness, NO.16
1998-01 → 1998-04
ended
|
MCU1# | — | |
| 82817-87013 |
Protector, Wiring Harness, NO.16
1998-04 → 2000-07
ended
|
MCU1# | — | |
| 82817-87013 |
Protector, Wiring Harness, NO.16
2000-07 → —
|
MCU1# | — | |
| 86011L — Filter, Noise | ||||
| 90980-05281 |
Filter, Noise
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 86070 — Mobilephone & Accessory Assy | ||||
| 86075-48010 note |
Mobilephone & Accessory Assy
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 86075-48020 note |
Mobilephone & Accessory Assy
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 86719 — Bracket, Telephone | ||||
| 86719-48020 |
Bracket, Telephone
2000-07 → —
|
MCU1# | — | |
| 86719-48030 note |
Bracket, Telephone
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 86719-48040 note |
Bracket, Telephone
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 86723 — Wire, Mobilephone | ||||
| 86723-50100 |
Wire, Mobilephone
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 86723A — Wire, Mobilephone | ||||
| 86723-48010 |
Wire, Mobilephone
1998-04 → 2000-07
ended
|
MCU1# | — | |
| 86724 — Guide, Curl Cord | ||||
| 86724-33010 |
Guide, Curl Cord
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 86760 — Antenna Assy, Telephone | ||||
| 86760-48010 |
Antenna Assy, Telephone
2000-07 → —
|
MCU1# | — | |
| 86760-60020 |
Antenna Assy, Telephone
1998-01 → 2000-07
ended
|
MCU1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
