Toyota Lexus RX300
1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States
Discontinued model
Data version 2003-10

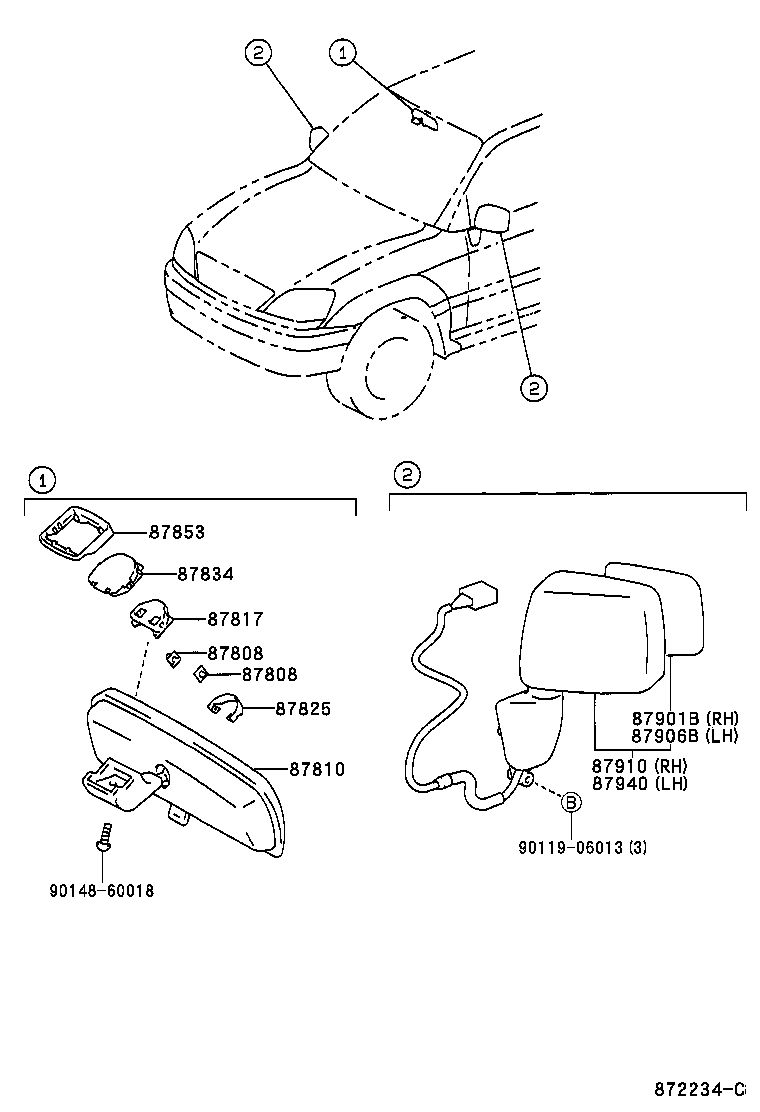

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87808 — Holder Sub-assy, Inner Mirror | ||||
| 87808-24010 |
Holder Sub-assy, Inner Mirror
1998-01 → —
|
MCU1# | — | |
| 87810 — Mirror Assy, Inner Rear View | ||||
| 87810-48010-A0 note |
Mirror Assy, Inner Rear View
1998-01 → —
|
MCU1# | — | |
| 87810-48010-B0 note |
Mirror Assy, Inner Rear View
1998-01 → 1999-01
ended
|
MCU1# | — | |
| 87810-48010-B1 note |
Mirror Assy, Inner Rear View
1999-01 → 2000-07
ended
|
MCU1# | — | |
| 87810-48010-B2 note |
Mirror Assy, Inner Rear View
2000-07 → —
|
MCU1# | — | |
| 87810-48020-A0 note |
Mirror Assy, Inner Rear View
1998-01 → —
|
MCU1# | — | |
| 87810-48020-B0 note |
Mirror Assy, Inner Rear View
1998-01 → 1999-01
ended
|
MCU1# | — | |
| 87810-48020-B1 note |
Mirror Assy, Inner Rear View
1999-01 → 2000-07
ended
|
MCU1# | — | |
| 87810-48020-B2 note |
Mirror Assy, Inner Rear View
2000-07 → —
|
MCU1# | — | |
| 87810-48030-A0 note |
Mirror Assy, Inner Rear View
2000-07 → —
|
MCU1# | — | |
| 87810-48030-B0 note |
Mirror Assy, Inner Rear View
2000-07 → —
|
MCU1# | — | |
| 87817 — Spacer, Inner Rear View Mirror | ||||
| 87817-30030 |
Spacer, Inner Rear View Mirror
1998-01 → —
|
MCU1# | — | |
| 87825 — Spring, Inner Rear View Mirror Setting | ||||
| 87825-30020 |
Spring, Inner Rear View Mirror Setting
1998-01 → 1998-03
ended
|
MCU1# | — | |
| 87825-48010 |
Spring, Inner Rear View Mirror Setting
1998-03 → —
|
MCU1# | — | |
| 87834 — Cover, Inner Rear View Mirror Stay Holder | ||||
| 87834-48010-A0 note |
Cover, Inner Rear View Mirror Stay Holder
1998-01 → —
|
MCU1# | — | |
| 87834-48010-B0 note |
Cover, Inner Rear View Mirror Stay Holder
1998-01 → 1999-01
ended
|
MCU1# | — | |
| 87834-48010-B1 note |
Cover, Inner Rear View Mirror Stay Holder
1999-01 → 2000-07
ended
|
MCU1# | — | |
| 87834-48010-B2 note |
Cover, Inner Rear View Mirror Stay Holder
2000-07 → —
|
MCU1# | — | |
| 87853 — Base, Inner Rear View Mirror | ||||
| 87853-24020 |
Base, Inner Rear View Mirror
1998-01 → —
|
MCU1# | — | |
| 87901B — Mirror Sub-assy, Outer Rear View, RH | ||||
| 87901-48010 note |
Mirror Sub-assy, Outer Rear View, RH
1998-01 → —
|
MCU1# | — | |
| 87931-48030 |
Mirror Sub-assy, Outer Rear View, RH
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 87931-48070 |
Mirror Sub-assy, Outer Rear View, RH
2000-07 → —
|
MCU1# | — | |
| 87906B — Mirror Sub-assy, Outer Rear View, LH | ||||
| 87906-48010 note |
Mirror Sub-assy, Outer Rear View, LH
1998-01 → 2001-11
ended
|
MCU1# | — | |
| 87906-48010 note |
Mirror Sub-assy, Outer Rear View, LH
2001-11 → 2002-07
ended
|
MCU1# | — | |
| 87906-48010 note |
Mirror Sub-assy, Outer Rear View, LH
2002-07 → —
|
MCU1# | — | |
| 87906-48040 note |
Mirror Sub-assy, Outer Rear View, LH
2001-11 → 2002-07
ended
|
MCU1# | — | |
| 87961-48030 |
Mirror Sub-assy, Outer Rear View, LH
1998-01 → —
|
MCU1# | — | |
| 87910 — Mirror Assy, Outer Rear View, RH | ||||
| 87910-48030-A0 note |
Mirror Assy, Outer Rear View, RH
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 87910-48030-B0 note |
Mirror Assy, Outer Rear View, RH
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 87910-48030-C0 note |
Mirror Assy, Outer Rear View, RH
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 87910-48030-D0 note |
Mirror Assy, Outer Rear View, RH
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 87910-48030-E0 note |
Mirror Assy, Outer Rear View, RH
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 87910-48030-E1 note |
Mirror Assy, Outer Rear View, RH
1998-01 → 1999-08
ended
|
MCU1# | — | |
| 87910-48030-G0 note |
Mirror Assy, Outer Rear View, RH
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 87910-48030-G1 note |
Mirror Assy, Outer Rear View, RH
1999-08 → 2000-07
ended
|
MCU1# | — | |
| 87910-48030-J0 note |
Mirror Assy, Outer Rear View, RH
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 87910-48040-A0 note |
Mirror Assy, Outer Rear View, RH
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 87910-48040-B0 note |
Mirror Assy, Outer Rear View, RH
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 87910-48040-C0 note |
Mirror Assy, Outer Rear View, RH
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 87910-48040-D0 note |
Mirror Assy, Outer Rear View, RH
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 87910-48040-E0 note |
Mirror Assy, Outer Rear View, RH
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 87910-48040-E1 note |
Mirror Assy, Outer Rear View, RH
1998-01 → 1999-08
ended
|
MCU1# | — | |
| 87910-48040-G0 note |
Mirror Assy, Outer Rear View, RH
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 87910-48040-G1 note |
Mirror Assy, Outer Rear View, RH
1999-08 → 2000-07
ended
|
MCU1# | — | |
| 87910-48040-J0 note |
Mirror Assy, Outer Rear View, RH
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 87910-48070-A0 note |
Mirror Assy, Outer Rear View, RH
2000-07 → —
|
MCU1# | — | |
| 87910-48070-B0 note |
Mirror Assy, Outer Rear View, RH
2000-07 → —
|
MCU1# | — | |
| 87910-48070-C0 note |
Mirror Assy, Outer Rear View, RH
2000-07 → —
|
MCU1# | — | |
| 87910-48070-D0 note |
Mirror Assy, Outer Rear View, RH
2000-07 → —
|
MCU1# | — | |
| 87910-48070-E0 note |
Mirror Assy, Outer Rear View, RH
2000-07 → —
|
MCU1# | — | |
| 87910-48070-G0 note |
Mirror Assy, Outer Rear View, RH
2000-07 → —
|
MCU1# | — | |
| 87910-48070-G1 note |
Mirror Assy, Outer Rear View, RH
2000-07 → —
|
MCU1# | — | |
| 87910-48070-J0 note |
Mirror Assy, Outer Rear View, RH
2000-07 → —
|
MCU1# | — | |
| 87910-48070-J1 note |
Mirror Assy, Outer Rear View, RH
2000-07 → —
|
MCU1# | — | |
| 87910-48080-A0 note |
Mirror Assy, Outer Rear View, RH
2000-07 → —
|
MCU1# | — | |
| 87910-48080-A1 note |
Mirror Assy, Outer Rear View, RH
2002-03 → 2002-07
ended
|
MCU1# | — | |
| 87910-48080-B0 note |
Mirror Assy, Outer Rear View, RH
2000-07 → —
|
MCU1# | — | |
| 87910-48080-B1 note |
Mirror Assy, Outer Rear View, RH
2002-03 → 2002-07
ended
|
MCU1# | — | |
| 87910-48080-C0 note |
Mirror Assy, Outer Rear View, RH
2000-07 → —
|
MCU1# | — | |
| 87910-48080-D0 note |
Mirror Assy, Outer Rear View, RH
2000-07 → —
|
MCU1# | — | |
| 87910-48080-E0 note |
Mirror Assy, Outer Rear View, RH
2000-07 → —
|
MCU1# | — | |
| 87910-48080-G0 note |
Mirror Assy, Outer Rear View, RH
2000-07 → —
|
MCU1# | — | |
| 87910-48080-G1 note |
Mirror Assy, Outer Rear View, RH
2000-07 → —
|
MCU1# | — | |
| 87910-48080-J0 note |
Mirror Assy, Outer Rear View, RH
2000-07 → —
|
MCU1# | — | |
| 87910-48080-J1 note |
Mirror Assy, Outer Rear View, RH
2000-07 → —
|
MCU1# | — | |
| 87940 — Mirror Assy, Outer Rear View, LH | ||||
| 87940-48030-A0 note |
Mirror Assy, Outer Rear View, LH
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 87940-48030-B0 note |
Mirror Assy, Outer Rear View, LH
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 87940-48030-C0 note |
Mirror Assy, Outer Rear View, LH
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 87940-48030-D0 note |
Mirror Assy, Outer Rear View, LH
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 87940-48030-E0 note |
Mirror Assy, Outer Rear View, LH
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 87940-48030-E1 note |
Mirror Assy, Outer Rear View, LH
1998-01 → 1999-08
ended
|
MCU1# | — | |
| 87940-48030-G0 note |
Mirror Assy, Outer Rear View, LH
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 87940-48030-G1 note |
Mirror Assy, Outer Rear View, LH
1999-08 → 2000-07
ended
|
MCU1# | — | |
| 87940-48030-J0 note |
Mirror Assy, Outer Rear View, LH
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 87940-48040-A0 note |
Mirror Assy, Outer Rear View, LH
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 87940-48040-B0 note |
Mirror Assy, Outer Rear View, LH
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 87940-48040-C0 note |
Mirror Assy, Outer Rear View, LH
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 87940-48040-D0 note |
Mirror Assy, Outer Rear View, LH
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 87940-48040-E0 note |
Mirror Assy, Outer Rear View, LH
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 87940-48040-E1 note |
Mirror Assy, Outer Rear View, LH
1998-01 → 1999-08
ended
|
MCU1# | — | |
| 87940-48040-G0 note |
Mirror Assy, Outer Rear View, LH
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 87940-48040-G1 note |
Mirror Assy, Outer Rear View, LH
1999-08 → 2000-07
ended
|
MCU1# | — | |
| 87940-48040-J0 note |
Mirror Assy, Outer Rear View, LH
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 87940-48070-A0 note |
Mirror Assy, Outer Rear View, LH
2000-07 → —
|
MCU1# | — | |
| 87940-48070-B0 note |
Mirror Assy, Outer Rear View, LH
2000-07 → —
|
MCU1# | — | |
| 87940-48070-C0 note |
Mirror Assy, Outer Rear View, LH
2000-07 → —
|
MCU1# | — | |
| 87940-48070-D0 note |
Mirror Assy, Outer Rear View, LH
2000-07 → —
|
MCU1# | — | |
| 87940-48070-E0 note |
Mirror Assy, Outer Rear View, LH
2000-07 → —
|
MCU1# | — | |
| 87940-48070-G0 note |
Mirror Assy, Outer Rear View, LH
2000-07 → —
|
MCU1# | — | |
| 87940-48070-G1 note |
Mirror Assy, Outer Rear View, LH
2000-07 → —
|
MCU1# | — | |
| 87940-48070-J0 note |
Mirror Assy, Outer Rear View, LH
2000-07 → —
|
MCU1# | — | |
| 87940-48070-J1 note |
Mirror Assy, Outer Rear View, LH
2000-07 → —
|
MCU1# | — | |
| 87940-48080-A0 note |
Mirror Assy, Outer Rear View, LH
2000-07 → —
|
MCU1# | — | |
| 87940-48080-A1 note |
Mirror Assy, Outer Rear View, LH
2002-03 → 2002-07
ended
|
MCU1# | — | |
| 87940-48080-B0 note |
Mirror Assy, Outer Rear View, LH
2000-07 → —
|
MCU1# | — | |
| 87940-48080-B1 note |
Mirror Assy, Outer Rear View, LH
2002-03 → 2002-07
ended
|
MCU1# | — | |
| 87940-48080-C0 note |
Mirror Assy, Outer Rear View, LH
2000-07 → —
|
MCU1# | — | |
| 87940-48080-D0 note |
Mirror Assy, Outer Rear View, LH
2000-07 → —
|
MCU1# | — | |
| 87940-48080-E0 note |
Mirror Assy, Outer Rear View, LH
2000-07 → —
|
MCU1# | — | |
| 87940-48080-G0 note |
Mirror Assy, Outer Rear View, LH
2000-07 → —
|
MCU1# | — | |
| 87940-48080-G1 note |
Mirror Assy, Outer Rear View, LH
2000-07 → —
|
MCU1# | — | |
| 87940-48080-J0 note |
Mirror Assy, Outer Rear View, LH
2000-07 → —
|
MCU1# | — | |
| 87940-48080-J1 note |
Mirror Assy, Outer Rear View, LH
2000-07 → —
|
MCU1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
