Toyota Lexus RX300
1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States
Discontinued model
Data version 2003-10

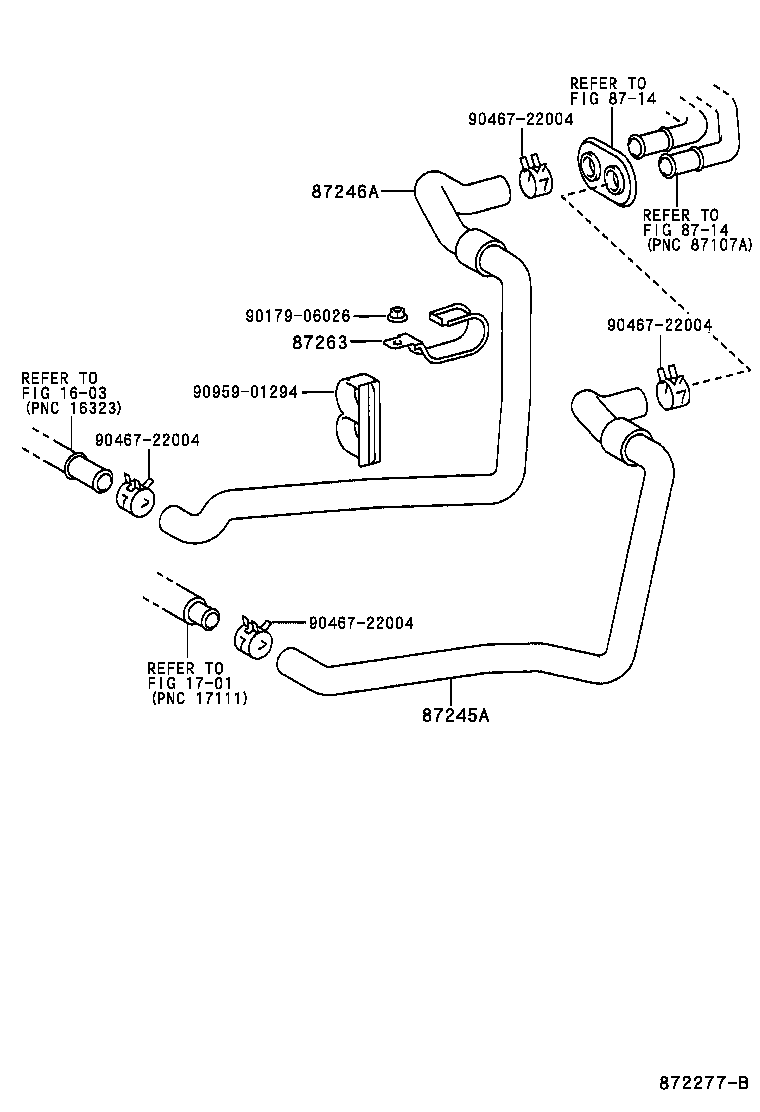

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87245A — Hose, Heater Water, Inlet A | ||||
| 87245-48010 |
Hose, Heater Water, Inlet A
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 87245-48060 |
Hose, Heater Water, Inlet A
2000-07 → —
|
MCU1# | — | |
| 87246A — Hose, Heater Water, Outlet A | ||||
| 87245-48020 |
Hose, Heater Water, Outlet A
1998-01 → 2000-07
ended
|
MCU1# | — | |
| 87245-48070 |
Hose, Heater Water, Outlet A
2000-07 → —
|
MCU1# | — | |
| 87263 — Bracket, Heater Water Pipe, NO.1 | ||||
| 87263-48010 |
Bracket, Heater Water Pipe, NO.1
1998-01 → —
|
MCU1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
