Toyota Lexus RX300

1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States

Discontinued model Data version 2003-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

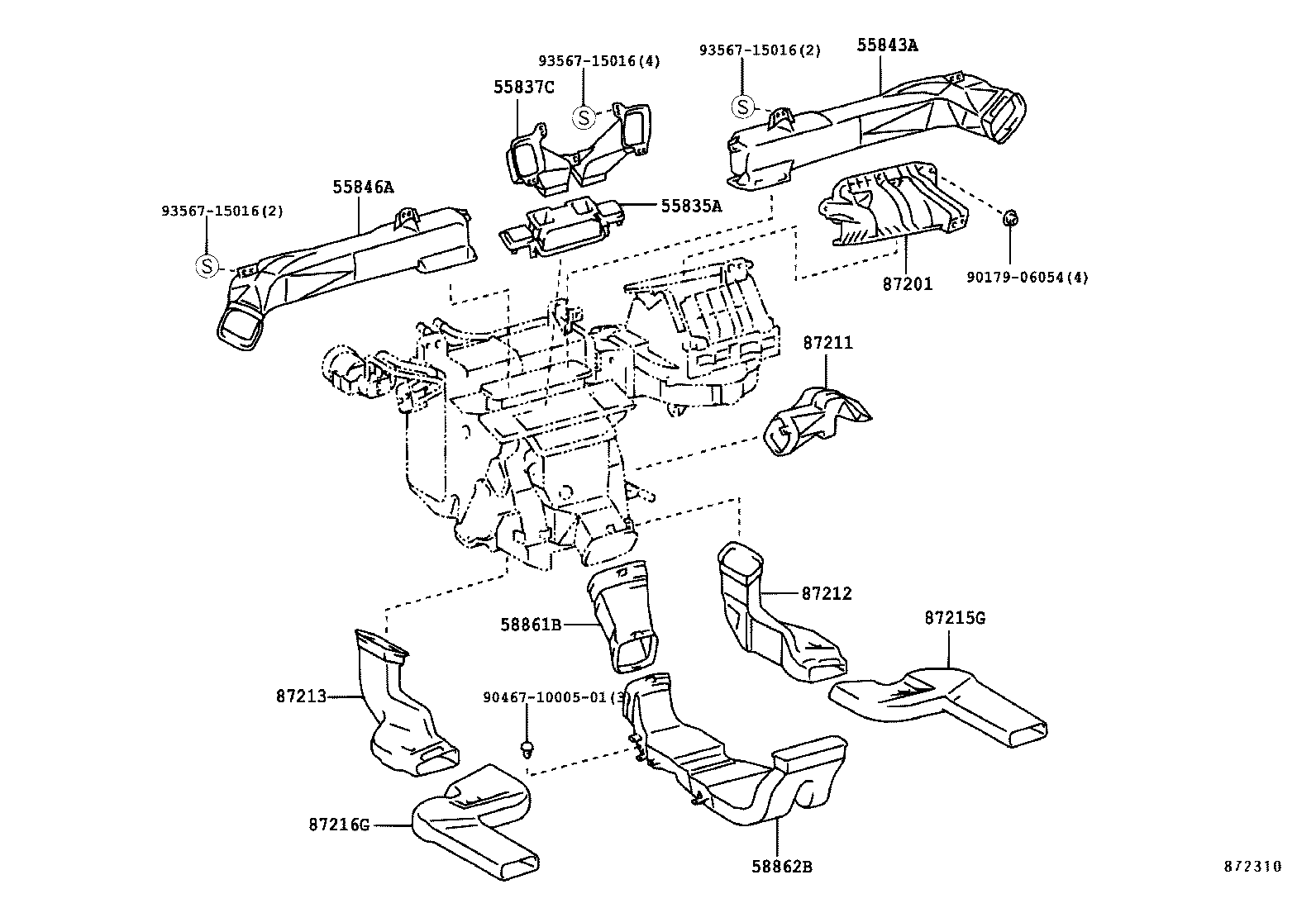

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

17 parts on this figure

Part number	Description	Fitment	Price
55835A — Duct, Heater TO Register, Center
55835-48010	Duct, Heater TO Register, Center 1998-01 → —	MCU1#	—
55837C — Duct, Heater TO Register Center Sub
55837-48010	Duct, Heater TO Register Center Sub 1998-01 → —	MCU1#	—
55837-48030 note	Duct, Heater TO Register Center Sub 2001-08 → —	MCU15	—
55843A — Duct, Heater TO Register, NO.1
55843-48010	Duct, Heater TO Register, NO.1 1998-01 → —	MCU1#	—
55843-48030 note	Duct, Heater TO Register, NO.1 2001-08 → —	MCU15	—
55846A — Duct, Heater TO Register, NO.4
55846-48010	Duct, Heater TO Register, NO.4 1998-01 → —	MCU1#	—
55846-48030 note	Duct, Heater TO Register, NO.4 2001-08 → —	MCU15	—
58861B — Duct, Console Box, NO.1
58861-48020	Duct, Console Box, NO.1 1998-01 → —	MCU1#	—
58862B — Duct, Console Box, NO.2
58862-48010	Duct, Console Box, NO.2 1998-01 → —	MCU1#	—
87201 — Duct Sub-assy, Air, NO.1
87201-48020	Duct Sub-assy, Air, NO.1 1998-01 → —	MCU1#	—
87211 — Duct, Air, NO.1
87211-48020	Duct, Air, NO.1 1998-01 → —	MCU1#	—
87212 — Duct, Air, Rear NO.1
87212-48010	Duct, Air, Rear NO.1 1998-01 → —	MCU1#	—
87213 — Duct, Air, Rear NO.2
87213-48010	Duct, Air, Rear NO.2 1998-01 → —	MCU1#	—
87215G — Guide, Air Duct, Rear RH
87215-48010	Guide, Air Duct, Rear RH 1998-01 → 2000-06 ended	MCU1#	—
87215-48011	Guide, Air Duct, Rear RH 2000-06 → —	MCU1#	—
87216G — Guide, Air Duct, Rear LH
87216-48010	Guide, Air Duct, Rear LH 1998-01 → 2000-06 ended	MCU1#	—
87216-48011	Guide, Air Duct, Rear LH 2000-06 → —	MCU1#	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
