Toyota Lexus RX300
1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States
Discontinued model
Data version 2003-10

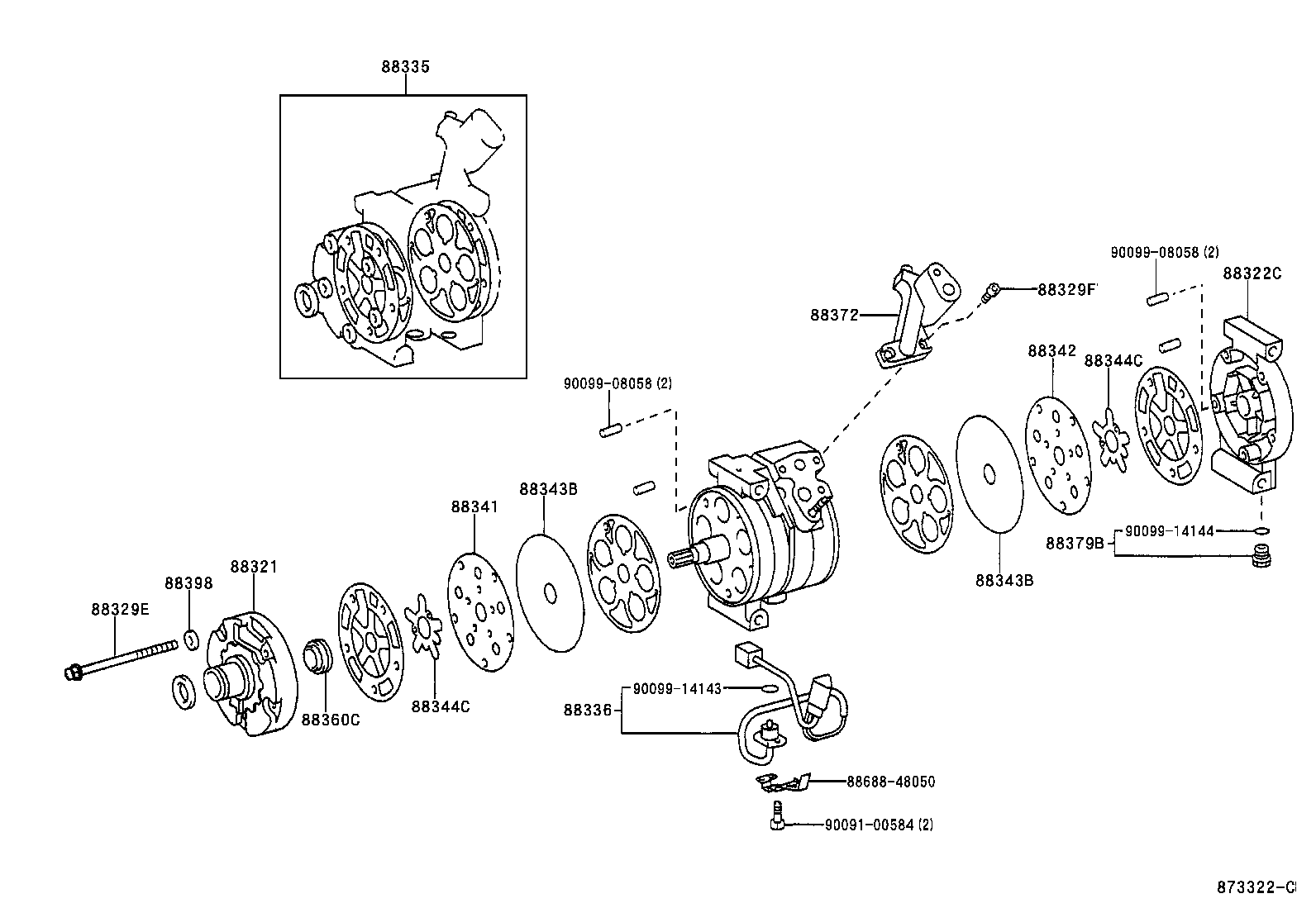

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88321 — Head, Cooler Compressor Cylinder | ||||
| 88321-48010 |
Head, Cooler Compressor Cylinder
1998-01 → —
|
MCU1# | — | |
| 88322C — Head, Cylinder, Rear | ||||
| 88322-32060 |
Head, Cylinder, Rear
1998-01 → —
|
MCU1# | — | |
| 88329E — Bolt, Compressor, NO.1 | ||||
| 88329-48010 |
Bolt, Compressor, NO.1
1998-01 → —
|
MCU1# | — | |
| 88329F — Bolt, Compressor, NO.2 | ||||
| 88329-16030 |
Bolt, Compressor, NO.2
1998-01 → —
|
MCU1# | — | |
| 88335 — Gasket Kit, Overhaul | ||||
| 88335-48070 |
Gasket Kit, Overhaul
1998-01 → —
|
MCU1# | — | |
| 88336 — Sensor, Compressor | ||||
| 88336-33130 |
Sensor, Compressor
1999-03 → —
|
MCU1# | — | |
| 88336-48010 |
Sensor, Compressor
1998-01 → 1999-03
ended
|
MCU1# | — | |
| 88341 — Plate, Front Valve | ||||
| 88341-32010 |
Plate, Front Valve
1998-01 → —
|
MCU1# | — | |
| 88342 — Plate, Compressor Valve, RR | ||||
| 88342-32020 |
Plate, Compressor Valve, RR
1998-01 → —
|
MCU1# | — | |
| 88343B — Reed, Suction Valve | ||||
| 88343-32020 |
Reed, Suction Valve
1998-01 → —
|
MCU1# | — | |
| 88344C — Reed, Discharge Valve | ||||
| 88344-32010 |
Reed, Discharge Valve
1998-01 → —
|
MCU1# | — | |
| 88360C — Seal Assy, Shaft | ||||
| 88360-32010 |
Seal Assy, Shaft
1998-01 → —
|
MCU1# | — | |
| 88372 — Valve, Discharge | ||||
| 88372-48010 |
Valve, Discharge
1998-01 → —
|
MCU1# | — | |
| 88379B — Valve, Pressure Relief | ||||
| 88379-32010 |
Valve, Pressure Relief
1998-01 → —
|
MCU1# | — | |
| 88398 — Packing, Compressor | ||||
| 88398-32010 |
Packing, Compressor
1998-01 → —
|
MCU1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
