Toyota Lexus RX300
1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States
Discontinued model
Data version 2003-10

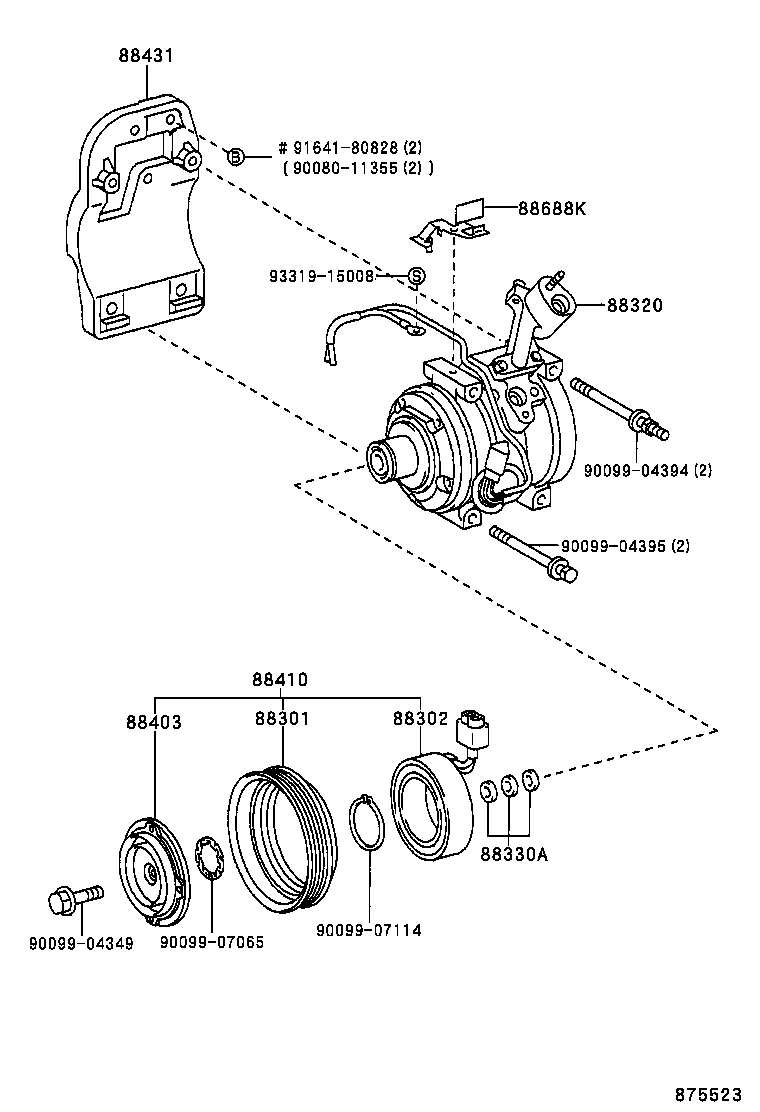

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88301 — Rotor Sub-assy, Magnet Clutch | ||||
| 88412-48020 |
Rotor Sub-assy, Magnet Clutch
1999-03 → —
|
MCU1# | — | |
| 88302 — Stator Sub-assy, Magnet Clutch | ||||
| 88411-44010 |
Stator Sub-assy, Magnet Clutch
1999-03 → —
|
MCU1# | — | |
| 88411-48010 |
Stator Sub-assy, Magnet Clutch
1998-01 → 1999-03
ended
|
MCU1# | — | |
| 88320 — Compressor Assy, Cooler | ||||
| 88320-48030 |
Compressor Assy, Cooler
1998-01 → 1999-03
ended
|
MCU1# | — | |
| 88320-48060 |
Compressor Assy, Cooler
1999-03 → —
|
MCU1# | — | |
| 88330A — Washer (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
Washer (FOR MAGNET CLUTCH)
1998-01 → —
|
MCU1# | — | |
| 88403 — Hub Sub-assy, Magnet Clutch | ||||
| 88403-32010 |
Hub Sub-assy, Magnet Clutch
1999-03 → —
|
MCU1# | — | |
| 88410 — Clutch Assy, Magnet | ||||
| 88410-33120 |
Clutch Assy, Magnet
1999-03 → —
|
MCU1# | — | |
| 88410-48020 |
Clutch Assy, Magnet
1998-01 → 1999-03
ended
|
MCU1# | — | |
| 88431 — Bracket, Compressor Mounting, NO.1 | ||||
| 88431-07021 note |
Bracket, Compressor Mounting, NO.1
2002-08 → —
|
MCU1# | — | |
| 88431-33041 |
Bracket, Compressor Mounting, NO.1
1998-11 → 2002-08
ended
|
MCU1# | — | |
| 88431-33041 note |
Bracket, Compressor Mounting, NO.1
2002-08 → —
|
MCU1# | — | |
| 88431-48020 |
Bracket, Compressor Mounting, NO.1
1998-01 → 1998-11
ended
|
MCU1# | — | |
| 88688K — Bracket, Cooler Compressor | ||||
| 88688-48030 |
Bracket, Cooler Compressor
1998-01 → 1999-03
ended
|
MCU1# | — | |
| 88688-48040 |
Bracket, Cooler Compressor
1999-03 → —
|
MCU1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
