Toyota Lexus RX330/350(JPP)

2003-02 → 2008-12 · chassis MCU3#,GSU3# · catalogue 521420 · United States

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

18 part groups · 2 illustrations

Illustrations

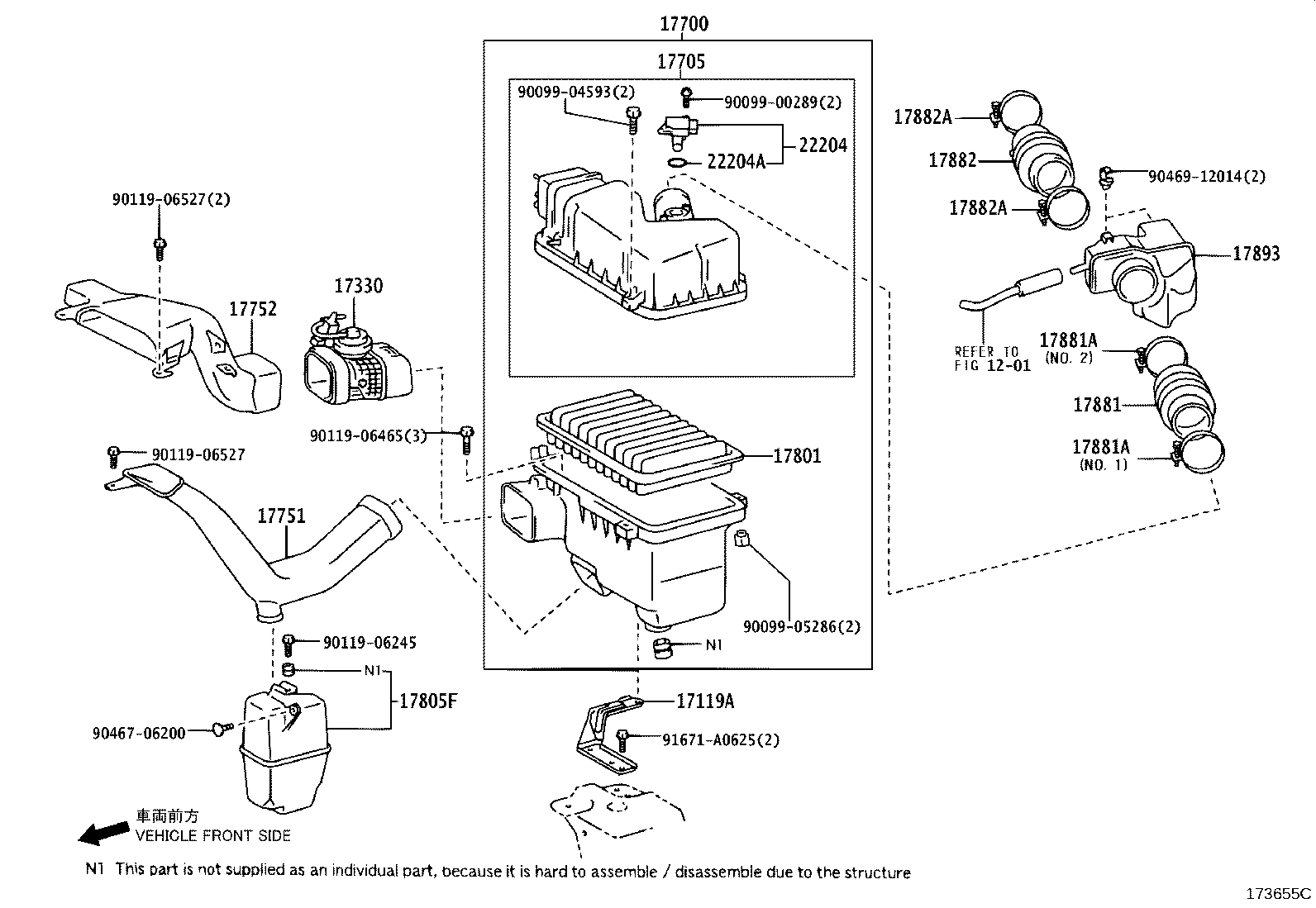

Figure 174765C 174765C 2006-01 → 2008-12 Figure 173655C 173655C 2003-02 → 2006-01

Part groups

PNCDescription
17119A Bracket, Air Cleaner
17330 Valve Assy, Intake Air Control, NO.3
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17710B Grommet
17751 Inlet, Air Cleaner, NO.1
17752 Inlet, Air Cleaner, NO.2
17801 Element Sub-assy, Air Cleaner Filter
17805F Resonator Sub-assy, Intake Air
17880 Hose Assy, Air Cleaner
17880A Clamp, Hose
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17893 Resonator, Intake Air
22204 Meter Sub-assy, Intake Air Flow
22204A Ring, O(FOR INTAKE AIR FLOW METER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
