Toyota Lexus RX330/350(JPP)

2003-02 → 2008-12 · chassis MCU3#,GSU3# · catalogue 521420 · United States

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

15 part groups · 4 illustrations

Illustrations

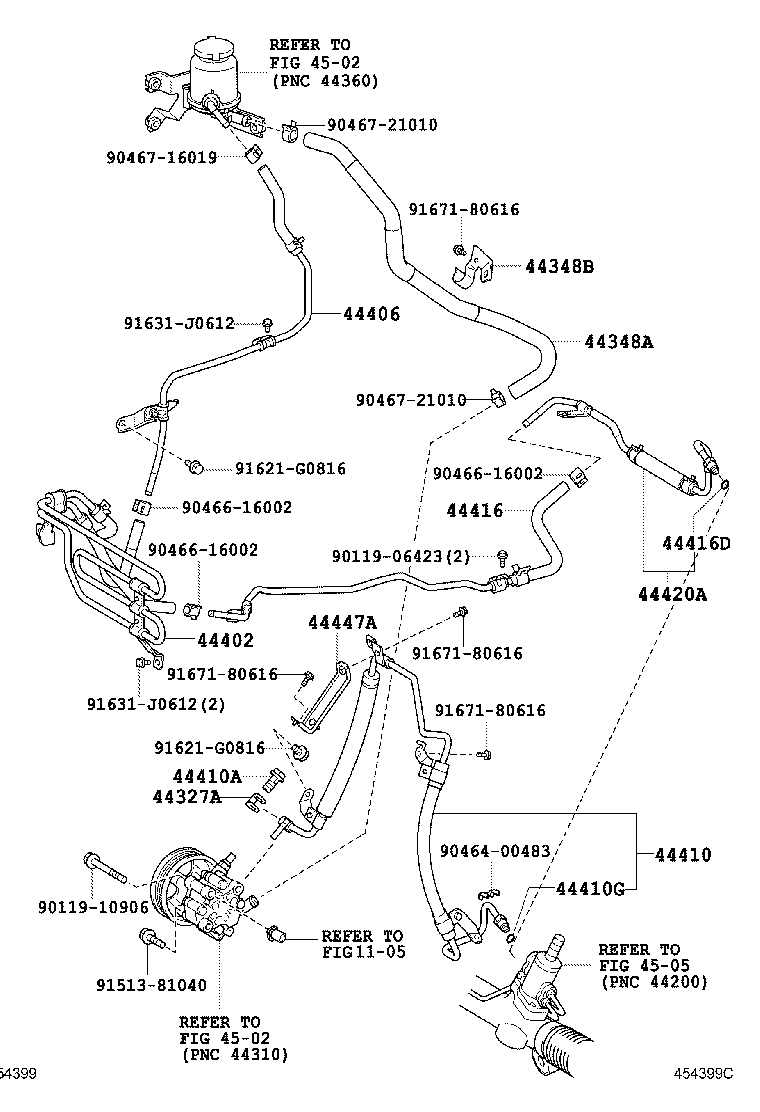

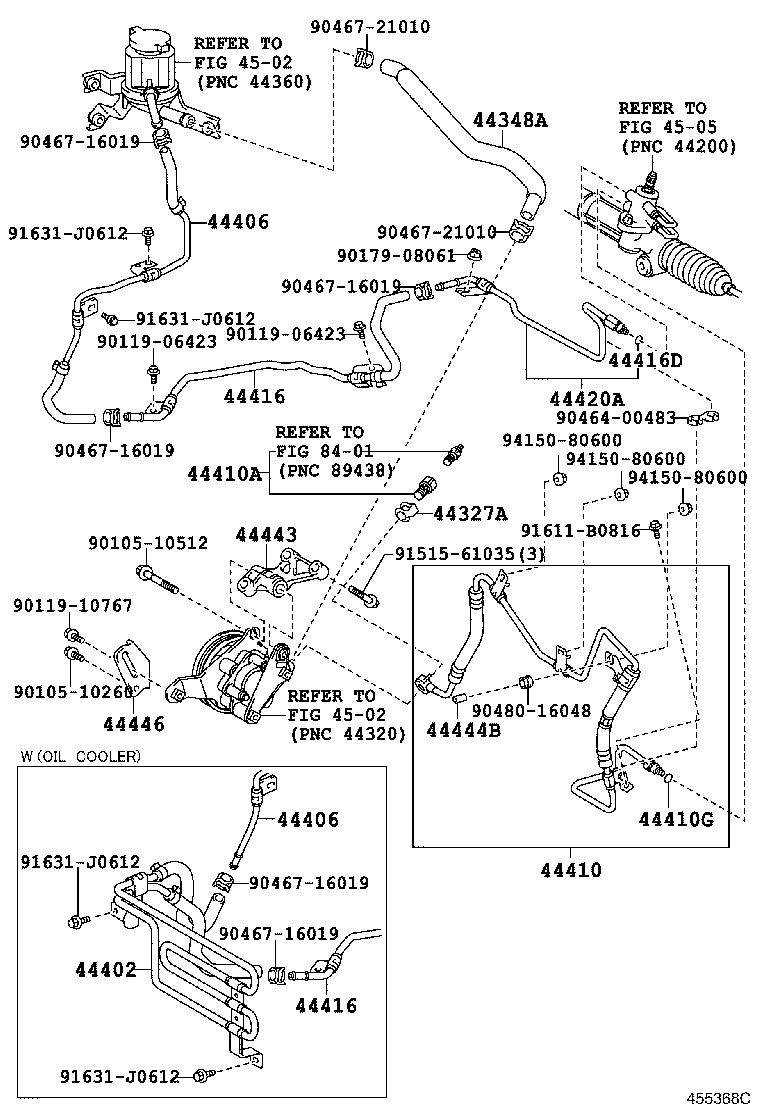

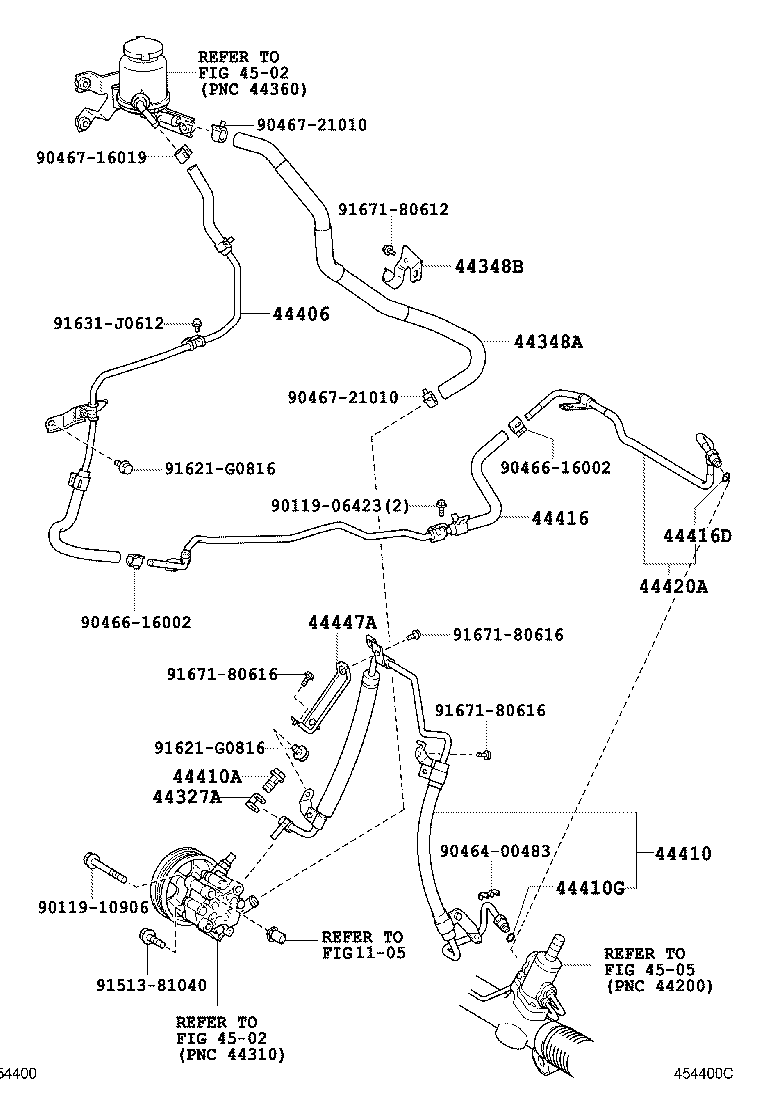

Figure 456943A 456943A 2003-02 → 2003-09 Figure 455368C 455368C 2003-09 → — Figure 454399C 454399C 2006-01 → — Figure 454400C 454400C 2006-01 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44348B Clamp(FOR OIL RESERVOIR TO PUMP HOSE)
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44410G Ring, O(FOR PRESSURE FEED TUBE)
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44416D Ring, O(FOR RETURN TUBE)
44420A Tube Assy, Return
44443 Bracket, Pump
44444B Collar (FOR PUMP REAR STAY)
44446 Strut, Adjusting
44447A Bracket, Hose Support, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
