Toyota Lexus RX330/350(JPP)

2003-02 → 2008-12 · chassis MCU3#,GSU3# · catalogue 521420 · United States

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

18 part groups · 2 illustrations

Illustrations

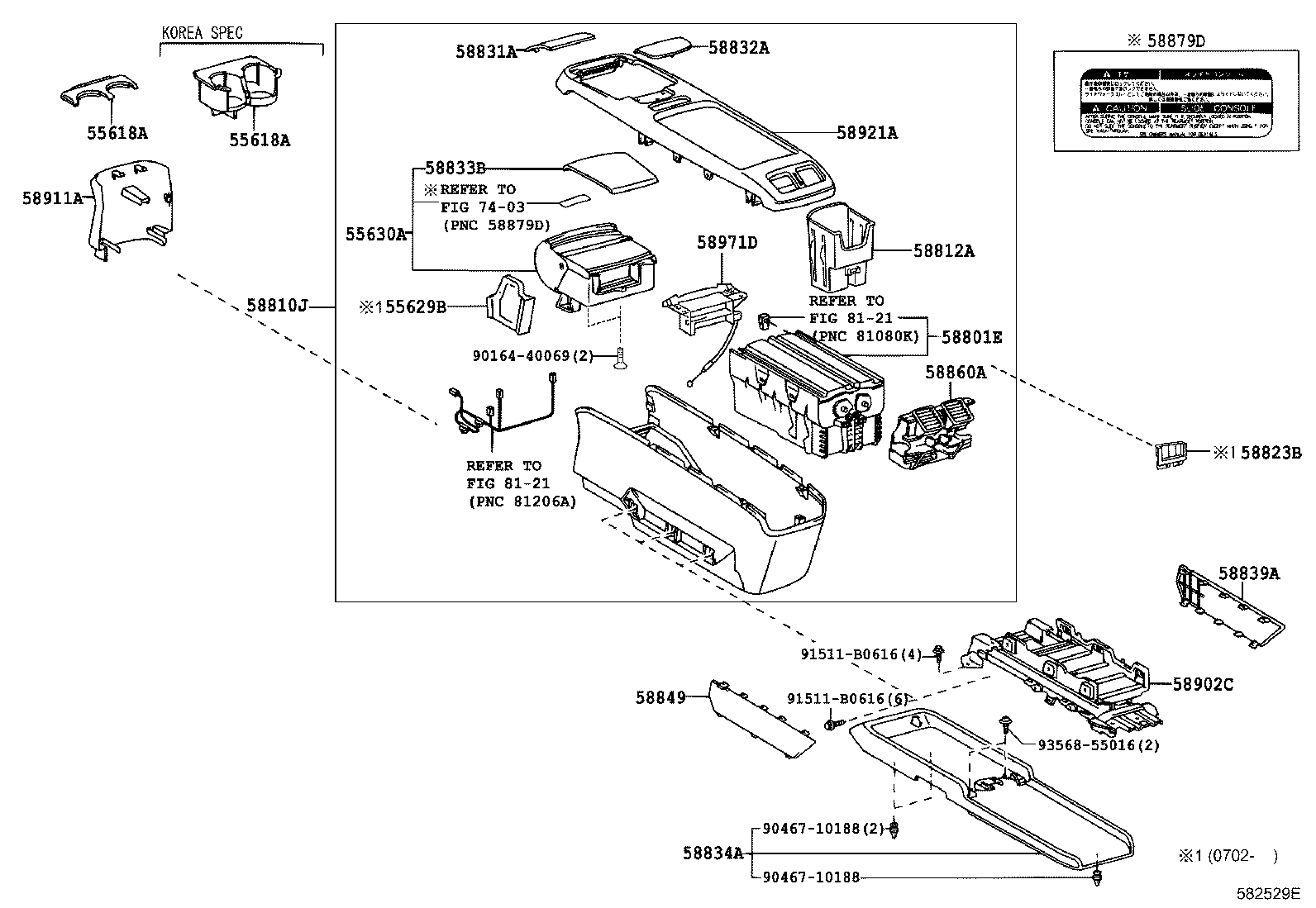

Figure 581786G 581786G 2003-02 → 2006-01 Figure 582529E 582529E 2006-01 → —

Part groups

PNCDescription
55618A Holder, Console Box Cup
55629B Rail, Instrument Panel Cup Holder
55630A Holder, Rear Console Box, Cup
58801E Box Sub-assy, Console, Upper
58810J Box Assy, Console
58812A Box, Console, Lower
58823B Box, Console Compartment
58831A Garnish, Console Upper Panel, Front
58832A Garnish, Console Upper Panel, Rear
58833B Garnish, Console Upper Panel, NO.1
58834A Cover, Console, Lower
58839A Cover, Console Box Hole
58849 Cover, Console Box Hole, NO.2
58860A Register Assy, Console Box
58902C Bracket Sub-assy, Console Box Mounting
58911A Panel, Box Side, NO.1
58921A Panel, Rear Console, Upper
58971D Lever, Console Compartment Door Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
