Toyota Lexus RX330/350(JPP)

2003-02 → 2008-12 · chassis MCU3#,GSU3# · catalogue 521420 · United States

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

23 part groups · 3 illustrations

Illustrations

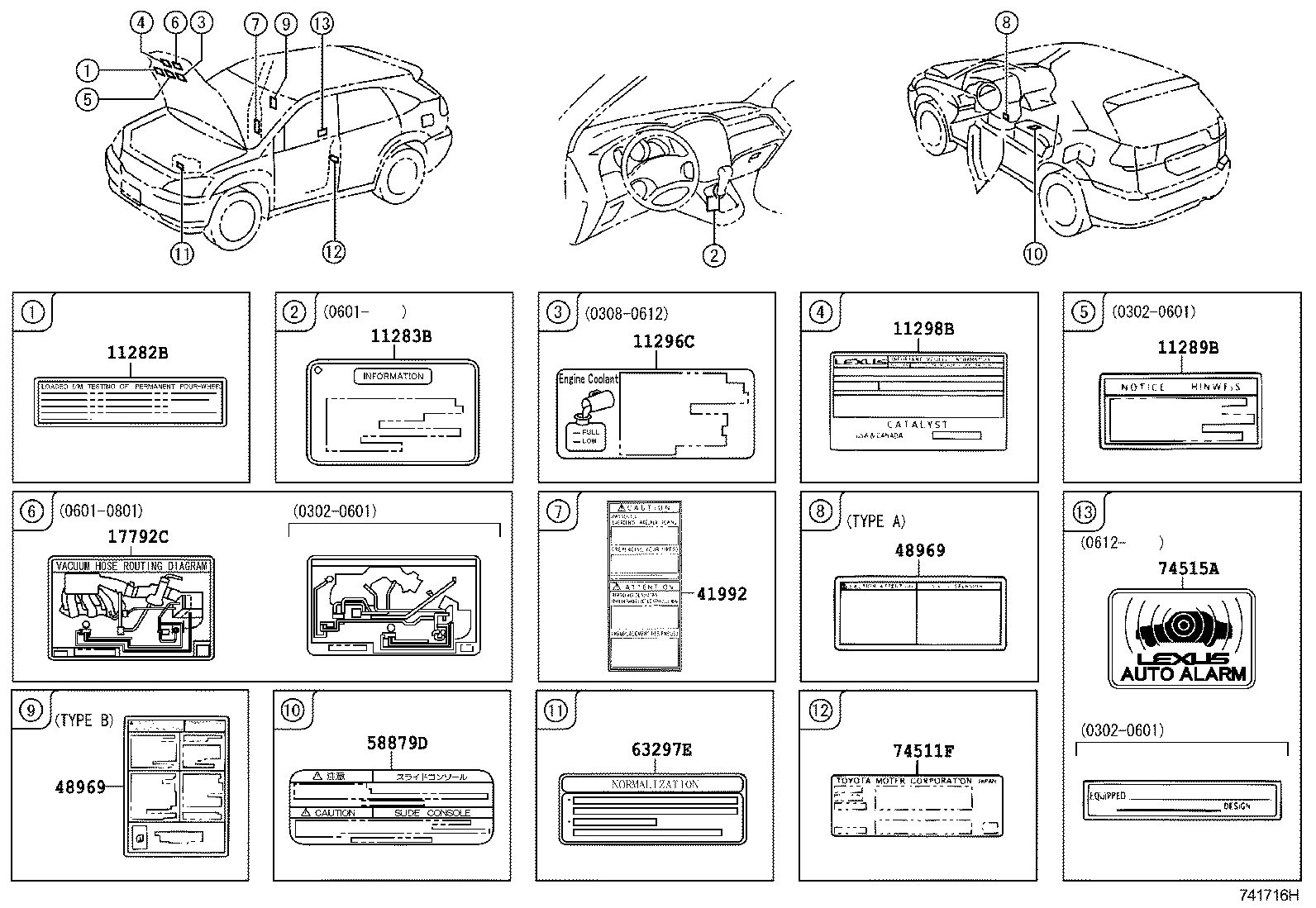

Figure 745943A 745943A 2003-02 → — Figure 741716H 741716H 2003-02 → — Figure 741810E 741810E 2003-02 → —

Part groups

PNCDescription
11282B Label, Loaded Testing Caution
11283B Label, Leak Detection Pump Information
11289B Label, Spark Plug Notice
11296C Label, Engine Service Information
11298B Label, Emission Control Information
16448A Plate, Radiator Caution
16793E Label, Cooling Fan Caution
17792C Label, Engine Vacuum Hose Information
41992 Label, Differential Notice
48969 Label, Jack UP Caution
58879D Label, Console Door Lock Caution
63297E Label, Sliding Roof Caution
69339C Label, Child Protector Information
74511F Label, Name (IDENTIFICATION LASER LABEL)
74515A Plate, Theft Warning
74528J Label, Power Back Door Caution
74559B Label, Fuel Information
74596A Label, Side Airbag Caution
74599B Label, Driver & Passenger Airbag Information
74751 Label, Tire Pressure Information
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
88723H Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
