Toyota Lexus RX330/350(JPP)

2003-02 → 2008-12 · chassis MCU3#,GSU3# · catalogue 521420 · United States

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

78 part groups · 7 illustrations

Illustrations

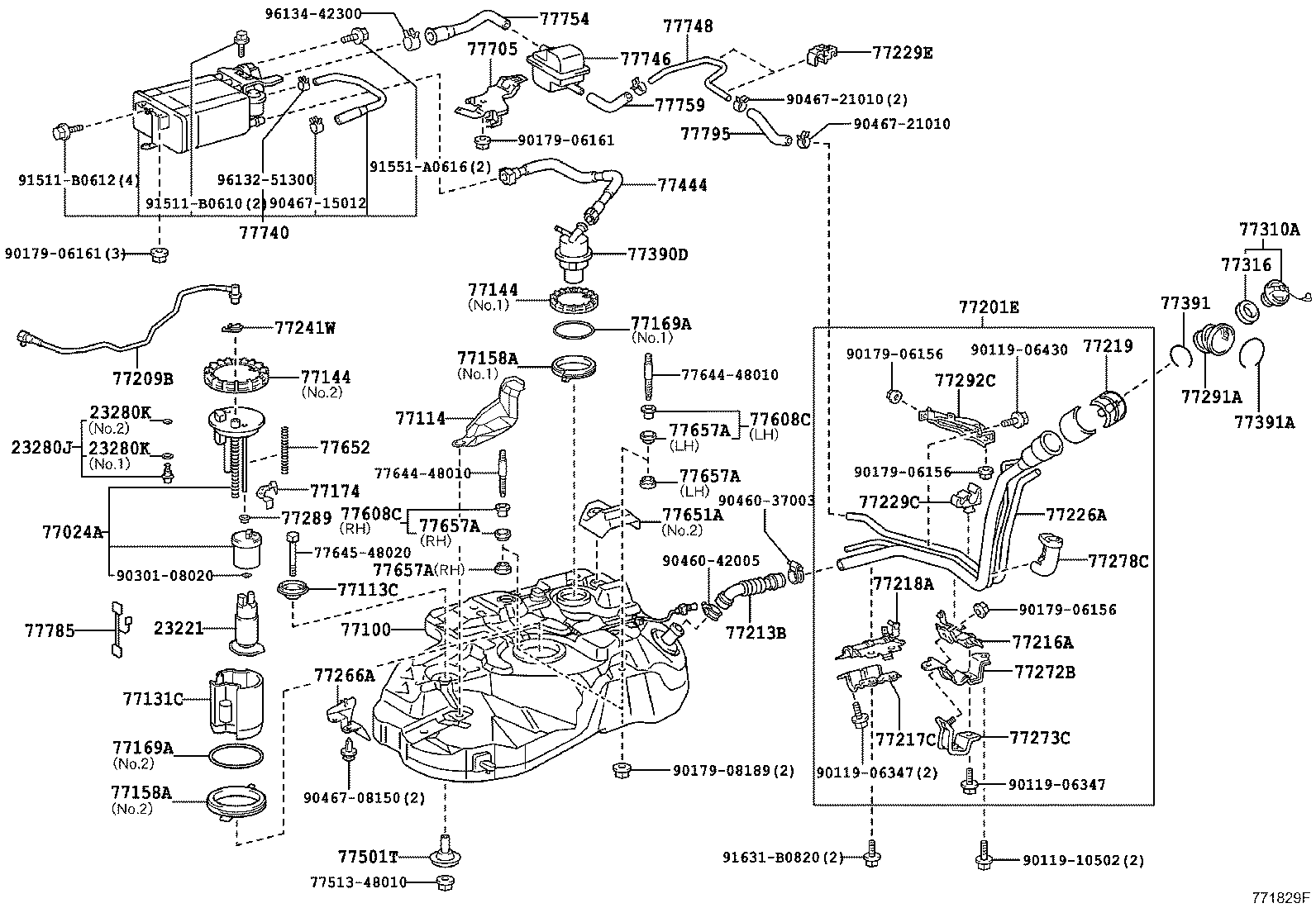

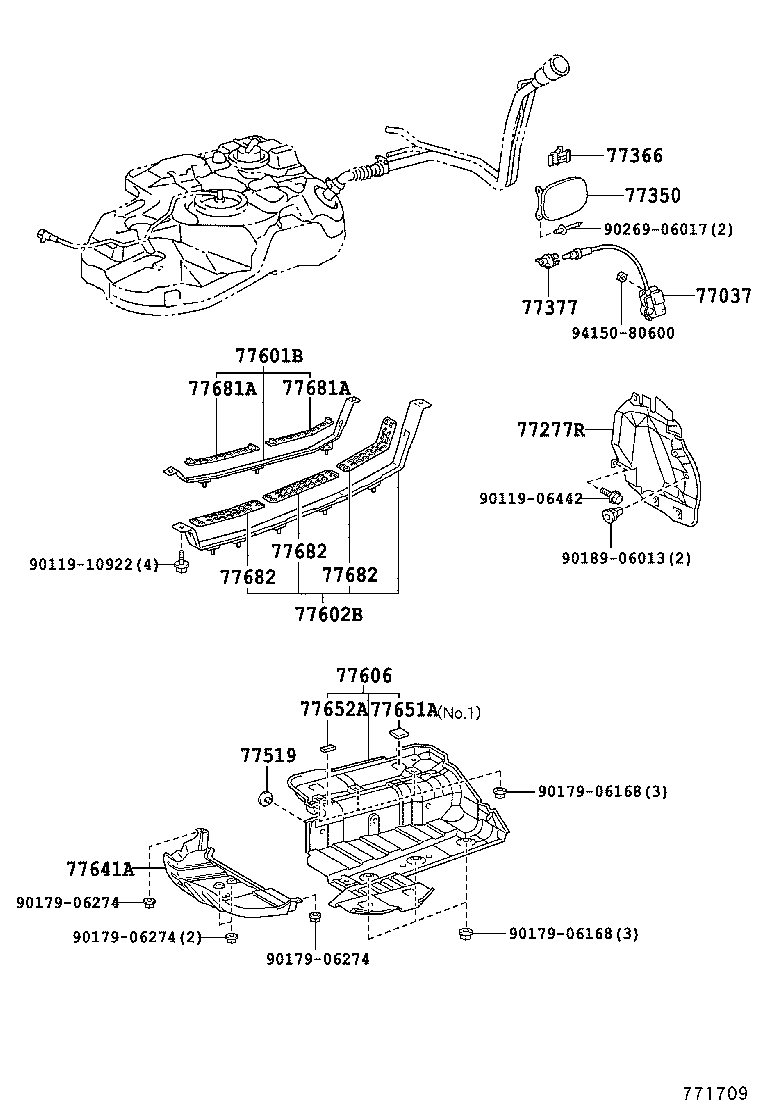

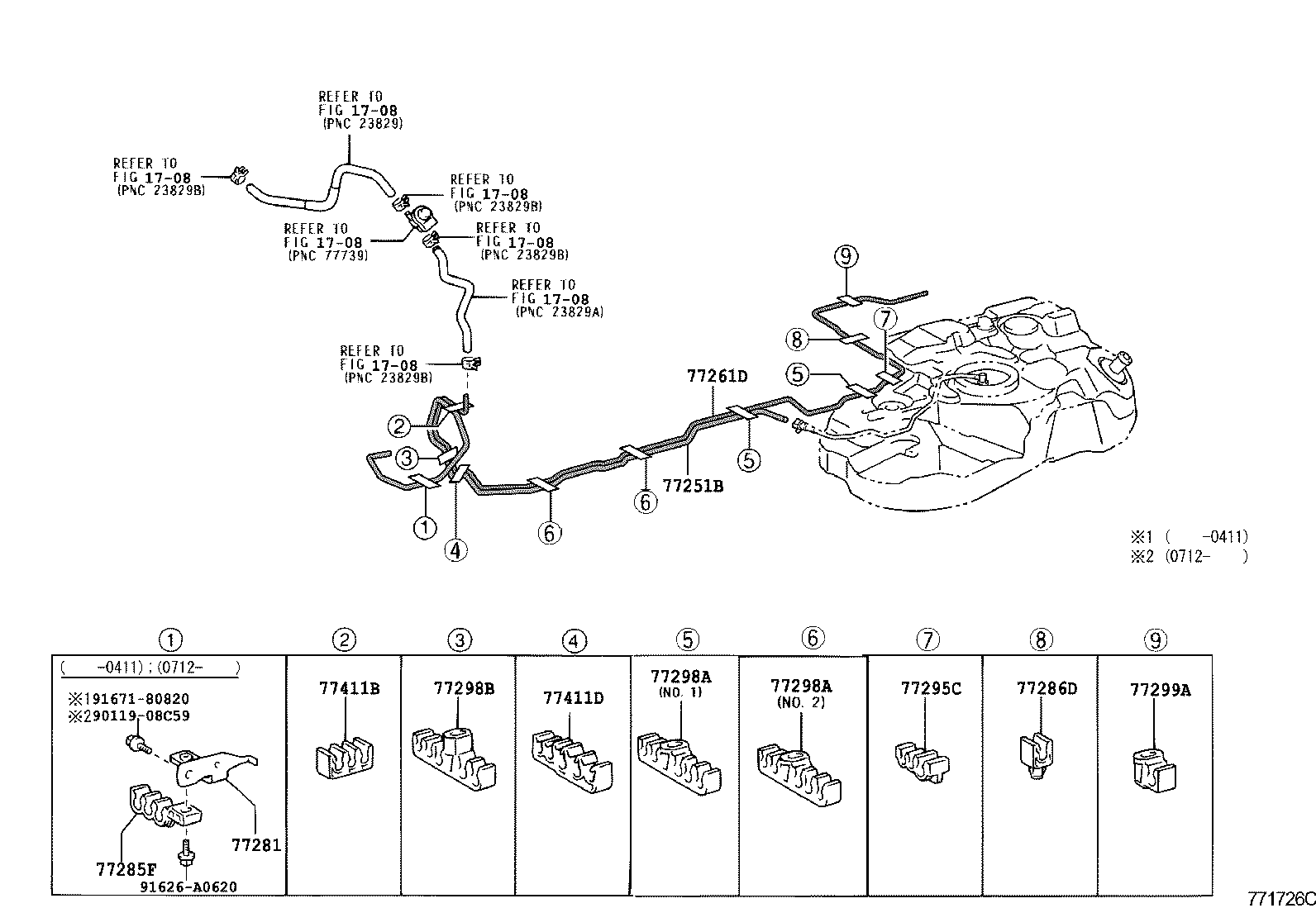

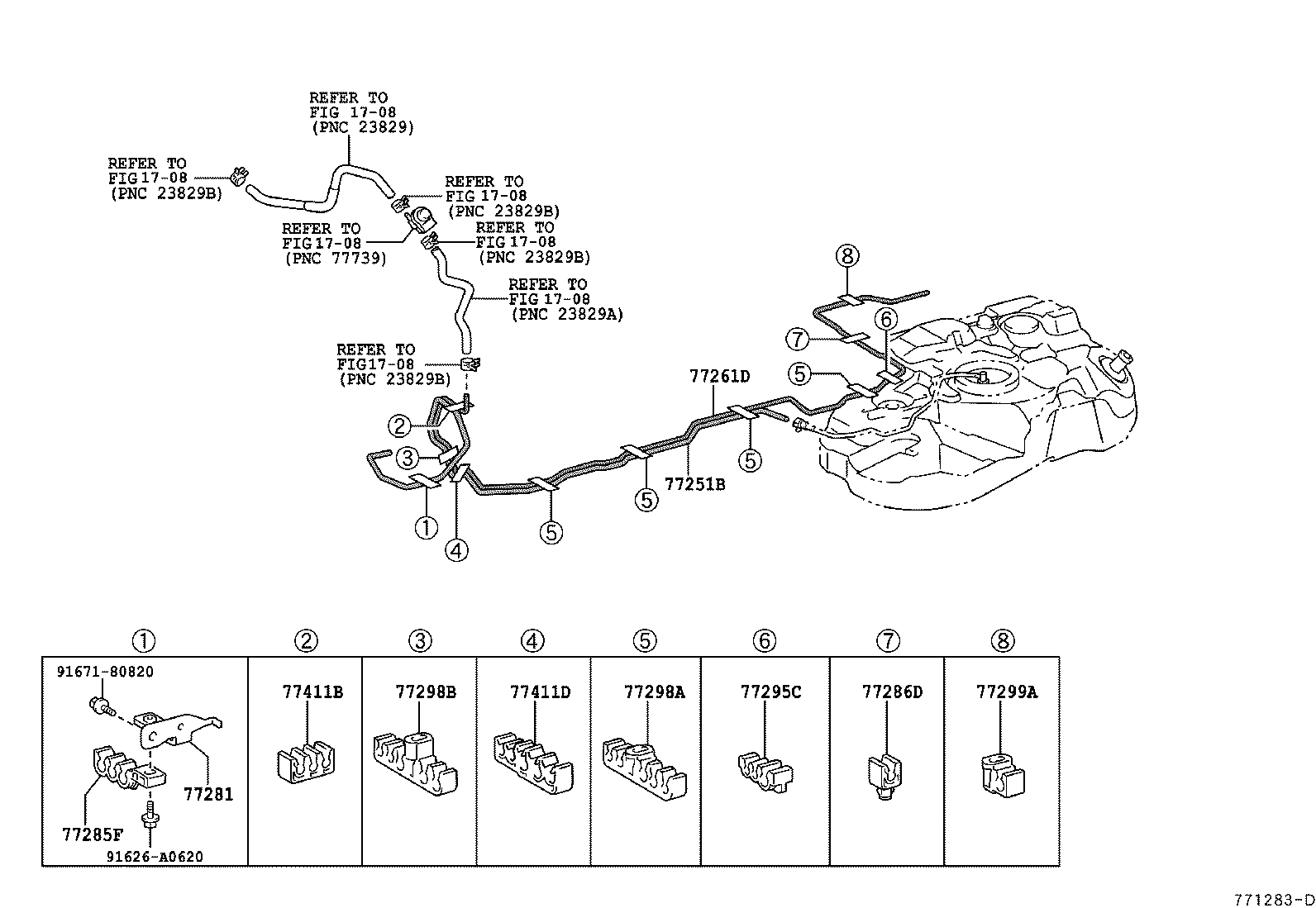

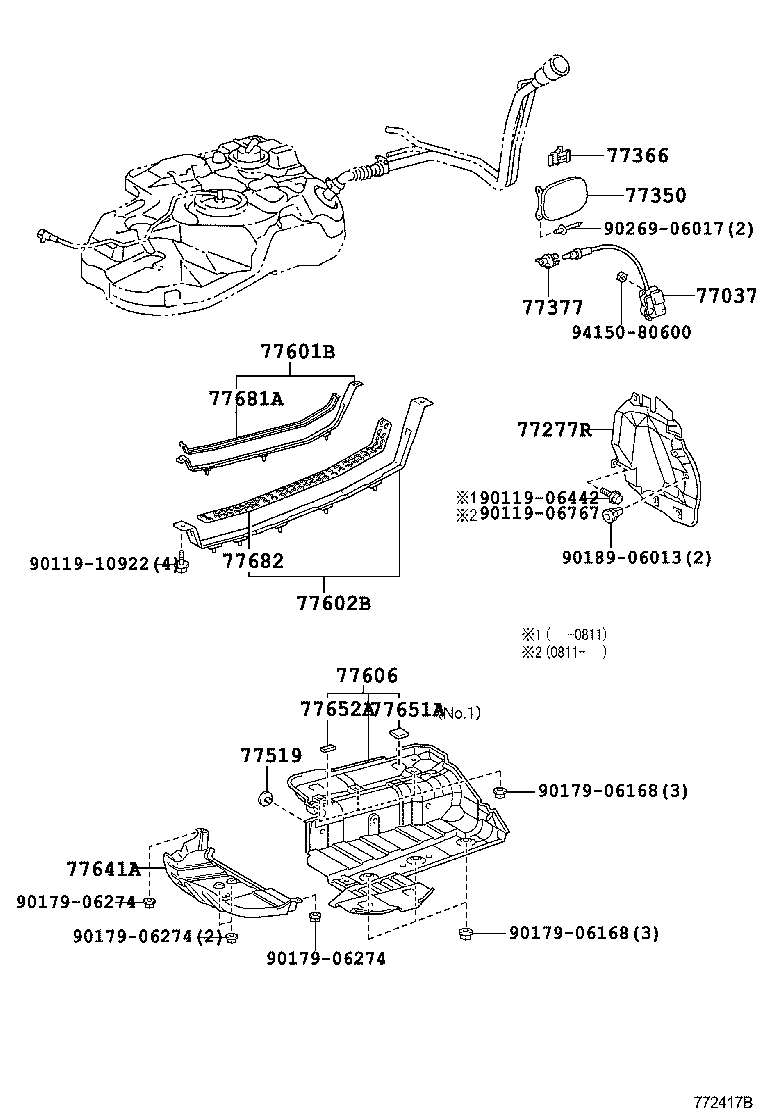

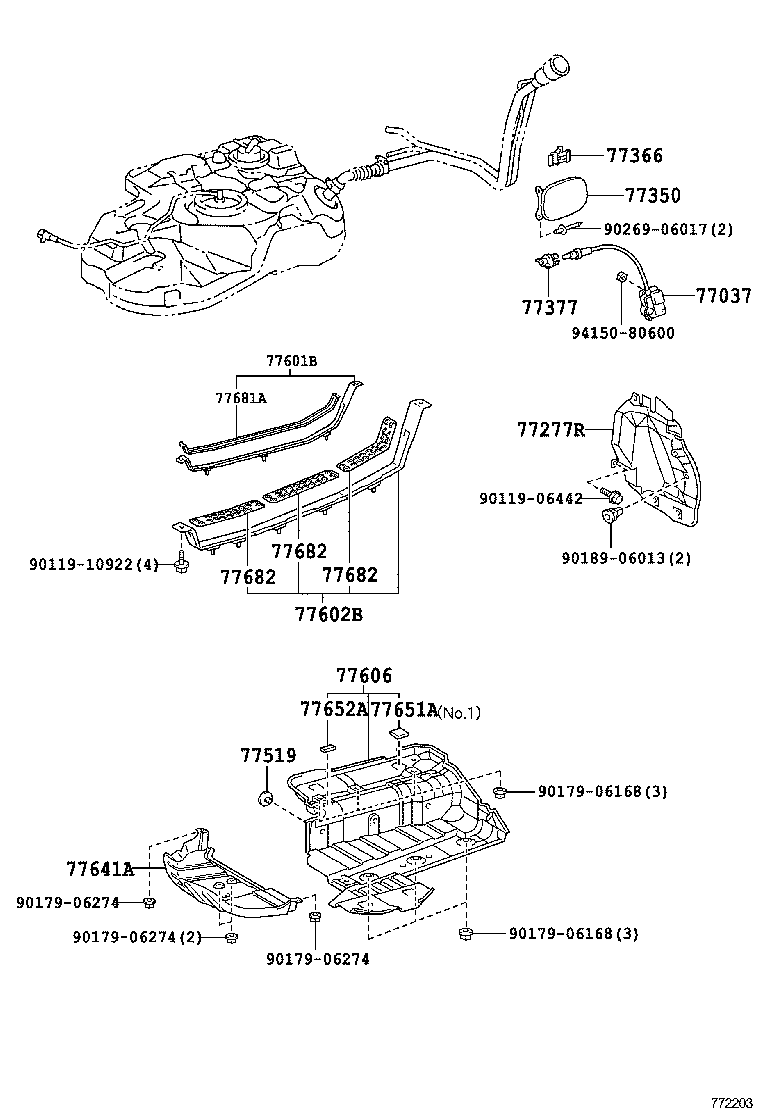

Figure 771282M 771282M 2003-02 → 2006-01 Figure 771829F 771829F 2006-01 → — Figure 771709 771709 2003-02 → 2007-05 Figure 772203 772203 2007-05 → 2008-04 Figure 772417B 772417B 2008-04 → — Figure 771283D 771283D 2003-02 → 2003-08 Figure 771726C 771726C 2003-08 → —

Part groups

PNCDescription
23217D Filter, Fuel Pump
23221 Pump, Fuel
23225A Spacer, Fuel Pump
23229A Clip(FOR FUEL PUMP FILTER)
23280J Regulator Assy, Fuel Pressure
23280K Ring, O(FOR FUEL PRESSURE REGULATOR)
23300J Filter Assy, Fuel
77024A Plate Sub-assy, Fuel Suction
77037 Lock Sub-assy, Fuel Filler Opening Lid
77100 Tank Assy, Fuel
77113C Plate, Fuel Tank Side
77114 Plate, Fuel Tank Side, Rear
77131C Sub-tank, Fuel, NO.1
77144 Retainer, Fuel Pump Gauge
77158A Support, Tank Suction Tube
77169A Gasket, Fuel Suction Tube Set
77174 Support, Fuel Suction, NO.1
77201E Pipe Sub-assy, Fuel Tank Filler
77209B Tube Sub-assy, Fuel Pump
77213B Hose, Fuel Tank TO Filler Pipe
77216A Support, Fuel Tank Filler Pipe, NO.1
77217C Support, Fuel Tank Filler Pipe, NO.2
77218A Support, Fuel Tank Filler Pipe, NO.3
77219 Cover, Fuel Tank Filler Pipe
77226A Tube, Fuel Tank Breather, NO.6
77229C Clamp, Breather Tube
77229E Clamp, Breather Tube
77241W Clip, Tube Joint
77243D Joint, Fuel Tube, NO.1
77251B Tube, Fuel Main
77261D Tube, Fuel Tank TO Canister
77266A Protector, Fuel Tube, NO.1
77272B Support, Breather Tube, NO.1
77273C Support, Breather Tube, NO.2
77277R Protector, Fuel Tank Filler Pipe
77278C Protector, Fuel Tank Filler Pipe, NO.2
77281 Bracket, Fuel Main Tube, NO.1
77285F Clamp, Fuel Tube, NO.1
77286D Clamp, Fuel Tube, NO.2
77289 Holder, Fuel Tank Pipe Setting
77291A Shield, Fuel Tank Filler Pipe
77292C Shield, Fuel Tank Filler Pipe, NO.2
77295C Grommet, Fuel Tube
77298A Clamp, Fuel Tube, NO.4
77298B Clamp, Fuel Tube, NO.4
77299A Clamp, Fuel Tube, NO.5
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77350 Lid Assy, Fuel Filler Opening
77366 Spring, Fuel Filler Opening Lid Hinge
77377 Retainer, Fuel Filler Opening Lid Lock
77390D Valve Assy, Fuel Tank Over Fill Check
77391 Ring, Fuel Inlet Box
77391A Ring, Fuel Inlet Box
77411B Support, Fuel Tube Grommet, NO.1
77411D Support, Fuel Tube Grommet, NO.2
77444 Hose, Fuel Tank Vent
77501T Bracket Sub-assy, Fuel Tank
77519 Spacer, Fuel Tank Bracket
77601B Band Sub-assy, Fuel Tank, NO.1 RH
77602B Band Sub-assy, Fuel Tank, NO.1 LH
77606 Protector Sub-assy, Fuel Tank, NO.1
77608C Cushion Set, Fuel Tank
77641A Protector, Fuel Tank, NO.1
77651A Cushion, Fuel Tank, NO.1
77652 Cushion, Fuel Tank, NO.1
77652A Cushion, Fuel Tank, NO.2
77657A Cushion, Fuel Tank, NO.5
77681A Seat, Fuel Tank Band
77682 Seat, Fuel Tank Band, LH
77705 Bracket Sub-assy, Charcoal Canister
77740 Canister Assy, Charcoal
77746 Filter, Charcoal Canister, NO.2
77748 Pipe, Charcoal Canister, NO.2
77754 Hose, Charcoal Canister Outlet, NO.1
77759 Hose, Charcoal Canister
77785 Harness, Fuel Pump
77795 Hose, Charcoal Canister Outlet, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
