Toyota Lexus RX330/350(JPP)
2003-02 → 2008-12 · chassis MCU3#,GSU3# · catalogue 521420 · United States
Supported model
Data version 2009-04

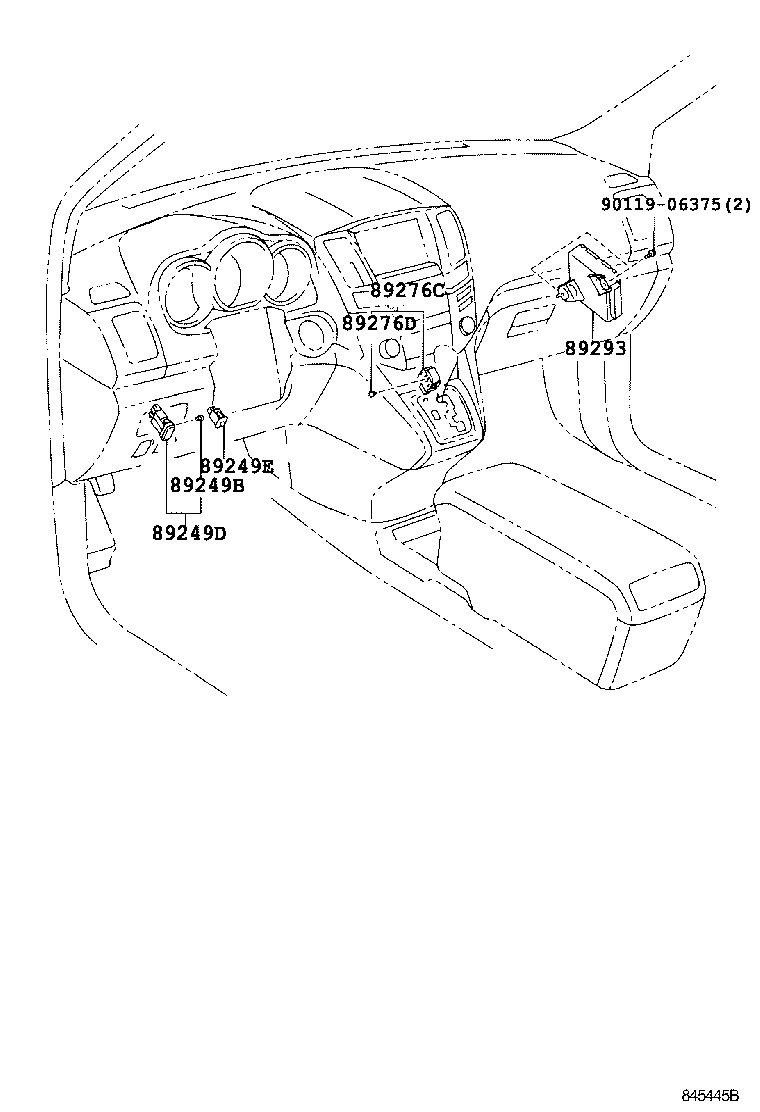

Electronic Modulated Suspension
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 89244 | Wire, Absorber Control, Rear |
| 89249B | Bulb, Absorber Control Switch |
| 89249D | Switch, Absorber Control NO.2 |
| 89249E | Switch, Height Control Off |
| 89276C | Switch, Height Control |
| 89276D | Bulb, (FOR HEIGHT CONTROL SWITCH) |
| 89293 | Computer, Suspension Control |
| 89293A | Relay, Suspension Control |
| 89405B | Sensor Sub-assy, Height Control, Front RH |
| 89406 | Sensor Sub-assy, Height Control, Front LH |
| 89407B | Sensor Sub-assy, Height Control, Rear RH |
| 89408D | Sensor Sub-assy, Height Control, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
