Toyota Lexus RX330/350(JPP)
2003-02 → 2008-12 · chassis MCU3#,GSU3# · catalogue 521420 · United States
Supported model
Data version 2009-04

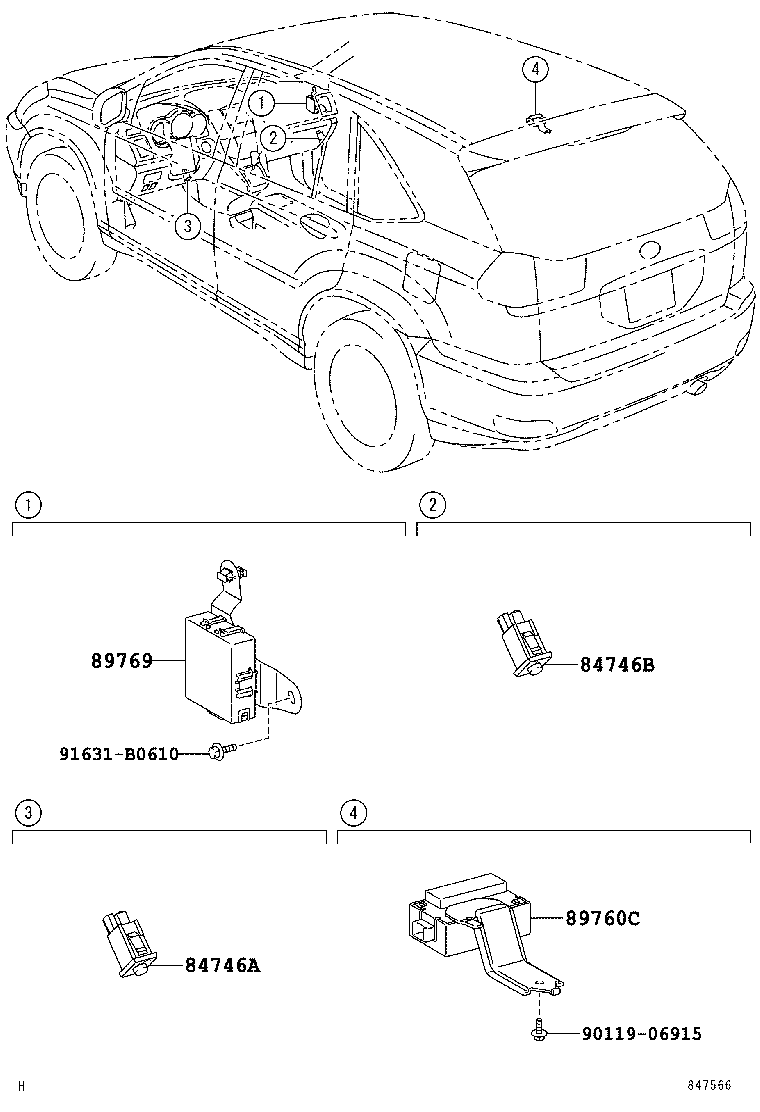

Tire Pressure Warning System
4 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 84746A | Switch, Tire Pressure Warning, NO.1 |
| 84746B | Switch, Tire Pressure Warning, NO.2 |
| 89760C | Receiver Assy, Tire Pressure Monitor |
| 89769 | Computer, Tire Pressure Monitor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
