Toyota Lexus RX330/350(JPP)
2003-02 → 2008-12 · chassis MCU3#,GSU3# · catalogue 521420 · United States
Supported model
Data version 2009-04

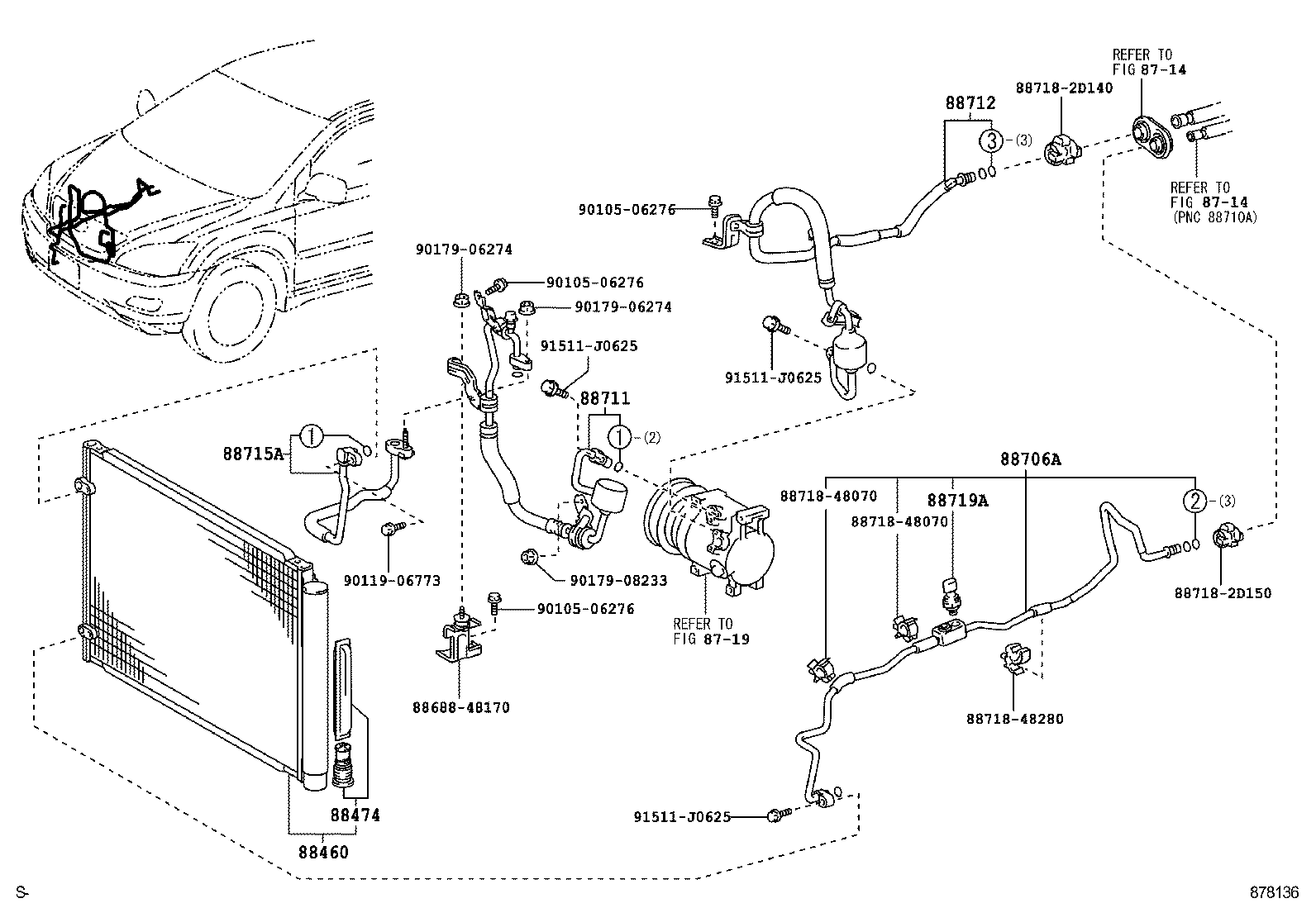

Heating & Air Conditioning - Cooler Piping
7 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 88460 | Condenser Assy, Cooler |
| 88474 | Dryer, Cooler |
| 88706A | Tube Sub-assy, Liquid, A |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88715A | Pipe, Cooler Refrigerant Discharge, A |
| 88719A | Sensor, Air Conditioner Pressure |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
