Toyota Lexus RX350/450H(Jpp
2008-12 → 2015-09 · chassis GGL1#,GYL1# · catalogue 521430 · United States
Supported model
Data version 2016-03

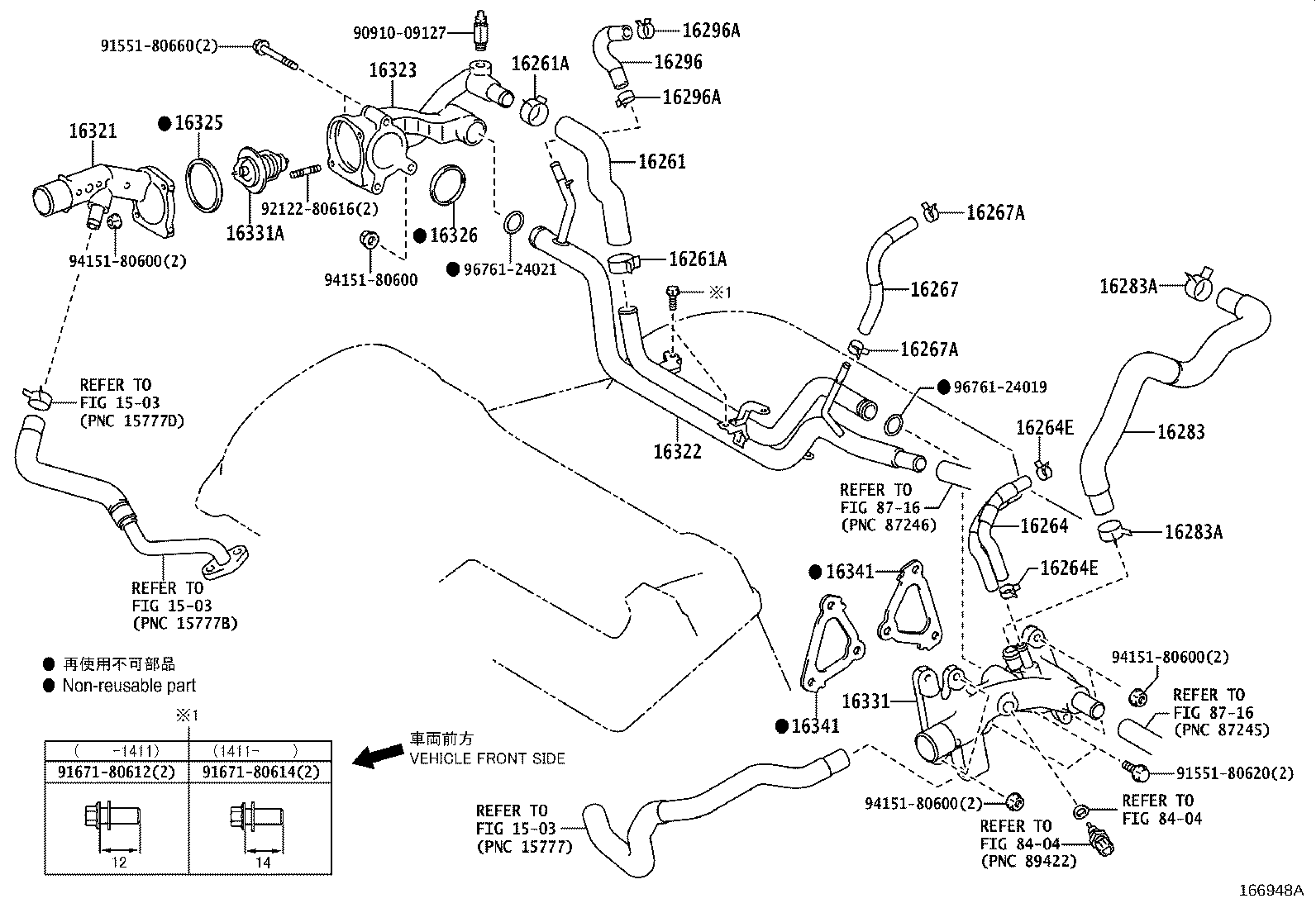

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16261 — Hose, Water By-pass | ||||
| 16261-31050 note |
Hose, Water By-pass
2008-12 → 2010-08
ended
|
2GRFE GGL1# JPP | — | |
| 16261-31050 note |
Hose, Water By-pass
2008-12 → 2010-08
ended
|
2GRFE GGL1# JPP | — | |
| 16261-31050 note |
Hose, Water By-pass
2008-12 → 2012-03
ended
|
2GRFE GGL1# JPP | — | |
| 16261-31050 |
Hose, Water By-pass
2008-12 → 2012-03
ended
|
2GR# GGL1#,GYL1# JPP | — | |
| 16261-31050 note |
Hose, Water By-pass
2008-12 → 2012-03
ended
|
2GR# GGL15,GYL15 JPP | — | |
| 16261-31050 |
Hose, Water By-pass
2012-03 → —
|
2GR# GGL1#,GYL1# JPP | — | |
| 16261-31050 note |
Hose, Water By-pass
2012-03 → —
|
2GR# GGL15,GYL15 JPP | — | |
| 16261-31050 note |
Hose, Water By-pass
2012-03 → —
|
2GRFE GGL1# JPP | — | |
| 16261A — Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) | ||||
| 96136-42701 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2008-12 → 2012-03
ended
|
2GR# GGL1#,GYL1# JPP | — | |
| 96136-42701 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2012-03 → —
|
2GR# GGL1#,GYL1# JPP | — | |
| 16264 — Hose, Water By-pass, NO.2 | ||||
| 16264-31081 |
Hose, Water By-pass, NO.2
2008-12 → 2012-03
ended
|
2GR# GGL1#,GYL1# JPP | — | |
| 16264-31081 |
Hose, Water By-pass, NO.2
2012-03 → —
|
2GR# GGL1#,GYL1# JPP | — | |
| 16264E — Clip(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
Clip(FOR WATER BY-PASS HOSE NO.2)
2008-12 → 2012-03
ended
|
2GR# GGL1#,GYL1# JPP | — | |
| 96137-41501 |
Clip(FOR WATER BY-PASS HOSE NO.2)
2012-03 → —
|
2GR# GGL1#,GYL1# JPP | — | |
| 16267 — Hose, Water By-pass, NO.3 | ||||
| 16267-31040 note |
Hose, Water By-pass, NO.3
2008-12 → 2012-03
ended
|
2GRFE GGL1# JPP | — | |
| 16267-31040 note |
Hose, Water By-pass, NO.3
2008-12 → 2012-03
ended
|
2GR# GGL15,GYL15 JPP | — | |
| 16267-31040 note |
Hose, Water By-pass, NO.3
2008-12 → 2010-08
ended
|
2GRFE GGL1# JPP | — | |
| 16267-31040 note |
Hose, Water By-pass, NO.3
2008-12 → 2010-08
ended
|
2GRFE GGL1# JPP | — | |
| 16267-31040 |
Hose, Water By-pass, NO.3
2008-12 → 2012-03
ended
|
2GR# GGL1#,GYL1# JPP | — | |
| 16267-31040 |
Hose, Water By-pass, NO.3
2012-03 → —
|
2GR# GGL1#,GYL1# JPP | — | |
| 16267-31040 note |
Hose, Water By-pass, NO.3
2012-03 → —
|
2GR# GGL15,GYL15 JPP | — | |
| 16267-31040 note |
Hose, Water By-pass, NO.3
2012-03 → —
|
2GRFE GGL1# JPP | — | |
| 16267A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96137-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2008-12 → 2012-03
ended
|
2GR# GGL1#,GYL1# JPP | — | |
| 96137-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2012-03 → —
|
2GR# GGL1#,GYL1# JPP | — | |
| 16283 — Hose, Water By-pass, NO.6 | ||||
| 16283-31020 |
Hose, Water By-pass, NO.6
2009-03 → 2012-03
ended
|
2GRFXE GYL1# JPP | — | |
| 16283-31020 |
Hose, Water By-pass, NO.6
2012-03 → —
|
2GRFXE GYL1# JPP | — | |
| 16283A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96136-52201 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2009-03 → 2012-03
ended
|
2GRFXE GYL1# JPP | — | |
| 96136-52201 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2012-03 → —
|
2GRFXE GYL1# JPP | — | |
| 16296 — Hose, Water By-pass, NO.8 | ||||
| 16296-31060 |
Hose, Water By-pass, NO.8
2009-03 → 2012-03
ended
|
2GRFXE GYL1# JPP | — | |
| 16296-31060 |
Hose, Water By-pass, NO.8
2012-03 → —
|
2GRFXE GYL1# JPP | — | |
| 16296A — Clip(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96136-52201 |
Clip(FOR WATER BY-PASS HOSE NO.8)
2009-03 → 2012-03
ended
|
2GRFXE GYL1# JPP | — | |
| 96136-52201 |
Clip(FOR WATER BY-PASS HOSE NO.8)
2012-03 → —
|
2GRFXE GYL1# JPP | — | |
| 16321 — Inlet, Water | ||||
| 16321-31011 |
Inlet, Water
2008-12 → 2009-10
ended
|
2GR# GGL1#,GYL1# JPP | — | |
| 16321-31020 note |
Inlet, Water
2009-03 → 2012-03
ended
|
2GRFXE GYL15 JPP | — | |
| 16321-31030 |
Inlet, Water
2009-10 → 2012-03
ended
|
2GR# GGL1#,GYL1# JPP | — | |
| 16321-31020 note |
Inlet, Water
2012-03 → —
|
2GRFXE GYL15 JPP | — | |
| 16321-31030 |
Inlet, Water
2012-03 → —
|
2GR# GGL1#,GYL1# JPP | — | |
| 16322 — Pipe, Water Inlet | ||||
| 16322-31010 |
Pipe, Water Inlet
2008-12 → 2012-03
ended
|
2GRFE GGL1# JPP | — | |
| 16322-31020 note |
Pipe, Water Inlet
2008-12 → 2010-08
ended
|
2GRFE GGL1# JPP | — | |
| 16322-31020 note |
Pipe, Water Inlet
2008-12 → 2012-03
ended
|
2GRFE GGL15 JPP | — | |
| 16322-31030 note |
Pipe, Water Inlet
2008-12 → 2010-08
ended
|
2GRFE GGL1# JPP | — | |
| 16322-31030 note |
Pipe, Water Inlet
2008-12 → 2012-03
ended
|
2GRFE GGL1# JPP | — | |
| 16322-31040 |
Pipe, Water Inlet
2009-03 → 2012-03
ended
|
2GRFXE GYL1# JPP | — | |
| 16322-31050 note |
Pipe, Water Inlet
2009-03 → 2012-03
ended
|
2GRFXE GYL15 JPP | — | |
| 16322-31010 |
Pipe, Water Inlet
2012-03 → —
|
2GRFE GGL1# JPP | — | |
| 16322-31020 note |
Pipe, Water Inlet
2012-03 → —
|
2GRFE GGL15 JPP | — | |
| 16322-31030 note |
Pipe, Water Inlet
2012-03 → —
|
2GRFE GGL1# JPP | — | |
| 16322-31040 |
Pipe, Water Inlet
2012-03 → —
|
2GRFXE GYL1# JPP | — | |
| 16322-31050 note |
Pipe, Water Inlet
2012-03 → —
|
2GRFXE GYL15 JPP | — | |
| 16323 — Housing, Water Inlet | ||||
| 16323-31040 |
Housing, Water Inlet
2008-12 → 2012-03
ended
|
2GR# GGL1#,GYL1# JPP | — | |
| 16323-31040 |
Housing, Water Inlet
2012-03 → —
|
2GR# GGL1#,GYL1# JPP | — | |
| 16325 — Gasket, Water Inlet Housing, NO.1 | ||||
| 16325-62010 |
Gasket, Water Inlet Housing, NO.1
2008-12 → 2012-03
ended
|
2GR# GGL1#,GYL1# JPP | — | |
| 16325-62010 |
Gasket, Water Inlet Housing, NO.1
2012-03 → —
|
2GR# GGL1#,GYL1# JPP | — | |
| 16326 — Gasket, Water Inlet Housing, NO.2 | ||||
| 16325-31010 |
Gasket, Water Inlet Housing, NO.2
2008-12 → 2012-03
ended
|
2GR# GGL1#,GYL1# JPP | — | |
| 16325-31010 |
Gasket, Water Inlet Housing, NO.2
2012-03 → —
|
2GR# GGL1#,GYL1# JPP | — | |
| 16331 — Outlet, Water | ||||
| 16331-31140 |
Outlet, Water
2008-12 → 2012-03
ended
|
2GRFE GGL1# JPP | — | |
| 16331-31150 note |
Outlet, Water
2008-12 → 2012-03
ended
|
2GRFE GGL1# JPP | — | |
| 16331-31180 |
Outlet, Water
2009-03 → 2012-03
ended
|
2GRFXE GYL1# JPP | — | |
| 16331-31190 note |
Outlet, Water
2009-03 → 2012-03
ended
|
2GRFXE GYL15 JPP | — | |
| 16331-31140 |
Outlet, Water
2012-03 → —
|
2GRFE GGL1# JPP | — | |
| 16331-31150 note |
Outlet, Water
2012-03 → —
|
2GRFE GGL1# JPP | — | |
| 16331-31180 |
Outlet, Water
2012-03 → —
|
2GRFXE GYL1# JPP | — | |
| 16331-31190 note |
Outlet, Water
2012-03 → —
|
2GRFXE GYL15 JPP | — | |
| 16331A — Thermostat | ||||
| 90916-03140 note |
Thermostat
2008-12 → 2012-03
ended
|
2GR# GGL1#,GYL1# JPP | — | |
| 90916-03140 note |
Thermostat
2012-03 → —
|
2GR# GGL1#,GYL1# JPP | — | |
| 16341 — Gasket, Water Outlet | ||||
| 16341-31010 |
Gasket, Water Outlet
2008-12 → 2012-03
ended
|
2GR# GGL1#,GYL1# JPP | — | |
| 16341-31010 |
Gasket, Water Outlet
2012-03 → —
|
2GR# GGL1#,GYL1# JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
