Toyota Lexus RX350/450H(Jpp
2008-12 → 2015-09 · chassis GGL1#,GYL1# · catalogue 521430 · United States
Supported model
Data version 2016-03

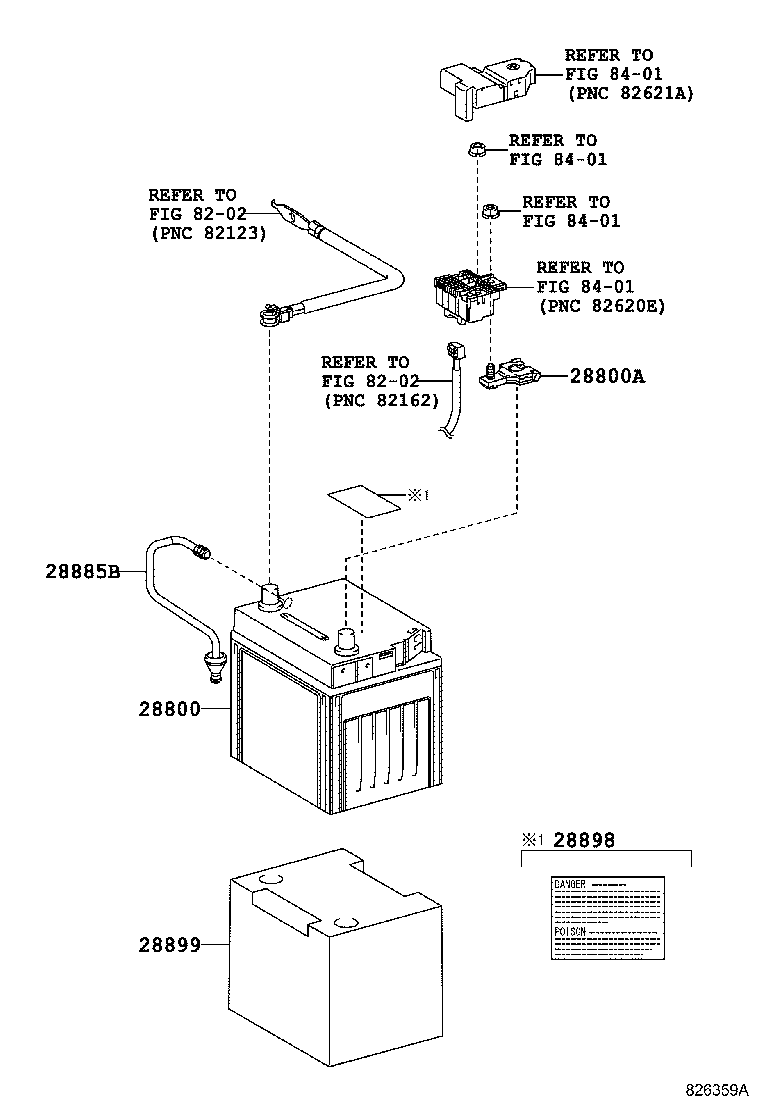

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28800 — Battery | ||||
| 28800-31290 note |
Battery
2009-03 → 2012-03
ended
|
2GRFXE GYL1# JPP | — | |
| 28800-38080 note |
Battery
2008-12 → 2012-03
ended
|
2GRFE GGL1# JPP | — | |
| 28800-31290 note |
Battery
2012-03 → 2015-09
ended
|
2GRFXE GYL1# JPP | — | |
| 28800-38080 note |
Battery
2012-03 → 2015-09
ended
|
2GRFE GGL1# JPP | — | |
| 28800A — Terminal, Battery Positive | ||||
| 90982-05054 |
Terminal, Battery Positive
2009-03 → 2012-03
ended
|
2GRFXE GYL1# JPP | — | |
| 90982-05062 |
Terminal, Battery Positive
2008-12 → 2012-03
ended
|
2GRFE GGL1# JPP | — | |
| 90982-05054 |
Terminal, Battery Positive
2012-03 → —
|
2GRFXE GYL1# JPP | — | |
| 90982-05062 |
Terminal, Battery Positive
2012-03 → —
|
2GRFE GGL1# JPP | — | |
| 28885B — Hose, Battery | ||||
| 28885-31050 |
Hose, Battery
2009-03 → 2012-03
ended
|
2GRFXE GYL1# JPP | — | |
| 28885-31050 |
Hose, Battery
2012-03 → —
|
2GRFXE GYL1# JPP | — | |
| 28898 — Plate, Battery | ||||
| 28897-38010 note |
Plate, Battery
2008-12 → 2010-08
ended
|
2GR# GGL10,GYL10 JPP | — | |
| 28897-38010 note |
Plate, Battery
2008-12 → 2011-08
ended
|
2GR# GGL15,GYL15 JPP | — | |
| 28897-46020 note |
Plate, Battery
2011-08 → 2012-03
ended
|
2GR# GGL15,GYL15 JPP | — | |
| 28898-20010 |
Plate, Battery
2008-12 → 2012-03
ended
|
2GRFE GGL1# JPP | — | |
| 28897-46020 note |
Plate, Battery
2012-03 → —
|
2GR# GGL15,GYL15 JPP | — | |
| 28898-20010 |
Plate, Battery
2012-03 → 2015-09
ended
|
2GRFE GGL1# JPP | — | |
| 28899 — Insulator, Battery | ||||
| 28899-31100 |
Insulator, Battery
2009-03 → 2012-03
ended
|
2GRFXE GYL1# JPP | — | |
| 28899-31100 |
Insulator, Battery
2012-03 → —
|
2GRFXE GYL1# JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
