Toyota Lexus RX350/450H(Jpp
2008-12 → 2015-09 · chassis GGL1#,GYL1# · catalogue 521430 · United States
Supported model
Data version 2016-03

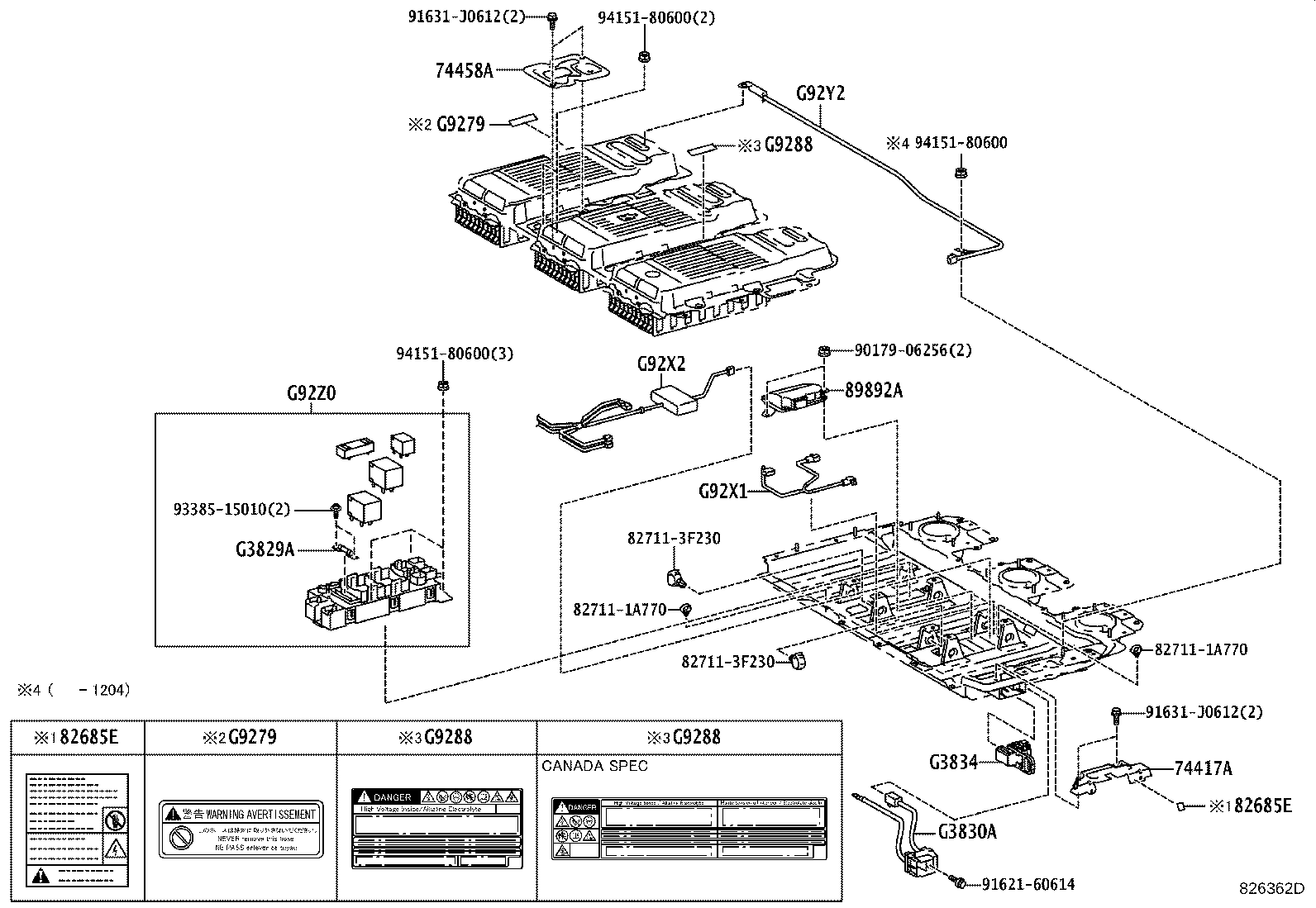

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 74417A — Bracket, Battery Carrier | ||||
| 74417-48040 |
Bracket, Battery Carrier
2009-03 → 2012-03
ended
|
GYL1# JPP | — | |
| 74417-48040 |
Bracket, Battery Carrier
2012-03 → —
|
GYL1# JPP | — | |
| 74458A — Lid, Battery Cover, NO.1 | ||||
| 74458-48020 |
Lid, Battery Cover, NO.1
2009-03 → 2012-03
ended
|
GYL1# JPP | — | |
| 74458-48020 |
Lid, Battery Cover, NO.1
2012-03 → —
|
GYL1# JPP | — | |
| 82685E — Plate, Service Plug Caution | ||||
| 82685-47090 |
Plate, Service Plug Caution
2009-03 → 2012-03
ended
|
GYL1# JPP | — | |
| 82685-47090 |
Plate, Service Plug Caution
2012-03 → —
|
GYL1# JPP | — | |
| 89892A — Sensor, Battery Voltage | ||||
| 89892-48020 |
Sensor, Battery Voltage
2009-03 → 2012-03
ended
|
GYL1# JPP | — | |
| 89892-48020 |
Sensor, Battery Voltage
2012-03 → —
|
GYL1# JPP | — | |
| G3829A — Fuse, Electric Vehicle | ||||
| 90982-11051 note |
Fuse, Electric Vehicle
2009-03 → 2012-03
ended
|
GYL1# JPP | — | |
| 90982-11051 note |
Fuse, Electric Vehicle
2012-03 → —
|
GYL1# JPP | — | |
| G3830A — Plug Assy, Electric Vehicle Battery | ||||
| G3830-48020 |
Plug Assy, Electric Vehicle Battery
2009-03 → 2012-03
ended
|
GYL1# JPP | — | |
| G3830-48020 |
Plug Assy, Electric Vehicle Battery
2012-03 → —
|
GYL1# JPP | — | |
| G3834 — Grip, Service Plug | ||||
| G3834-48010 |
Grip, Service Plug
2009-03 → 2012-03
ended
|
GYL1# JPP | — | |
| G3834-48010 |
Grip, Service Plug
2012-03 → —
|
GYL1# JPP | — | |
| G9279 — Label, Battery Caution, NO.4 | ||||
| G9279-47040 |
Label, Battery Caution, NO.4
2009-03 → 2012-03
ended
|
GYL1# JPP | — | |
| G9279-47040 |
Label, Battery Caution, NO.4
2012-03 → —
|
GYL1# JPP | — | |
| G9288 — Label, Battery Charging Notice | ||||
| G9288-48020 |
Label, Battery Charging Notice
2009-03 → 2012-03
ended
|
GYL1# JPP | — | |
| G9288-48030 note |
Label, Battery Charging Notice
2009-03 → 2010-08
ended
|
GYL10 JPP | — | |
| G9288-48030 note |
Label, Battery Charging Notice
2009-03 → 2012-03
ended
|
GYL15 JPP | — | |
| G9288-48020 |
Label, Battery Charging Notice
2012-03 → —
|
GYL1# JPP | — | |
| G9288-48030 note |
Label, Battery Charging Notice
2012-03 → —
|
GYL15 JPP | — | |
| G9288-48040 note |
Label, Battery Charging Notice
2012-03 → —
|
GYL15 JPP | — | |
| G92X1 — Wire, Hybrid Battery Pack, NO.1 | ||||
| G92X1-48010 |
Wire, Hybrid Battery Pack, NO.1
2009-03 → 2012-03
ended
|
GYL1# JPP | — | |
| G92X1-48010 |
Wire, Hybrid Battery Pack, NO.1
2012-03 → —
|
GYL1# JPP | — | |
| G92X2 — Wire, HV Battery Pack, NO.2 | ||||
| G92X2-48010 |
Wire, HV Battery Pack, NO.2
2009-03 → 2012-03
ended
|
GYL1# JPP | — | |
| G92X2-48010 |
Wire, HV Battery Pack, NO.2
2012-03 → —
|
GYL1# JPP | — | |
| G92Y2 — Cable, HV Battery Pack, NO.2 | ||||
| G92Y2-48010 |
Cable, HV Battery Pack, NO.2
2009-03 → 2012-03
ended
|
GYL1# JPP | — | |
| G92Y2-48010 |
Cable, HV Battery Pack, NO.2
2012-03 → —
|
GYL1# JPP | — | |
| G92Z0 — Block Assy, HV Battery Junction | ||||
| G92Z0-48010 |
Block Assy, HV Battery Junction
2009-03 → 2010-07
ended
|
GYL1# JPP | — | |
| G92Z0-48011 |
Block Assy, HV Battery Junction
2010-08 → 2012-03
ended
|
GYL1# JPP | — | |
| G92Z0-48011 |
Block Assy, HV Battery Junction
2012-03 → —
|
GYL1# JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
